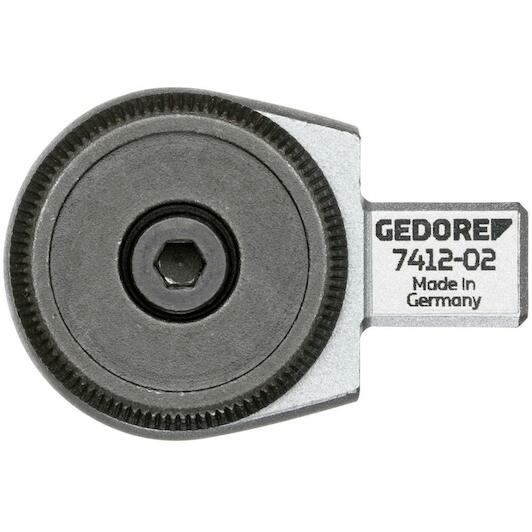

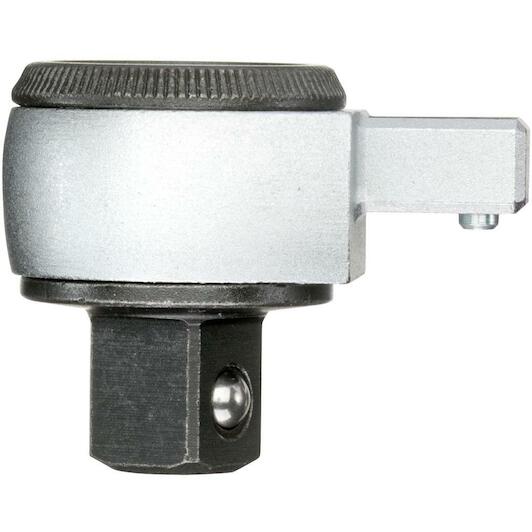

Product description
- The solution to tricky assembly problems, easily interchangeable
- Forged
- Chrome-Vanadium steel
- Matt chrome-plated
- With pin lock
- Fine toothing
- Retraction angle of 5
- Max. continuous load capacity piercing square according to DIN EN ISO 67892003 or max. load on holder
Key features according to our expert
-
Drive profile size: 1/2"
-
Connection size: 9 x 12 mm
-
Connection profile: Outer rectangle
-
Type of drive profile: External square
Specifications / All features
-
Brand:
GEDORE
-
41946705
-
EAN:
4002805742020
-
Supplier number:
GEDORE 7687230
- Drive profile size
- 1/2"
- Connection size
- 9 x 12 mm
- Connection profile
- Outer rectangle
- Type of drive profile
- External square
- Drive square [inch]
- 1/2"
- Permanent load capacity
- 1/2" = 150 N-m
- Pitch size [metric]
- 17.5 mm
- Drive intake, rectangular...
- 9 x 12 mm
- Head width 2 [mm]
- 34 mm
- Head height 2 [mm]
- 24.2 mm
- Number of teeth
- 72
- Drive square [metric]
- 12.5 mm
- Material
- Chrome-Vanadium steel
- Retrieval angle
- 5 °
