GEDORE 7 XL 22 ring spanner extra long 22 mm - 6101190

Name: GEDORE 7 XL 22 ring spanner extra long 22 mm - 6101190
Brand: GEDORE
SKU: 41890425
Price: 29.4 EUR
Availability: InStock
Rating: 10 (1 reviews)

Supplier number: GEDORE 6101190 | EAN 4010886610114

1 review(s)

Recommended Retail Price €49.71

29.40 tax incl.

€24.30 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Superior leverage for demanding fastenings

Practical benefits

Extended 350 mm leverage: The extra length of 350 mm allows you to apply maximum torque to stubborn fasteners with minimal effort.
Gedore UD-profile fastener protection: The 15-degree angled ring end delivers uniform force distribution to prevent rounding off bolt and nut heads.
High bending overload resistance: Constructed from tough vanadium steel, the tool deforms under excessive load rather than fracturing or splintering suddenly.

In a nutshell

The right choise for

Tackle stubborn or deeply recessed 22 mm fasteners with the Gedore 7 XL 22 combination spanner. Its extended length of 350 mm delivers maximum leverage, allowing you to loosen tight bolts with minimal effort. The 15-degree angled ring end features the ud profile, distributing torque evenly across fastener flanks to prevent rounding off bolt and nut heads. Forged from chrome-plated Gedore vanadium steel 31CrV3, this durable spanner ensures high working safety by deforming under extreme overload rather than suddenly fracturing. It provides reliable performance for demanding automotive, agricultural, and industrial maintenance tasks.

Product information FAQ Reviews

€29.40

In stock - tax incl.

Key features according to our expert

Width across flats: 22 mm
Length: 350 mm
Non-sparking: No

Product description

Extra long shank for deeper applications and more torque
Chrome-vanadium steel 31CrV3, chrome-plated
Carefully forged and expertly machined
Overload is indicated by deformation
Secure grip through profiled shank
Reflective appearance through matt chrome-plated surface
For universal applications
High industrial quality for continuous use under tough conditions
Jaw ground to exact nominal size for optimum contact surfaces
Ring angled 15°, with UD profile for gentle power transmission

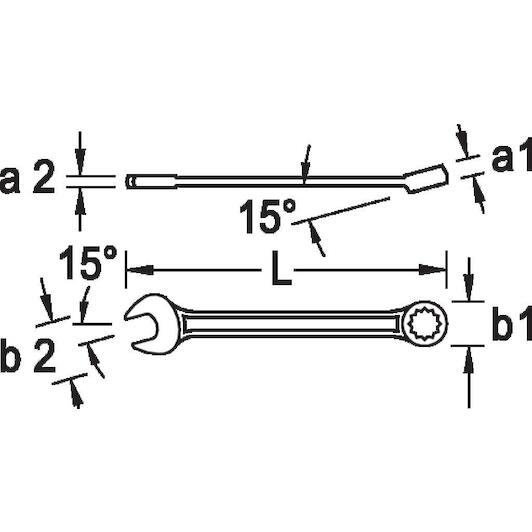

All Features

Width across flats: 22 mm
Length: 350 mm
Non-sparking: No
Surface area: chromed
Head height 1 [mm]: 16.2 mm
Standard: similar to DIN 3113 - form AISO 3318 ISO 7738
Head width 1 [mm].: 33.5 mm
Key width 1 [mm]: 22
Head width 2 [mm]: 49 mm
Head height 2 [mm]: 11 mm
Ring corner: 15°
Weight lbs]: 0.860 lbs
Bekstand 1: 15°
Material: 31CrV3
Overall length [mm]: 348 mm

Brand GEDORE
41890425
EAN 4010886610114
Supplier number GEDORE 6101190

Frequently asked questions about this product

Answered by specialists

What is the total length of this combination spanner?: The Gedore 7 XL 22 has an overall length of 350 mm, providing increased leverage and deeper reach.
What is the benefit of the UD profile on the ring end?: The UD (Unit Drive) profile applies torque across the fastener flanks, preventing damage to bolt and nut heads.
What is the offset angle of the ring end?: The ring head is angled at 15° to provide better clearance and access in tight working spaces.
What material is this combination spanner made of?: It is forged from high-grade Gedore vanadium steel 31CrV3 with a glare-free matt chrome finish.
Is this combination spanner spark-proof?: No, this spanner is not spark-proof and is not rated for explosive ATEX environments.
