GEDORE 7 UR 10 switchable ratchet spanner UD 10 mm - 2297272

Name: GEDORE 7 UR 10 switchable ratchet spanner UD 10 mm - 2297272
Brand: GEDORE
SKU: 41896167
Price: 16.8 EUR
Availability: InStock

Supplier number: GEDORE 2297272 | EAN 4010886889367

Recommended Retail Price €34.22

16.80 tax incl.

€13.88 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Streamlined fastening using the Gedore 7 UR 10 ratcheting wrench

Practical benefits

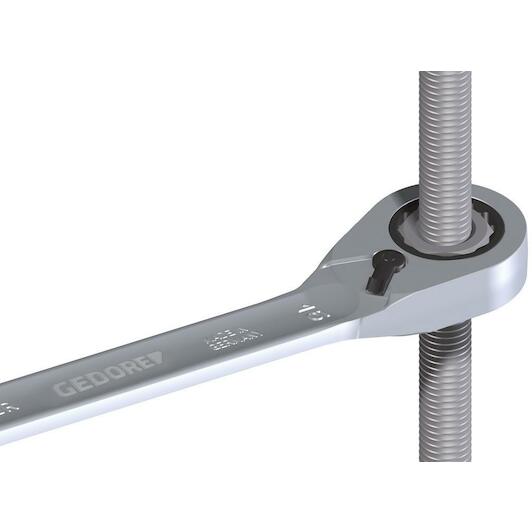

Instant reversible ratchet action: You can quickly switch between tightening and loosening without removing the tool from the fastener.
High torque with UD-profile: The special UD-profile distributes force evenly across fastener heads to prevent rounding under heavy loads.
Angled for tight spaces: A 13-degree offset ring end gives you essential knuckle clearance when working in confined locations.

In a nutshell

The right choise for

With the Gedore 7 ur 10 reversible combination ratchet spanner, you tackle 10 mm nuts and bolts quickly and smoothly. The integrated switch lever lets you change direction between tightening and loosening instantly without having to remove the tool from the fastener. Its proven UD-profile provides high torque transmission while effectively preventing bolt head rounding. Featuring an overall length of 154 mm and a 13-degree angled ring end, this spanner delivers essential knuckle clearance and superior access in cramped engine bays and compact mechanical assemblies. It keeps your maintenance and repair tasks fast, controlled, and hassle-free.

Product information FAQ

€16.80

In stock - tax incl.

Key features according to our expert

Width across flats: 10 mm
Overall length: 154 mm

Product description

With equal key widths
UD profile
High power transmission
Chrome vanadium steel 31CrV3
Reflective appearance through matt chrome-plated surface, insert ring and locking bar manganese-phosphated
Annealed forged
Jaws ground to exact nominal size for optimum contact surfaces
With adapter No. 7 RA or No. 7 RB (to be ordered separately), the No. 7 UR becomes a (bit) ratchet
Ring side bent by 13°, switchable
With spanner with ring ratchet No. 7 R for loosening the ratchet or quickly tightening the ratchet.
Fits comfortably in the hand due to profiled profile in the shaft
Torsion-resistant geometry with double-T profile

All Features

Width across flats: 10 mm
Overall length: 154 mm

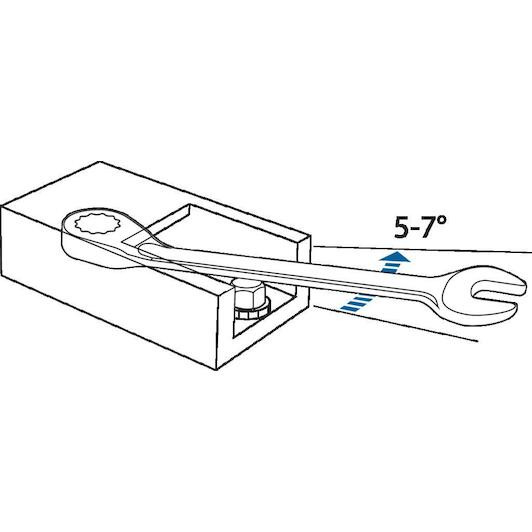

Retrieval angle: 7 °
Overall length [mm]: 160 mm
Surface area: chromed

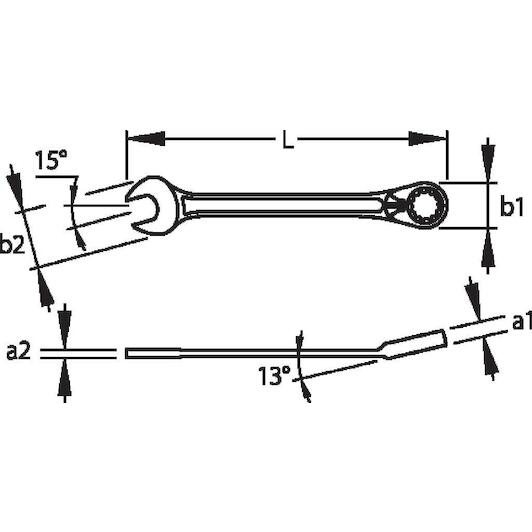

Head height 1 [mm]: 7.7 mm
Bekstand: 15 °
Standard: non-standardized
Head width 1 [mm].: 21.0 mm
Head height 2 [mm]: 4.1 mm
Head width 2 [mm]: 23 mm
Ring corner: 13°
Material: 31CrV3
Key width [mm]: 10,0

Brand GEDORE
41896167
EAN 4010886889367
Supplier number GEDORE 2297272

Frequently asked questions about this product

Answered by specialists

What size is this combination ratchet spanner?: This spanner has a width across flats of 10 mm on both ends.
Is the ratcheting direction reversible?: Yes, the ring ratchet mechanism features a switch lever for easy reversing.
What is the benefit of the UD profile?: The UD profile protects bolt heads and ensures high torque transmission.
At what angle is the ring end set?: The ring side is angled at 13° to provide better clearance in tight spots.
What is the total length of this spanner?: The Gedore 7 UR 10 has an overall length of 154 mm.
