What size is this combination ratchet spanner?

Both the open end and the ratchet ring end have a size of 11 mm.

What is the total length of this spanner?

The total length of this spanner is 165,5 mm.

How do you change the ratchet direction?

As this is a flat pattern spanner without a reverse lever, you simply turn the spanner over.

What profile does the ring end feature?

The ratchet ring features a UD profile for high torque transfer.

GEDORE 7 R 11 ratchet spanner 11 mm - 2297094

Name: GEDORE 7 R 11 ratchet spanner 11 mm - 2297094
Brand: GEDORE
SKU: 41894304
Price: 13.8 EUR
Availability: InStock

Supplier number: GEDORE 2297094 | EAN 4010886889152

Recommended Retail Price €24.51

13.80 tax incl.

€11.40 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 03/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Fast fastening with the Gedore combination ratchet spanner

Practical benefits

Smooth action in tight spaces: A low 7° return angle allows you to work efficiently even in extremely narrow spots.
High torque with screw protection: The specialized profile delivers strong power transmission without rounding or damaging bolt heads.
Durable and comfortable grip: Manufactured from tough chrome-vanadium steel, the profile provides a secure hold during demanding mechanical jobs.

In a nutshell

The right choise for

With the Gedore 7 r 11 combination ratchet spanner, you can tighten and loosen 11 mm fasteners quickly and efficiently. Thanks to its flat profile design, you easily access confined spots where standard sockets and ratchets cannot fit, such as crowded engine bays or pipe fittings. The integrated ratchet ring features a low 7° return angle, allowing continuous operation without removing the tool from the bolt head after every turn. The specialized ud profile ensures powerful torque transfer while protecting fastener heads from wear. Forged from durable chrome-vanadium steel with a total length of 165.5 mm, this spanner gives you a secure, comfortable grip for demanding maintenance and mechanical tasks.

Product information FAQ

€13.80

In stock - tax incl.

Key features according to our expert

Width across flats: 11 mm
Overall length: 165,5 mm

Product description

With equal key widths

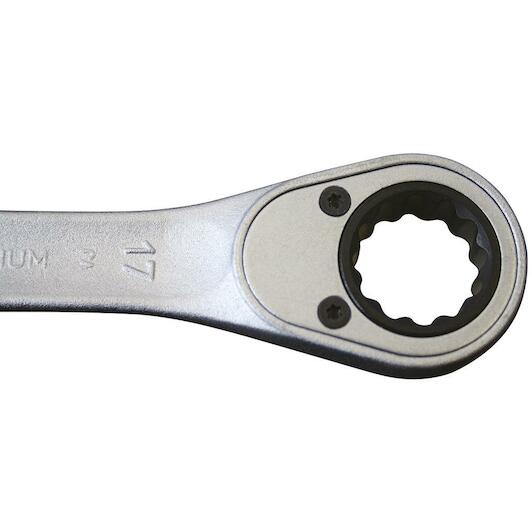

UD profile
High power transmission
Chrome vanadium steel 31CrV3
Reflective appearance through matt chrome-plated surface, insert ring and locking bar manganese-phosphated
Annealed forged
Jaws ground to exact nominal size for optimum contact surfaces
With adapter No. 7 RA or No. 7 RB (to be ordered separately) the No. 7 R becomes a (bit) ratchet
Fits comfortably in the hand thanks to profiled profile in the shank
Torsion-resistant geometry with double-T profile
With ratchet function, for fast loosening or tightening
Flat design

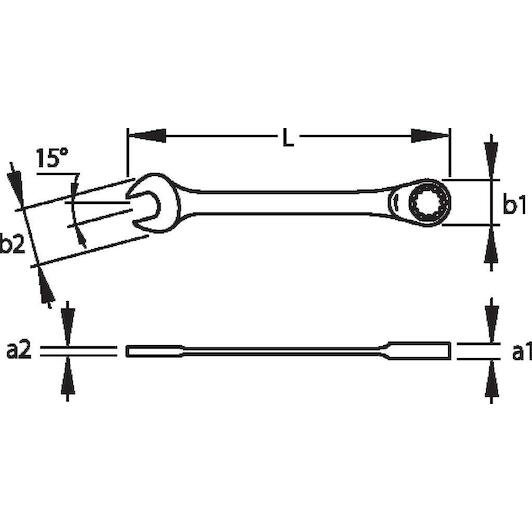

All Features

Width across flats: 11 mm
Overall length: 165,5 mm
Retrieval angle: 7 °
Overall length [mm]: 165 mm
Surface area: chromed
Head height 1 [mm]: 8.1 mm
Bekstand: 15 °
Standard: non-standardized
Head width 1 [mm].: 22.5 mm
Head width 2 [mm]: 26 mm
Head height 2 [mm]: 4.3 mm
Material: 31CrV3
Key width [mm]: 11

Brand GEDORE
41894304
EAN 4010886889152
Supplier number GEDORE 2297094

Frequently asked questions about this product

Answered by specialists

What size is this combination ratchet spanner?: Both the open end and the ratchet ring end have a size of 11 mm.
What is the total length of this spanner?: The total length of this spanner is 165,5 mm.
How do you change the ratchet direction?: As this is a flat pattern spanner without a reverse lever, you simply turn the spanner over.
What profile does the ring end feature?: The ratchet ring features a UD profile for high torque transfer.
