GEDORE 626 19X22 pipe spanner 19x22 mm - 6526520

GEDORE

Supplier number: GEDORE 6526520 | EAN 4010886652657

This product has been discontinued.

✆ Talk to a specialist

Product information

Key features according to our expert

Width across flats 1: 19 mm
Length: 175 mm
Version (tubular box spanner): Solid
Shape (tubular box spanner): Straight
Width across flats 2: 22 mm

Product description

Construction in accordance with DIN 896, form A
ISO 2236
ISO 1085
With hexagonal shank and bore holes for use with open-end spanner or wrench (No. 626 S / No. 26 RS-626 S)
Fully bore in length, except sizes 6x7 and 8x9 mm
Vanadium steel 31CrV3, chrome-plated

All Features

Width across flats 1: 19 mm
Length: 175 mm
Version (tubular box spanner): Solid
Shape (tubular box spanner): Straight
Width across flats 2: 22 mm
26 rs: 626 S 2
Surface area: chromed

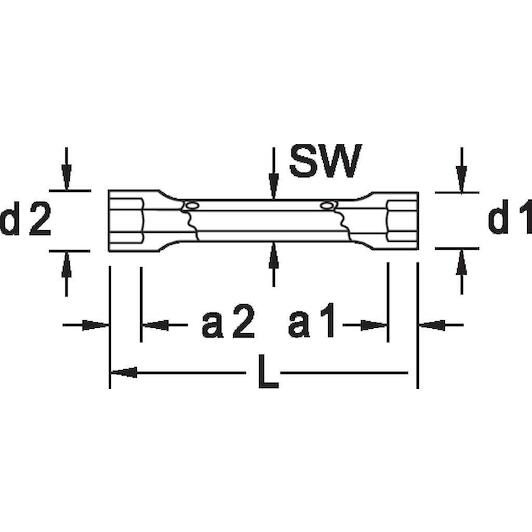

Standard: comparable with DIN 896 - Form AISO 2236 ISO 1085
Head ø 2 [mm]: 30 mm
Insertion depth 2: 18.5 mm
Key width 1 [mm]: 19 x 22
Diameter 1 [mm]: 26,0
Insertion depth 1: 17.5 mm
Head ø 1 [mm]: 26 mm
Drive hexagon [metric]: 19.0 mm
Material: 31CrV3
Overall length [mm]: 175 mm

Brand GEDORE
41891858
EAN 4010886652657
Supplier number GEDORE 6526520
