GEDORE 4475-01 torque spanner torcofix z 22, 150-750 nm - 1521381

Name: GEDORE 4475-01 torque spanner torcofix z 22, 150-750 nm - 1521381
Brand: GEDORE
SKU: 41998351
Price: 1055.94 EUR
Availability: PreOrder

Supplier number: GEDORE 1521381 | EAN 4002805924075

This product has been discontinued.

✆ Talk to a specialist

Product information

Key features according to our expert

Max. tightening torque: 750 Nm
Drive profile size: 22 mm
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 150 Nm

Product description

4475-01 Torque spanner TORCOFIX Z 22 150-750 Nm

Features

Controlled tightening of screws in the range 5 - 850 N-m / 3.7 - 550 lbf-ft,Controlled screw tightening in the range 5 - 850 N-m / 3,Design: classified according to DIN EN ISO 6789:2003 type II class A,with a factory certificate
Accuracy +/- 3 % of set scale value
The standard guideline (+/- 4 %) is exceeded,for controlled clockwise and anticlockwise tightening,robust,painted steel-tube construction,with phosphated pin fittings (16 mm resp.
22 mm) and high-quality plastic parts,Ergonomically shaped,handy,black plastic handle with calibration aid,double scale N-m and lbf-ft under a viewing window with magnifying glass effect,with micrometer scale for N-m main scale for setting scale intermediate values,release system provides a tactile and audible release signal,Automatic switch-off using audible and tactile signal,Ergonomic system for setting the torque,Working calibre 56 mm (Ø 22 mm),Operation only with push-on tools with uniform pitch size - otherwise value shifts may occur,Depending on tool use, both forward (e.g.
Socket spanner) or laterally (e.g.
Exchangeable ratchet and socket spanner) can be used

All Features

Max. tightening torque: 750 Nm
Drive profile size: 22 mm
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 150 Nm
Pitch size [metric]: 56.0 mm
Fixed setting: No
Drive type/drive: Drive pin
Tightening torque (min.) [lbf-ft]: 110 lbf-ft
Lever length drive side [mm]: 318 mm
Precision +/-: +/- 3 %
Test certificate: DIN EN ISO 6789-2:2017
Scale division [nm]: 10 Nm
Tightening range (min/max) [lbf-ft].: 110 lbf-ft - 550 lbf-ft
Tightening direction: Left and right

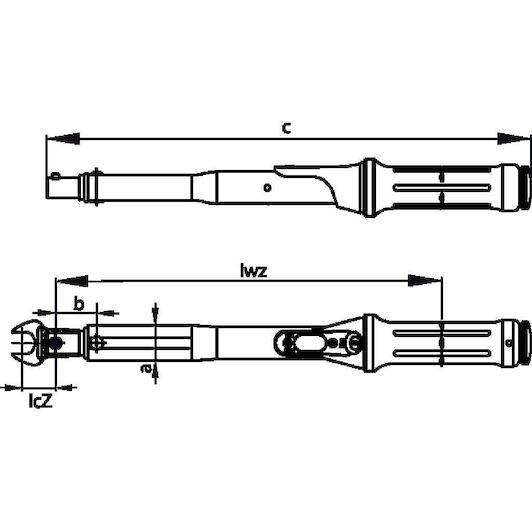

Overall length [mm]: 1,198 mm
Torque (min.) [nm].: 150 Nm
Vernier nm: 1 Nm
Calibration length: 1119.9 mm
Distance between the housing and the centre of the drive [mm].: 318 mm
Lever length handle side [mm]: 880 mm
Take-up width [mm]: 22 mm
Tightening torque (max) [lbf-ft]: 550 lbf-ft
Turn-off mechanism: Short road clearance
Target groups: AutomotiveIndustry Construction and commercial vehicles Military Energy Mechanical Engineering Utilities Service Agriculture Oil and gas
Torque range (min./max.) [nm].: 150 Nm - 750 Nm
Scope: MountingSeries assembly Production Maintenance and repair
Material: tubular steel construction, high-quality plastic parts
Torque (max.) [nm].: 750 Nm
