GEDORE 4430-01 torque spanner torcofix z 16, 60-300 nm - 7097430

Name: GEDORE 4430-01 torque spanner torcofix z 16, 60-300 nm - 7097430
Brand: GEDORE
SKU: 02451867
Price: 363.44 EUR
Availability: PreOrder

Supplier number: GEDORE 7097430 | EAN 4002805443019

This product has been discontinued.

Successor to this product

GEDORE TF-Z300 Torcofix Z 16 torque spanner, 60-300 Nm - 3278603

View product

✆ Talk to a specialist

Product information

Key features according to our expert

Max. tightening torque: 300 Nm
Drive profile size: 16 mm
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 60 Nm

Product description

4430-01 Torque spanner TORCOFIX Z 16 60-300 Nm

Features

Controlled tightening of screws in the range of 5 - 850 N-m / 3.7 - 550 lbf-ft,Controlled screw tightening in the range 60 - 300 N-m / 45 - 220 lbf-ft,Design: classified according to DIN EN ISO 6789:2003 type II class A,with a factory certificate
Accuracy +/- 3 % of set scale value
The guideline of the standard (+/- 4 %) is exceeded,for controlled clockwise and anticlockwise tightening,robust,painted steel-tube construction,with phosphated pin fittings (16 mm resp.
22 mm) and high-quality plastic parts,Ergonomically-shaped,handy,black plastic handle with calibration aid,double scale N-m and lbf-ft under a viewing window with magnifying glass effect,with micrometer scale for N-m main scale for setting scale intermediate values,release system provides a tactile and audible release signal,Automatic switch-off using audible and tactile signal,Ergonomic system for setting the torque,Working calibration distance 32 mm (Ø 16 mm),Operation only with slip-on tools with uniform pitch size - otherwise value shifts may occur,Depending on tool use, both forward (e.g.
Socket spanner) or laterally (e.g.
Exchangeable ratchet and socket spanner) can be used

All Features

Max. tightening torque: 300 Nm
Drive profile size: 16 mm
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 60 Nm
Pitch size [metric]: 32.0 mm
Fixed setting: No
Drive type/drive: Drive pin
Tightening torque (min.) [lbf-ft]: 45 lbf-ft
Lever length drive side [mm]: 32 mm
Precision +/-: +/- 3 %
Test certificate: DIN EN ISO 6789-2:2017
Scale division [nm]: 10 Nm
Tightening range (min/max) [lbf-ft].: 45 lbf-ft - 220 lbf-ft
Tightening direction: Left and right

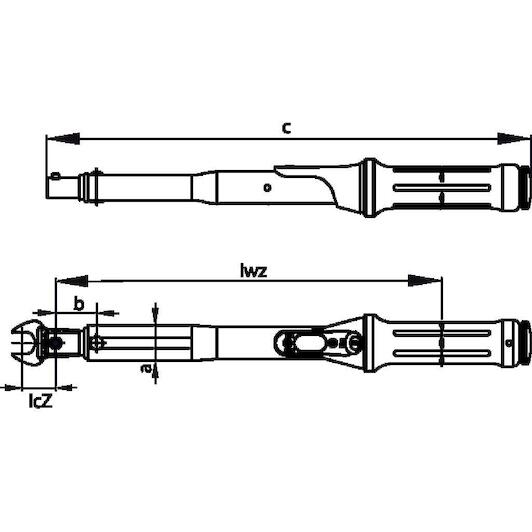

Overall length [mm]: 558.5 mm
Torque (min.) [nm].: 60 Nm
Vernier nm: 1 Nm
Calibration length: 482.2 mm
Distance between the housing and the centre of the drive [mm].: 32 mm
Lever length handle side [mm]: 536.5 mm
Take-up width [mm]: 16 mm
Tightening torque (max) [lbf-ft]: 220 lbf-ft
Turn-off mechanism: Short road clearance
Target groups: AutomotiveIndustry Construction and commercial vehicles Military Energy Mechanical Engineering Utilities Service Agriculture Oil and gas
Torque range (min./max.) [nm].: 60 Nm - 300 Nm
Scope: MountingSeries assembly Production Maintenance and repair
Material: tubular steel construction, high-quality plastic parts
Torque (max.) [nm].: 300 Nm
