Product description
- Construction in accordance with DIN 1810 form A
- For slotted nuts according to DIN 981
- Vanadium steel 31CrV3, manganese phosphated
Key features according to our expert
-
Min. diameter: 120 mm
-
Max. diameter: 130 mm
Specifications / All features
-
Brand:
GEDORE
-
41893030
-
EAN:
4010886633533
-
Supplier number:
GEDORE 6335340

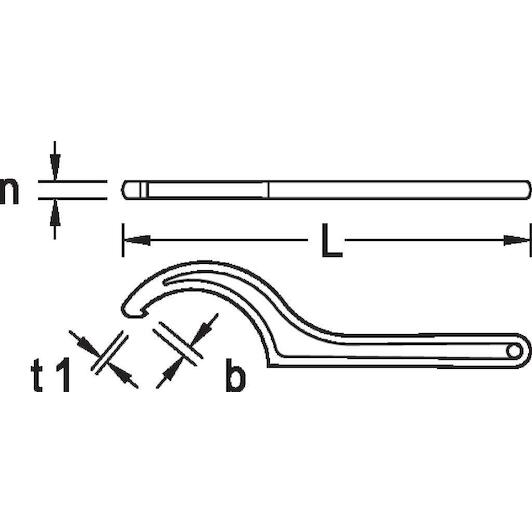

- Min. diameter
- 120 mm
- Max. diameter
- 130 mm
- Material
- 31CrV3
- Pin-height
- 4.0 mm
- Key width 1 [mm]
- 120-130
- Pin/ø
- 5.0 mm
- Head width 1 [mm].
- 10.3 mm
- Standard
- DIN 1810 - form A
- Surface area
- corpus manganese-phosphated
- Overall length [mm]
- 330 mm
