Which pipes are suitable for the Gedore 242322?

It is suitable for soft and semi-hard copper pipes (EN 1057) and bendable steel or stainless steel pipes up to 18 x 1.5 mm.

What is the maximum bending angle?

This pipe bending tool bends pipes up to a maximum angle of 90°.

Which pipe diameter can this tool bend?

This bending tool is designed for pipes with an outer diameter of 22 mm.

What is the bending radius of this model?

The Gedore 242322 features a bending radius of 86 mm.

Why does the tool include both a roller and a plastic slide rail?

Exchanging the roller with the plastic slide rail allows you to bend different pipe materials cleanly without damage.

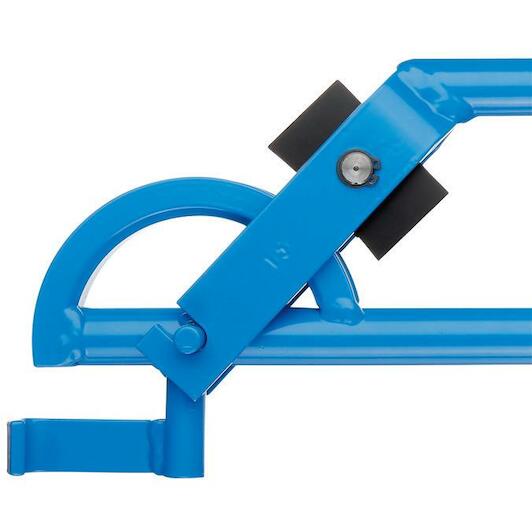

GEDORE 242322 pipe bending pliers with roller and plastic slide 22 mm - 4565270

Name: GEDORE 242322 pipe bending pliers with roller and plastic slide 22 mm - 4565270
Brand: GEDORE
SKU: 02232968
Price: 171.4 EUR
Availability: PreOrder

Supplier number: GEDORE 4565270 | EAN 4017981242363

Recommended Retail Price €276.44

171.40 tax incl.

€141.65 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

Ordered before 20:00 - delivered as of 20/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Precise pipe bending with Gedore

Practical benefits

Smooth and accurate bends: The integrated roller and plastic slide ensure you bend 22 mm pipes neatly without surface flattening.
Strong mechanical leverage action: A generous 820 mm overall length lets you shape copper and steel tubes with minimal physical effort.
Adaptable for multiple materials: Easily switch components to perform accurate curves up to 90 degrees across various tube types.

In a nutshell

The right choise for

With the Gedore 242322 pipe bending pliers, you shape 22 mm pipes smoothly and accurately up to a 90-degree angle without kinking or flattening. The combination of a bending roller and an interchangeable plastic slide rail lets you handle soft and semi-hard copper pipes (EN 1057) as well as bendable steel and stainless steel pipes up to 18 x 1.5 mm while preventing surface scratches. Thanks to its 820 mm total length, the tool provides powerful leverage so you can form neat curves with an 86 mm bending radius using minimal effort. It is the practical choice for clean plumbing, HVAC, and heating pipe installations.

Product information FAQ

€171.40

tax incl.

Key features according to our expert

Min. diameter: 10 mm
Max. diameter: 22 mm
Max. bend angle: 90 °

Product description

Dimensions from 10 to 22 mm Ø up to 90°
Areas of application Bendable steel and stainless steel pipes (up to max. 18 x 1.5 mm)
Soft (also heat-insulating) and semi-rigid copper pipe EN 1057
Universally applicable - with roller and plastic carriage (exchangeable)
Painted blue

All Features

Min. diameter: 10 mm
Max. diameter: 22 mm
Max. bend angle: 90 °
Pipe ø (max.) [mm]: 22 mm
Bending radius: 86
Overall length [mm]: 820 mm

Brand GEDORE
02232968
EAN 4017981242363
Supplier number GEDORE 4565270

Frequently asked questions about this product

Answered by specialists

Which pipes are suitable for the Gedore 242322?: It is suitable for soft and semi-hard copper pipes (EN 1057) and bendable steel or stainless steel pipes up to 18 x 1.5 mm.
What is the maximum bending angle?: This pipe bending tool bends pipes up to a maximum angle of 90°.
Which pipe diameter can this tool bend?: This bending tool is designed for pipes with an outer diameter of 22 mm.
What is the bending radius of this model?: The Gedore 242322 features a bending radius of 86 mm.
Why does the tool include both a roller and a plastic slide rail?: Exchanging the roller with the plastic slide rail allows you to bend different pipe materials cleanly without damage.
