What drive size does this ratchet head have?

It features a 1" square drive (25 mm) conforming to DIN 3120 - D 25 and ISO 1174 with pin retention.

Is an operating handle included with this head?

No, this is the ratchet head only. You combine it with a compatible push-fit handle such as the Gedore 2187 G.

What is the return angle of the ratchet mechanism?

The ratchet mechanism features an 11.25-degree return angle for heavy-duty applications.

What material is this ratchet head made from?

It is made from chrome-plated Gedore vanadium steel 31CrV3.

What is the overall length of this ratchet head?

The overall length of this ratchet head alone is 184 mm.

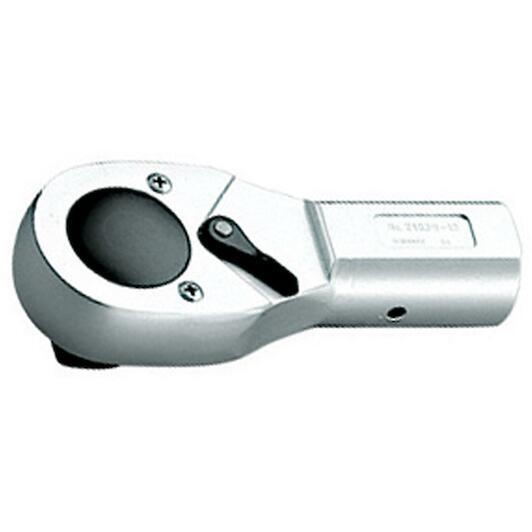

GEDORE 2193 U-10 K loose switchable ratchet head 1" - 6196120

Name: GEDORE 2193 U-10 K loose switchable ratchet head 1" - 6196120
Brand: GEDORE
SKU: 41892919
Price: 209.95 EUR
Availability: PreOrder

Supplier number: GEDORE 6196120 | EAN 4010886619612

Recommended Retail Price €350.05

209.95 tax incl.

€173.51 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Ordered before 20:00 - delivered as of 10/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Heavy-duty ratchet head built for demanding industrial assembly

Practical benefits

Robust Gedore drive for torque: Constructed from chrome-plated vanadium steel, the 1" square drive lets you apply high torque to heavy fasteners reliably.
Smooth and secure direction switching: The recessed reversing lever enables you to change drive direction quickly while locking securely in the middle position.
Tight and precise return angle: With an 11.25° return angle, you maintain efficient ratcheting progress even when working in restricted clearances.

In a nutshell

The right choise for

With the Gedore 2193 U-10 k ratchet head, you tackle demanding industrial assembly and heavy machinery or vehicle maintenance with complete confidence. This separate ratchet head features a robust 1" square drive that reliably transfers high torque to heavy-duty fasteners. The recessed reversing lever allows you to change directions quickly, while the middle locking position prevents accidental switching. Thanks to an 11.25° return angle, you make steady, controlled progress even in restricted clearances. Crafted from chrome-plated Gedore vanadium steel 31CrV3 with a compact length of 184 mm, it pairs with a push-fit handle such as the Gedore 2187 g to deliver the heavy-duty ratcheting performance your work demands.

Product information FAQ

€209.95

tax incl.

Key features according to our expert

Drive profile size: 1"

Product description

Particularly suitable for rugged use in industry and automotive, design according to DIN 3122
ISO 3315
With recessed pawl, locking in central position
Back angle 11,25°, for hand-operated socket spanners and fittings with drive square according to
DIN 3120 - D 25
ISO 1174, with pin lock
GEDORE vanadium steel 31CrV3, chrome-plated

All Features

Drive profile size: 1"
Material: chrome vanadium steel 31CrV3
Drive square [metric]: 25 mm
Drive square [inch]: 1"
Ratchet head height: 61.5 mm
Standard: DIN 3122ISO 3315
Overall length [mm]: 184 mm
Retrieval angle: 11,25 °

Brand GEDORE
41892919
EAN 4010886619612
Supplier number GEDORE 6196120

Frequently asked questions about this product

Answered by specialists

What drive size does this ratchet head have?: It features a 1" square drive (25 mm) conforming to DIN 3120 - D 25 and ISO 1174 with pin retention.
Is an operating handle included with this head?: No, this is the ratchet head only. You combine it with a compatible push-fit handle such as the Gedore 2187 G.
What is the return angle of the ratchet mechanism?: The ratchet mechanism features an 11.25-degree return angle for heavy-duty applications.
What material is this ratchet head made from?: It is made from chrome-plated Gedore vanadium steel 31CrV3.
What is the overall length of this ratchet head?: The overall length of this ratchet head alone is 184 mm.
