Product description
Hull and dimensions
- Hull dimensions H 812 x W 771 x D 478 mm
- Sheet steel, corrosion-resistant and scratch-resistant powder-coated
- GEDORE blue
Worktop and Storage
- Tray made of ABS plastic with 3 compartments for small parts
- 2 spray can holders
- 8 screwdriver holders

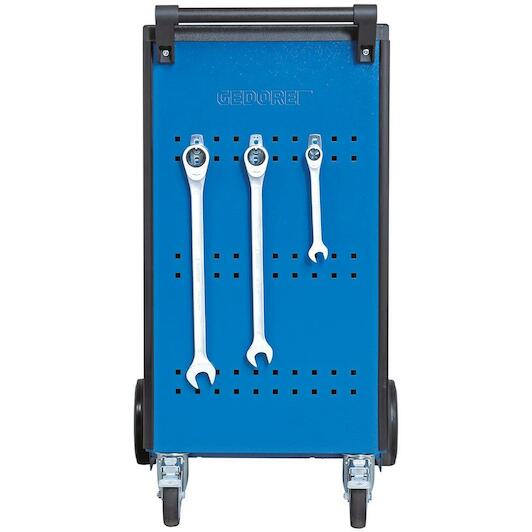

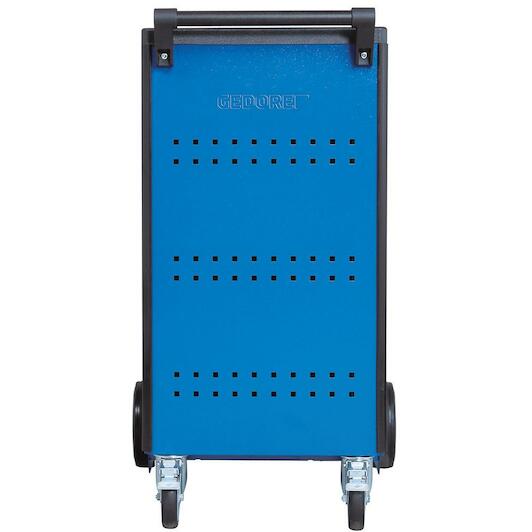

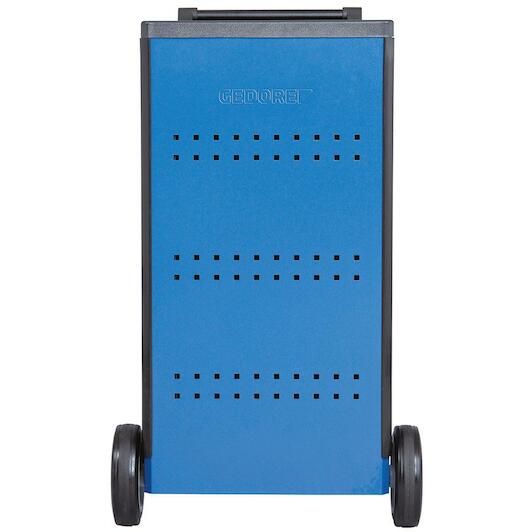

- Side walls with Euro perforation 10 x 38 mm for fixing hooks and tools
Mobility and safety
- Manoeuvrable and easy to steer thanks to handlebar grip
- Safety through heel protection and edge crash protection for persons and environment
Loading and organisation
- Drawers centrally lockable with cylinder lock
- Wide drawers (W 640 x D 400 mm), fully extendable, removable
- Safety lock per drawer, one-hand operation
- Bearing-mounted guide rails
- Individual partitioning using longitudinal and transverse dividers (also available separately)
- Capacity per drawer 40 kg, lower heavy drawer 60 kg
Underframe and castors
- GEDORE heavy-duty undercarriage
- Total static load capacity 1000 kg (dynamic 750 kg)
- 2 high-quality, roller-bearing GEDORE castors (fixed-wheel castors Ø 200 mm)
- 2 smooth-running, ball-bearing GEDORE wheels (swivel castors Ø 125 mm), both with travel and swivel locks
- GEDORE axle construction ensures smooth-running, manoeuvrable and track-resistant properties even at maximum load
Accessories and extensions
- Drawer dividers (LT) and cross dividers (QT) made of galvanised sheet steel (also available separately)
- Can be optimally equipped with GEDORE tool modules (No. 1500 ES/1500 CT)
- Can be expanded as required with GEDORE top boxes, back panels and tool holders
- Supplied without tools and accessories
Key features according to our expert
-
Width: 865 mm
-
Height: 1020 mm
-
Number of drawers: 9
-
Material (worktop): Plastic
-
Color: Blue
-
Max. load capacity: 380 kg; 1000 kg
-
Weight: 93 kg
-
Depth: 605 mm
Specifications / All features
-
Brand:
GEDORE
-
41896114
-
EAN:
4010886877890
-
Supplier number:
GEDORE 2003562
- Width
- 865 mm
- Height
- 1020 mm
- Number of drawers
- 9
- Material (worktop)
- Plastic
- Color
- Blue
- Max. load capacity
- 380 kg; 1000 kg
- Weight
- 93 kg
- Depth
- 605 mm
- Individual withdrawal lock
- No
- Ral colour
- Blue
- Number of wheels
- 4
- Heavy-duty drawer load capacity [kg]
- 60 kg
- Load capacity per drawer [kg]
- 40 kg
- Fixed-wheel diameter (2x)
- 200
- Number of cross dividers
- 2
- Static load capacity [kg]
- 1000 kg
- Surface area
- powder-coated
- Swivel castor diameter with brakes (2x)
- 125
- Overall length [mm]
- 605 mm
- Tray type
- 8x Type 1, H = 67 mm1x Type 2, H = 137 mm
- Working height
- 985
- Dynamic load capacity [kg]
- 750 kg
- Number of length dividers
- 3
- Dimensions (l x w x h)
- 1,020 mm x 865 mm x 605 mm
- Material
- sheet steel
- Colour
- GEDORE blue, RAL 5017
