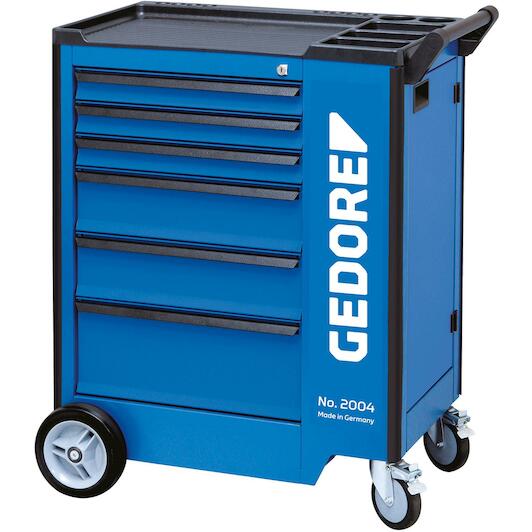

Product description
Hull

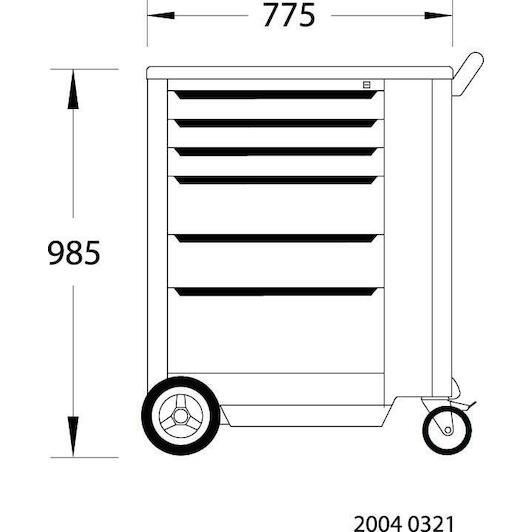

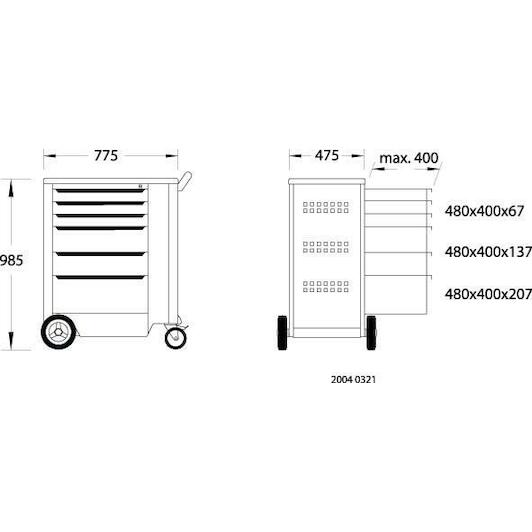

- Dimensions H 812 x W 771 x D 478 mm
- Tray made of ABS plastic with 3 compartments for small parts, 2
- spray can holders, 8 screwdriver holders
- Storage compartment with perforated plate (Euro perforation 10 x 38 mm) and 2 removable small parts drawers plus a door on the handle side
- Manoeuvrable and easy to steer thanks to drive-steer handle
- Front with Euro hole 10 x 38 mm for attaching hooks and tools
- Safety through heel protection and crash protection along the edges for persons and environment
- Sheet steel, corrosion-resistant and scratch-resistant powder coated
- GEDORE blue
Drawers
- Centrally lockable using cylinder lock

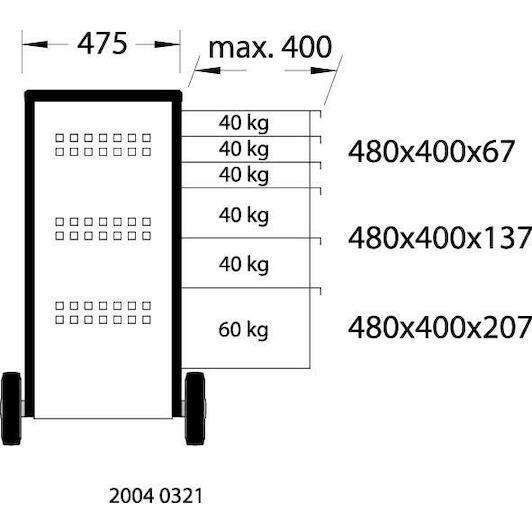

- Wide drawers (W 480 x D 400 mm), fully extendable, removable
- Safety lock per drawer and storage compartment, one-hand operation
- Bearing-mounted guide rails
- Individual partitioning using longitudinal and transverse dividers (also available separately)
- Capacity per drawer 40 kg, bottom heavy drawer 60 kg (not with No. 2004 1000)
- Sheet steel, corrosion-resistant and scratch-resistant powder-coated
- GEDORE blue
Underframe & castors
- GEDORE heavy-duty undercarriage
- Total static load capacity 1000 kg (dynamic 750 kg)
- 2 high-quality, roller-bearing GEDORE castors (fixed-wheel castors Ø 200 mm)
- 2 smooth-running, ball-bearing GEDORE wheels (swivel castors Ø 125 mm), both with travel and swivel locks
- GEDORE axle construction ensures smooth-running, manoeuvrable and track-resistant properties even at maximum load
Accessories & Options
- Drawer dividers (LT) and cross dividers (QT) made of galvanised sheet steel (also available separately)
- Can be optimally equipped with GEDORE tool modules (No. 1500 ES/1500 CT)
- Can be expanded as required with GEDORE top boxes, back panels and tool holders
- Supplied without tools and accessories
Key features according to our expert
-
Width: 865 mm
-
Height: 1020 mm
-
Number of drawers: 6
-
Material (worktop): Plastic
-
Color: Blue
-
Max. load capacity: 1000 kg
-
Weight: 82 kg
-
Depth: 605 mm
Specifications / All features
-
Brand:
GEDORE
-
41890050
-
EAN:
4010886836507
-
Supplier number:
GEDORE 1640755
- Width
- 865 mm
- Height
- 1020 mm
- Number of drawers
- 6
- Material (worktop)
- Plastic
- Color
- Blue
- Max. load capacity
- 1000 kg
- Weight
- 82 kg
- Depth
- 605 mm
- Individual withdrawal lock
- No
- Ral colour
- Blue
- Number of wheels
- 4
- Heavy-duty drawer load capacity [kg]
- 60 kg
- Surface area
- powder-coated
- Fixed-wheel diameter (2x)
- 200
- Number of cross dividers
- 2
- Static load capacity [kg]
- 1000 kg
- Swivel castor diameter with brakes (2x)
- 125
- Load capacity per drawer [kg]
- 40 kg
- Overall length [mm]
- 606 mm
- Tray type
- 3x Type 1, H = 67 mm2x Type 2, H = 137 mm 1x Type 3, H = 207 mm
- Material
- sheet steel
- Dynamic load capacity [kg]
- 750 kg
- Number of length dividers
- 3
- Dimensions (l x w x h)
- 985 mm x 875 mm x 606 mm
- Working height
- 985
- Colour
- RAL 5017
