Product description
Dimensions and construction
- Dimensions H 985 x W 1100 x D 550 mm
- GEDORE heavy-duty undercarriage Total load capacity 700 kg, with mobile use 500 kg
- 2 high-quality, roller-bearing GEDORE castors (fixed-wheel castors Ø 200 mm)
- 2 smooth-running, ball-bearing GEDORE wheels (swivel castors Ø 125 mm), both with travel and swivel locks
- GEDORE trapezoidal axle construction ensures smooth running, manoeuvrability and track stability even at maximum load
Drawers and fittings
- Drawers with one-hand operation and safety lock
- Centrally lockable by cylinder lock
- Bearing-mounted guide rails
- Capacity per drawer 40 kg, lower drawer up to 60 kg (not for No. 1504 1000)
- Individual partitioning with longitudinal and transverse dividers (also available separately)
- Drawer dividers (LT) and cross dividers (QT) of galvanized sheet steel
Safety
- Safety through heel protection for persons

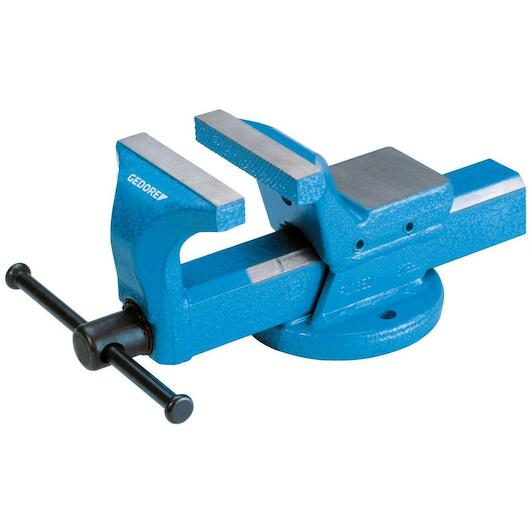

Vice
- Vice
- Sturdy forged design
- Clamping jaws and anvil plate induction-hardened
- Protected screw spindle and adjustable guide
Accessories and extension
- Accessories 4 padding boxes No. 1500 ED-70 K
- Options Can be optimally equipped with GEDORE tool modules (No. 1500 ES/1500 CT)
- Expandable with back panel No. R 1504 L or RT 1504 L
- Supplied without tools and accessories
Key features according to our expert
-
Width: 1100 mm
-
Height: 985 mm
-
Number of drawers: 7
-
Material (worktop): Plywood
-
Color: Blue
-
Max. load capacity: 1000 kg
-
Weight: 112,48 kg
-
Depth: 630 mm
Specifications / All features
-
Brand:
GEDORE
-
41892194
-
EAN:
4010886662304
-
Supplier number:
GEDORE 6623050
- Width
- 1100 mm
- Height
- 985 mm
- Number of drawers
- 7
- Material (worktop)
- Plywood
- Color
- Blue
- Max. load capacity
- 1000 kg
- Weight
- 112,48 kg
- Depth
- 630 mm
- Number of cross dividers
- 2
- Heavy-duty drawer load capacity [kg]
- 60 kg
- Individual withdrawal lock
- No
- Number of cabinets
- 1
- Fixed-wheel diameter (2x)
- 200
- Surface area
- powder-coated
- Static load capacity [kg]
- 1000 kg
- Number of shelves
- 1
- Worktop thickness
- 30 mm
- Tray type
- 5x Type 1, H = 67 mm1x Type 2, H = 137 mm 1x Type 3, H = 207 mm
- Load capacity per drawer [kg]
- 40 kg
- Overall length [mm]
- 550 mm
- Number of wheels
- 4
- Material
- sheet steel
- Worktop dimensions
- 1100 x 550 x 30 mm
- Swivel castor diameter with brakes (2x)
- 125
- Dynamic load capacity [kg]
- 750 kg
- Number of length dividers
- 3
- Implementation

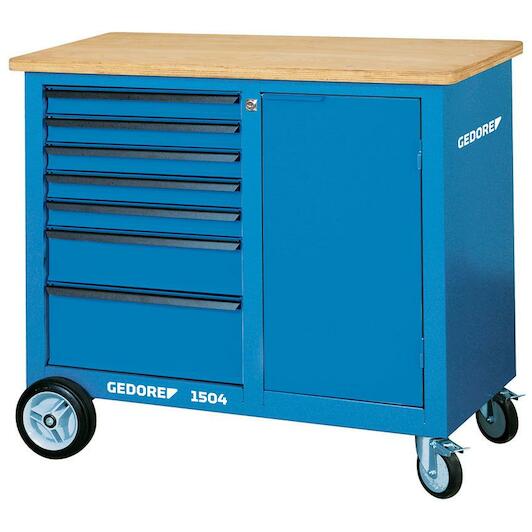

- Mobile workbench with 7 drawers and vice
- Working height
- 985
- Colour
- GEDORE blue, RAL 5017
