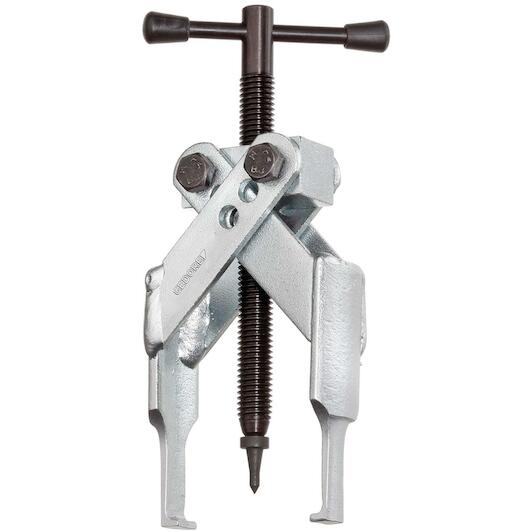

GEDORE 1.23/1XS puller 2-armed with XS hooks 80x85 mm - 2018578

Show more features

Max. width

80 mm

Number of hooks

2

Hydraulical

No

Max. height

85 mm

Double-sided hooks

No

Clamping bracket available

No

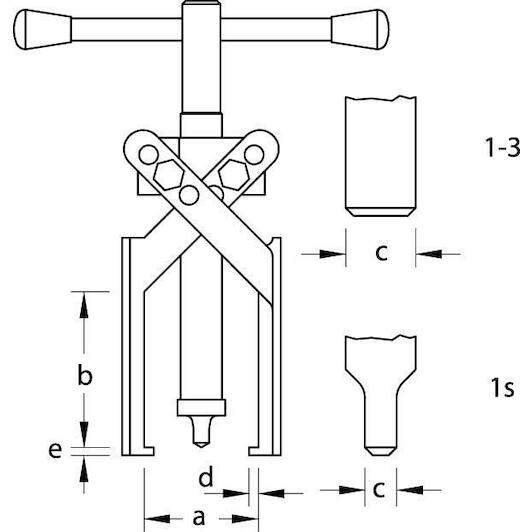

Hook foot thickness at end e1 [mm]

2.0 mm

Hook foot depth usable d2 [mm]

3.5 mm

Suitable for use with a hydraulic spindle

No

Screws included

No

Hook foot width on the gripping surface c1 [mm]

9 mm

Number of arms

2

Reversible arms available

No

Hook brake available

No

Towing force (max.) [t]

0.7

Spindle thread size

M 10x1.5 x 100

Span when pulled externally (max) [mm].

80 mm

Spindle-slide protection

No

Automatic pressing

Yes

Clamping depth usable b [mm]

85 mm
