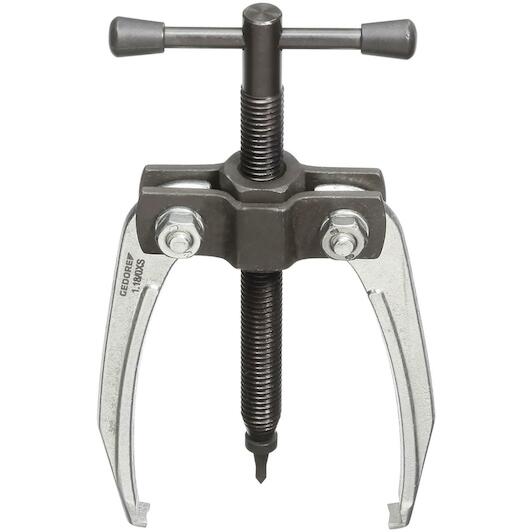

GEDORE 1.18/0XS puller 2-armed with XS hooks 50x70 mm - 2018594

Show more features

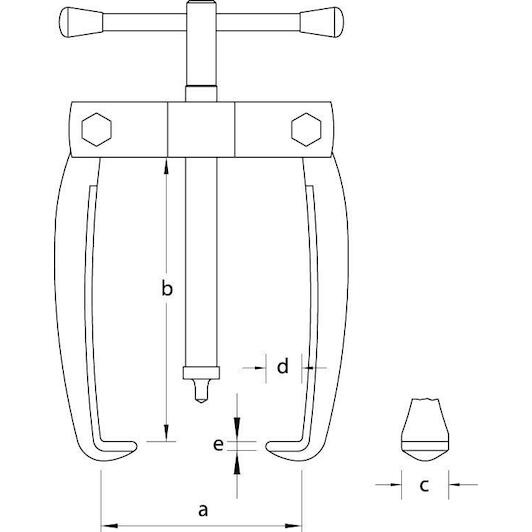

Max. width

50 mm

Number of hooks

2

Hydraulical

No

Max. height

70 mm

Double-sided hooks

No

Clamping bracket available

No

Hook foot thickness at end e1 [mm]

2.0 mm

Hook foot depth usable d2 [mm]

3 mm

Suitable for use with a hydraulic spindle

No

Screws included

No

Hook foot width on the gripping surface c1 [mm]

8 mm

Number of arms

2

Reversible arms available

No

Hook brake available

No

Towing force (max.) [t]

0.5

Spindle thread size

M 10x1.5 x 100

Span when pulled externally (max) [mm].

50 mm

Spindle-slide protection

No

Automatic pressing

No

Clamping depth usable b [mm]

70 mm
