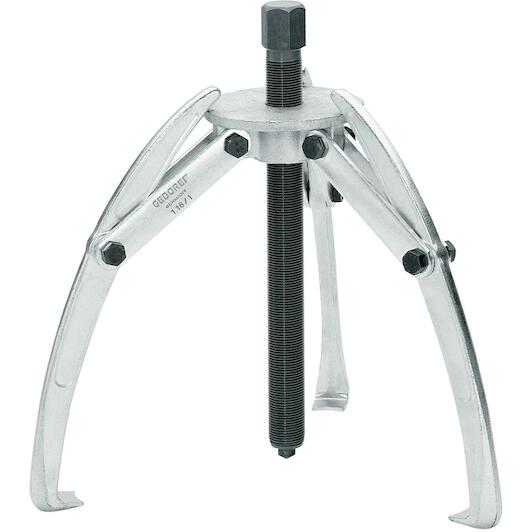

GEDORE 1.17/1 3-arm trigger - 8007320

GEDORE
Supplier number: GEDORE 8007320 | EAN 4036976104752
Recommended Retail Price €623.39
354.80 tax incl.
€293.22 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Ordered before 20:00 - delivered as of 10/10/2026
  • Free shipping
  • Delivery by DHL
✆ Talk to a specialist


Product information
€354.80
tax incl.

Product information

Key features according to our expert

  • Max. width: 300 mm
  • Hydraulical: No
  • Number of hooks: 3
  • Max. height: 300 mm

Product description

  • Very strong design
  • Especially suitable for industry and heavy agricultural and construction machinery
  • The hooks pull themselves tight
  • Suitable for use with a hydraulic spindle
  • Can be used as 2- and 3-armed puller

All Features

Max. width
300 mm
Hydraulical
No
Number of hooks
3
Max. height
300 mm
Reversible arms available
No
Clamping bracket available
No
Quick-release lever available
No

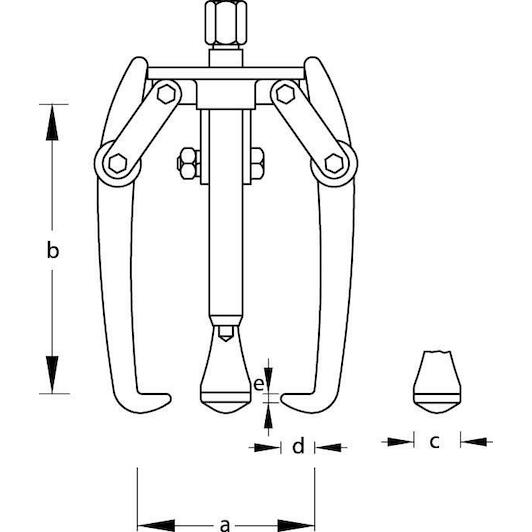

Hook foot thickness at end e1 [mm]
3.0 mm
Hook foot depth usable d2 [mm]
19 mm
Suitable for use with a hydraulic spindle
Yes
Hydraulic spindle optional
1.06/HSP3
Screws included
No
Hook foot width on the gripping surface c1 [mm]
32 mm
Number of arms
3
Hooks parallel adjustable
No
Drive hexagonal width
36 mm
Double-sided hooks
No
Towing force (max.) [t]
12
Spindle thread size
G 1 x 360
Hook brake available
No
Span when pulled externally (max) [mm].
300 mm
Spindle-slide protection
No
Automatic pressing
Yes
Clamping depth usable b [mm]
300 mm
  • Brand GEDORE
  • EAN 4036976104752
  • Supplier number GEDORE 8007320
