GEDORE

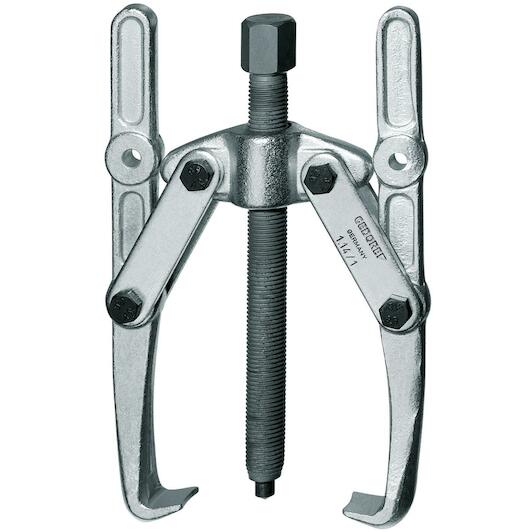

GEDORE 1.14/0 trigger 2-arm 90x100 mm - 8004810

Recommended Retail Price €73.47
45.60 tax incl.
€37.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/05/2026
each

  • Ordered before 20:00 - delivered as of 20/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • Proven, particularly powerful design for pulling discs, wheels, ball bearings, etc.
  • Technical and economic advantages due to variable clamping depth and independent pulling of hooks
  • Particularly suitable for pulling V-belt pulleys and flywheel pulleys mounted on relatively long shafts
  • Suitable for use with a hydraulic spindle
Key features according to our expert
  • Max. width: 90 mm
  • Number of hooks: 2
  • Hydraulical: No
  • Max. height: 100 mm
Specifications / All features
  • Brand: GEDORE
  • EAN: 4036976104530
  • Supplier number: GEDORE 8004810
Max. width
90 mm
Number of hooks
2
Hydraulical
No
Max. height
100 mm
Double-sided hooks
No
Clamping bracket available
No

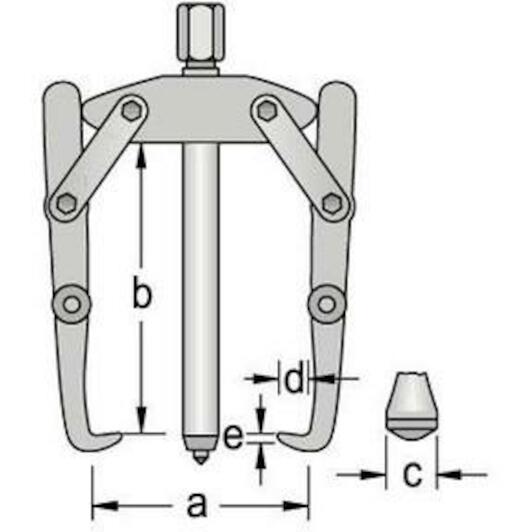

Hook foot thickness at end e1 [mm]
2.0 mm
Overall length [mm]
140 mm
Hook foot depth usable d2 [mm]
9 mm
Suitable for use with a hydraulic spindle
Yes
Screws included
No
Hook foot width on the gripping surface c1 [mm]
14 mm
Number of arms
2
Reversible arms available
No
Drive hexagonal width
14 mm
Towing force (max.) [t]
1
Spindle thread size
M 12x1.5 x 110
Hook brake available
No
Span when pulled externally (max) [mm].
90 mm
Spindle-slide protection
No
Automatic pressing
Yes
Clamping depth usable b [mm]
100 mm
