GEDORE 1.13/1 universal trigger 3-arm 90x120 mm - 8004220

Name: GEDORE 1.13/1 universal trigger 3-arm 90x120 mm - 8004220
Brand: GEDORE
SKU: 01041101
Price: 89.4 EUR
Availability: PreOrder

Supplier number: GEDORE 8004220 | EAN 4036976104479

Recommended Retail Price €147.14

89.40 tax incl.

€73.88 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Controlled component removal by Gedore

Practical benefits

Balanced three point pulling: Three arms distribute up to 3 t of force evenly, preventing parts from tilting during extraction.
Automatic leg gripping action: The legs grip automatically around the workpiece, ensuring a firm hold as you tighten the spindle.
Compact reach for workshops: A 90 mm clamping width and 120 mm depth let you effortlessly extract bearings, wheels, and pulleys.

In a nutshell

The right choise for

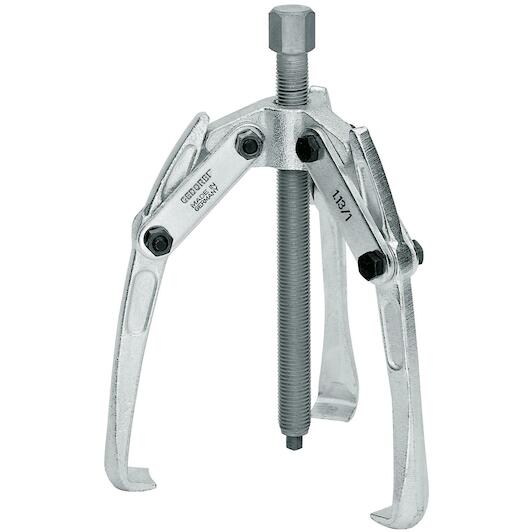

With the Gedore 1.13/1 universal puller, you can extract tightly fitted bearings, pulleys, and gears smoothly without causing damage to components or shafts. Its three robust legs distribute pulling forces up to 3.0 t evenly around the workpiece, preventing tilting during removal. As you tighten the mechanical threaded spindle, the legs grip automatically to ensure a slip-free hold. Offering a clamping width of 90 mm and a clamping depth of 120 mm, this puller delivers dependable reach and control for mechanical maintenance and automotive repair jobs.

Product information FAQ

€89.40

tax incl.

Key features according to our expert

Max. width: 90 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 3
Max. height: 120 mm

Product description

Handy, powerful design to pull discs, wheels, ball bearings, etc.
Attractively priced model
The hooks pull themselves in

All Features

Max. width: 90 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 3
Max. height: 120 mm
Reversible arms available: No
Clamping bracket available: No
Quick-release lever available: No

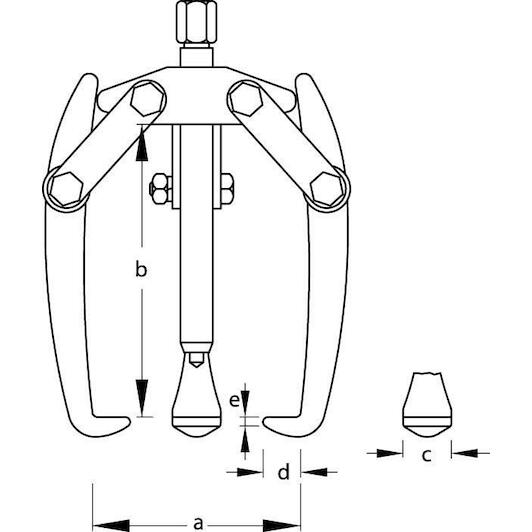

Hook foot thickness at end e1 [mm]: 2.5 mm
Hook foot depth usable d2 [mm]: 11 mm
Suitable for use with a hydraulic spindle: No
Screws included: No
Hook foot width on the gripping surface c1 [mm]: 18 mm
Number of arms: 3
Hooks parallel adjustable: No
Drive hexagonal width: 17 mm
Double-sided hooks: No
Towing force (max.) [t]: 3
Spindle thread size: M 14x1.5 x 155
Hook brake available: No
Span when pulled externally (max) [mm].: 90 mm
Spindle-slide protection: No
Automatic pressing: Yes
Clamping depth usable b [mm]: 120 mm

Brand GEDORE
01041101
EAN 4036976104479
Supplier number GEDORE 8004220

Frequently asked questions about this product

Answered by specialists

What is the clamping capacity of this universal puller?: The Gedore 1.13/1 has a maximum clamping width of 90 mm and a clamping depth of 120 mm.
How many legs does this puller have?: It features 3 legs for even force distribution.
Is this Gedore puller hydraulic?: No, this is a mechanical puller operated via a threaded spindle.
What applications is the Gedore 1.13/1 suitable for?: It is designed for removing pulleys, gears, wheels, and ball bearings.
What is the maximum pulling force of this puller?: The maximum pulling force is 3.0 t.
