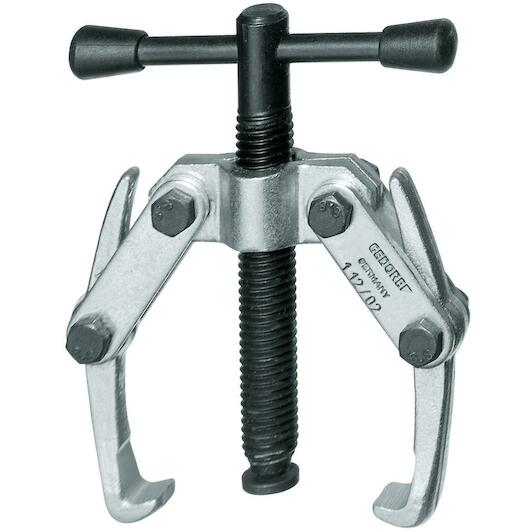

GEDORE 1.12/00 battery terminal puller 2-armed 70x80 mm - 1628402

Show more features

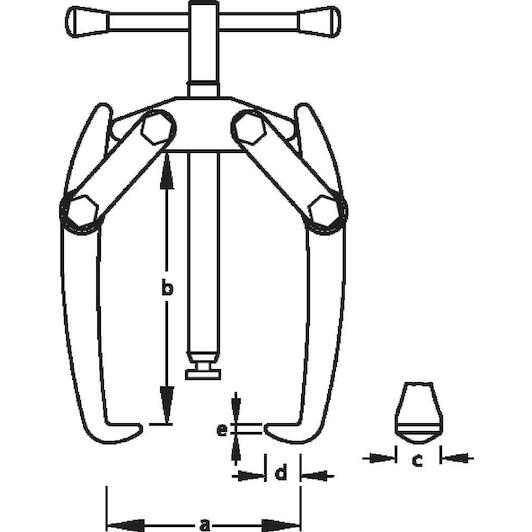

Max. width

70 mm

Puller type

Universel puller

Number of hooks

2

Hydraulical

No

Max. height

80 mm

Double-sided hooks

No

Clamping bracket available

No

Hook foot thickness at end e1 [mm]

2.0 mm

Overall length [mm]

135 mm

Hook foot depth usable d2 [mm]

8 mm

Suitable for use with a hydraulic spindle

No

Screws included

No

Hook foot width on the gripping surface c1 [mm]

14 mm

Number of arms

2

Reversible arms available

No

Hook brake available

No

Towing force (max.) [t]

0.5

Spindle thread size

M 10x1.5 x 100

Span when pulled externally (max) [mm].

70 mm

Spindle-slide protection

No

Automatic pressing

Yes

Clamping depth usable b [mm]

80 mm
