GEDORE 1.07/K-1-SE 200S trigger set 3-arm 90x100/200 mm - 1745158

Name: GEDORE 1.07/K-1-SE 200S trigger set 3-arm 90x100/200 mm - 1745158
Brand: GEDORE
SKU: 41231125
Price: 378.8 EUR
Availability: PreOrder

Supplier number: GEDORE 1745158 | EAN 4036976112825

Recommended Retail Price €662.28

378.80 tax incl.

€313.06 excl. VAT (incl. all environmental contributions)

On order: delivered from 06/10/2026

set

Ordered before 20:00 - delivered as of 06/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Versatile pulling with Gedore

Practical benefits

Flexible two-way setup: With two- and three-arm cross-beams, you quickly configure the tool to match your extraction task.
Reach into narrow spaces: The ultra-slim forged legs allow you to securely grip components in extremely tight or confined areas.
Dual reach depth options: Thanks to interchangeable legs in 100 mm and 200 mm lengths, you handle varying component positions easily.

In a nutshell

The right choise for

With the Gedore 1.07/K-1-SE 200 s puller set, you can easily remove stubborn bearings, gears, and pulleys without damaging shafts or housings. Thanks to the included two- and three-arm cross-beams and two spindles, you quickly configure the puller to match your specific extraction job. The six forged quick-release legs feature an ultra-slim design, giving you a secure grip in tight, hard-to-reach spaces. With a clamping spread of up to 90 mm and reaches of 100 mm and 200 mm, you achieve balanced pulling power of up to 2.5 t at 100 mm and 2.0 t at 200 mm, all organized in a sturdy case.

Product information FAQ

€378.80

tax incl.

Key features according to our expert

Product description

In plastic case
Very narrow forged hook feet, particularly suitable for hard-to-reach places
Quick and uncomplicated setting and adjustment thanks to quick-release hooks
Includes 2 spindles, a 2- and 3-arm crossbar and three narrow quick-release hooks each with a clamping depth of 100 and 200 mm

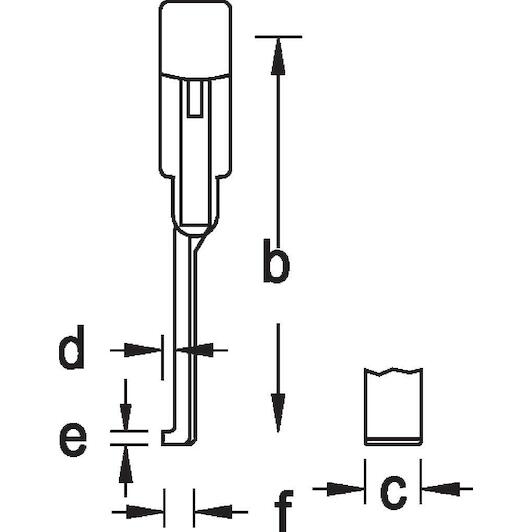

Clamping depth 100 mm = hook foot thickness (e) 3.7 mm
Clamping depth 200 mm = hook foot thickness (e) 2.0 mm

All Features

Anti-slip protection on the spindle available: No
Quick-release lever available: Yes
Hook foot thickness at end e1 [mm]: 3.7 mm
Scale present: No
Hook foot depth usable d2 [mm]: 7.5 mm
Suitable for use with a hydraulic spindle: No
Screws included: No

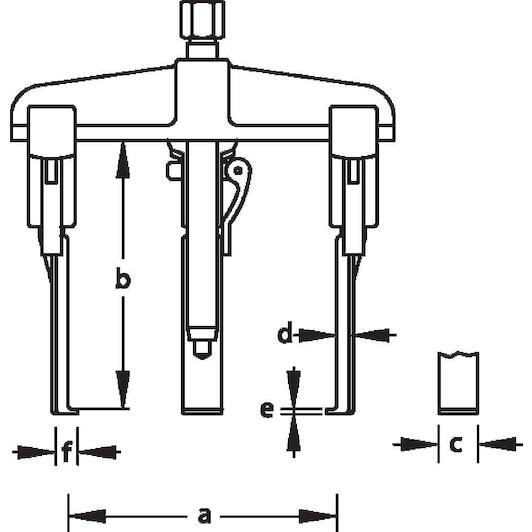

Spanning depth usable: 100 - 200 mm
Hook foot width on the gripping surface c1 [mm]: 27 mm
Crochet foot thickness at end 2 e1 [mm]: 2.0 mm
Hooks parallel adjustable: No
Reversible arms available: No
Towing force (max.) [t]: 2,5
Drive hexagonal width: 17 mm
Spindle thread size: M 14x1.5 x 140
Hook brake available: No
Traction force (max.) 2 [t]: 2,0
Span when pulled externally (max) [mm].: 90 mm
Spindle-slide protection: No
Spindle-point interchangeable: No
Implementation: in plastic case
Clamping bracket available: No

Brand GEDORE
41231125
EAN 4036976112825
Supplier number GEDORE 1745158

Frequently asked questions about this product

Answered by specialists

What is the clamping spread and reach of this puller set?: The set provides a maximum clamping spread of 90 mm and includes legs for clamping reaches of 100 mm and 200 mm.
Can the puller be configured as both 2-leg and 3-leg?: Yes, the set includes one 2-arm cross-beam, one 3-arm cross-beam, and 2 spindles to adapt to your application.

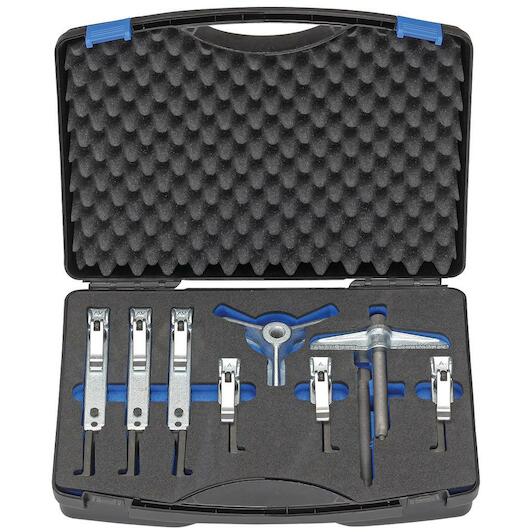

What is included in the Gedore set?: It includes 2 cross-beams (2-arm and 3-arm), 2 spindles, and 6 quick-release legs (3 of 100 mm and 3 of 200 mm) in a plastic case.
What is the maximum tractive force of this puller?: At a 100 mm reach, the maximum tractive force is 2.5 t; at a 200 mm reach, it is 2.0 t.
Are the legs suitable for narrow spaces?: Yes, the forged feet are very slim, making them ideal for hard-to-reach and confined areas.
