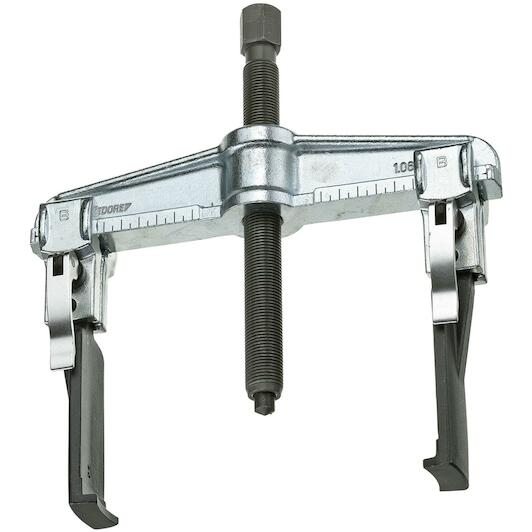

GEDORE 1.06/S2A-E universal quick release lever 2-armed with slim hooks 200x150 mm - 2015730

GEDORE
Supplier number: GEDORE 2015730 | EAN 4036976123487
Recommended Retail Price €322.34
190.20 tax incl.
€157.19 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Ordered before 20:00 - delivered as of 10/10/2026
  • Free shipping
  • Delivery by DHL
✆ Talk to a specialist


Product information
€190.20
tax incl.

Product information

Key features according to our expert

  • Max. width: 200 mm
  • Number of hooks: 2
  • Max. height: 150 mm
  • Hydraulical: No
  • Puller type: Universel puller

Product description

  • Very narrow forged hooks
  • Particularly suitable for hard-to-reach places
  • If required, the spindle can be replaced by a hydraulic spindle (see table)
  • Quick and uncomplicated setting and adjustment thanks to quick-release hooks

All Features

Max. width
200 mm
Number of hooks
2
Max. height
150 mm
Hydraulical
No
Puller type
Universel puller
Clamping bracket available
No
Quick-release lever available
Yes

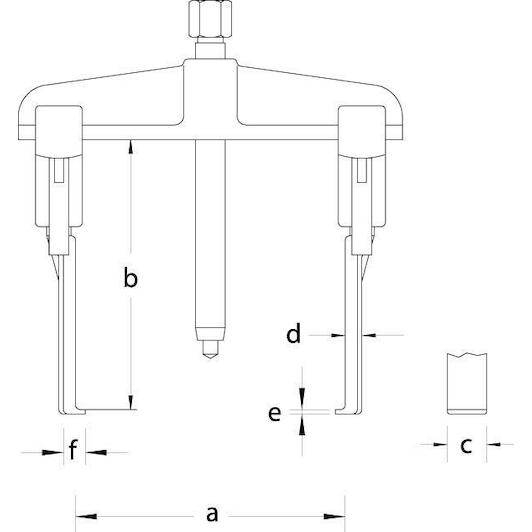

Hook foot thickness at end e1 [mm]
5.0 mm
Reversible arms available
No
Hook foot depth usable d2 [mm]
7 mm
Suitable for use with a hydraulic spindle
No
Hydraulic spindle optional
1.06/HSP1
Screws included
No
Hook foot width on the gripping surface c1 [mm]
40 mm
Number of arms
2
Hooks parallel adjustable
No
Scale present
x
Drive hexagonal width
22 mm
Anti-slip protection on the spindle available
No
Towing force (max.) [t]
5
Spindle thread size
G 1/2 x 210
Hook brake available
No
Span when pulled externally (max) [mm].
200 mm
Total hook foot depth [mm]
15 mm
Spindle-slide protection
No
Spindle-point interchangeable
No
Clamping depth usable b [mm]
150 mm
  • Brand GEDORE
  • EAN 4036976123487
  • Supplier number GEDORE 2015730
