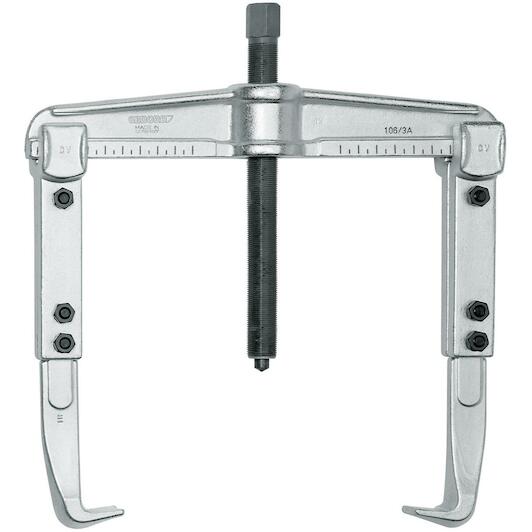

GEDORE 1.06/4-5 universal puller 2-arm 520x500 mm - 8112460

Name: GEDORE 1.06/4-5 universal puller 2-arm 520x500 mm - 8112460
Brand: GEDORE
SKU: 01040748
Price: 486.6 EUR
Availability: PreOrder

Supplier number: GEDORE 8112460 | EAN 4036976103731

Recommended Retail Price €823.84

486.60 tax incl.

€402.15 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

High pulling force for deep components

Practical benefits

Gedore for demanding jobs: You can effortlessly remove heavy bearings and pulleys using this forged two-arm puller built for high mechanical loads.
Extended clamping reach: With a 500 mm clamping reach and 520 mm width, you easily access parts mounted deep on long shafts.
Versatile pulling options: You can switch between internal and external pulling setups by simply reversing the arms on the crossbeam.

In a nutshell

The right choise for

With the Gedore 1.06/4-5 universal puller, you effortlessly remove large gears, pulleys, and bearings mounted deeply on long shafts. Featuring a generous 520 mm spread and a 500 mm reach, it easily accesses heavy components that standard pullers cannot reach. The robust drop-forged steel design delivers controlled mechanical pulling power for demanding maintenance jobs. An integrated scale on the crossbeam helps you position both legs symmetrically and centered for balanced load application. You can quickly switch between external and internal pulling by reversing the legs on the beam. The puller can also be upgraded with a matching hydraulic spindle whenever required.

Product information FAQ

€486.60

tax incl.

Key features according to our expert

Max. width: 520 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 500 mm

Product description

Robust, die-forged design
The spindle can be replaced by a hydraulic spindle if required (see table)
Extended hooks
Adjustment scale for even setting of the hooks
Enables centric, force-optimised retraction even with very high retraction forces
Exchangeable hooks for different spindle depths are available as accessories
Suitable for use with a hydraulic spindle (see table)

All Features

Max. width: 520 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 500 mm
Spindle surface coating: Nitrocharacterised
Reversible arms available: Yes
Hooks parallel adjustable: Yes
Number of arms: 2
Spindle (usable) thread length [mm].: 310 mm
Hook foot width on the gripping surface c1 [mm]: 36 mm
Screws included: Yes
Suitable for use with a hydraulic spindle: Yes
Spindle take-up: G1"
Hydraulic spindle optional: 1.06/HSP3
Spindle spanner width: 36 mm
Hook foot depth usable d2 [mm]: 28 mm
Overall length [mm]: 600 mm
Hook foot thickness at end e1 [mm]: 6.5 mm
Quick-release lever available: No
Clamping bracket available: No
Anti-slip protection on the spindle available: No
Drive hexagonal width: 36 mm
Spindle-slide protection: No
Implementation: 2-arm with extended hooks
Spindle-point interchangeable: No
Span when pulled externally (max) [mm].: 520 mm
Towing force (max.) [t]: 10
Span for internal pulling a2 (max.) [mm]: 600 mm
Span for internal pull a2 (min.) [mm]: 185 mm
Use/application: For removing drive pulleys, wheels, ball bearings, etc.
Load of the entire tractor (max.) [t].: 10 t
Hook brake available: No
Spindle print piece type: Spitze
Spindle thread size: G1x310mm
Clamping depth usable b [mm]: 500 mm

Brand GEDORE
01040748
EAN 4036976103731
Supplier number GEDORE 8112460

Frequently asked questions about this product

Answered by specialists

What are the maximum dimensions of this puller?: The Gedore 1.06/4-5 provides a maximum clamping spread of 520 mm and a reach of 500 mm.
Can this puller be used for internal and external pulling?: Yes, reversing the pulling legs allows you to use the tool as both an internal and external puller.
Is this model compatible with a hydraulic spindle?: Yes, the standard mechanical spindle can be upgraded with a matching Gedore hydraulic spindle.
How do you adjust the legs evenly?: The cross-beam features an integrated adjustment scale to position both legs symmetrically and centered.
What tasks is this universal puller suitable for?: It is designed for safely removing heavy drive pulleys, gear wheels, and ball bearings.
