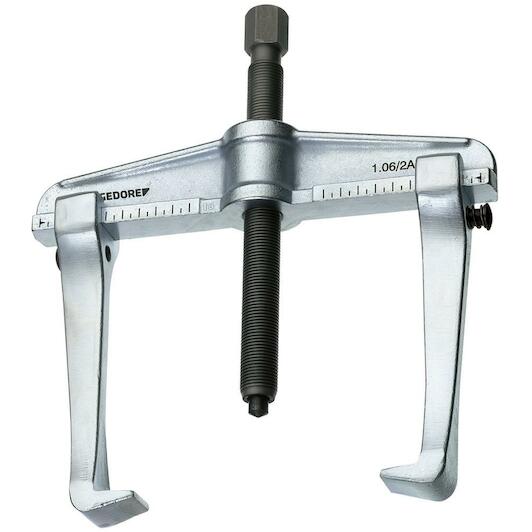

Product description
- Robust, die-forged design
- One-piece forged hooks
- With hook brake - protection against unwanted movement of the hooks
- Hook can be moved on the crossbeam at the push of a button
- If required, the spindle can be replaced by a hydraulic spindle (see table)
- Adjustment scale for even setting of the hooks
- Enables centric, force-optimised retraction even with very high retraction forces
- Exchangeable hooks for different spindle depths are available as accessories
Key features according to our expert
-
Max. width: 430 mm
-
Puller type: Universel puller
-
Number of hooks: 2
-
Hydraulical: No
-
Max. height: 200 mm
Specifications / All features
-
Brand:
GEDORE
-
41895871
-
EAN:
4036976121018
-
Supplier number:
GEDORE 1956396
- Max. width
- 430 mm
- Puller type
- Universel puller
- Number of hooks
- 2
- Hydraulical
- No
- Max. height
- 200 mm
- Spindle surface coating
- Nitrocharacterised
- Reversible arms available
- Yes
- Hooks parallel adjustable
- No
- Number of arms
- 2
- Hook foot width on the gripping surface c1 [mm]
- 36 mm
- Screws included
- No
- Suitable for use with a hydraulic spindle
- Yes
- Hydraulic spindle optional
- 1.06/HSP2
- Hook foot depth usable d2 [mm]
- 32 mm
- Scale present
- x
- Hook foot thickness at end e1 [mm]
- 5.0 mm
- Quick-release lever available
- No
- Clamping bracket available
- No
- Anti-slip protection on the spindle available
- No
- Spindle thread size
- G 3/4 x 280
- Towing force (max.) [t]
- 7,5
- Drive hexagonal width
- 27 mm
- Spindle print piece type
- Spitze
- Hook brake available
- Yes
- Span for internal pull a2 (min.) [mm]
- 125 mm
- Span for internal pulling a2 (max.) [mm]
- 430 mm
- Span when pulled externally (max) [mm].
- 340 mm
- Spindle-slide protection
- No
- Spindle-point interchangeable
- No
- Implementation
- 2-armed
- Clamping depth usable b [mm]
- 200 mm
