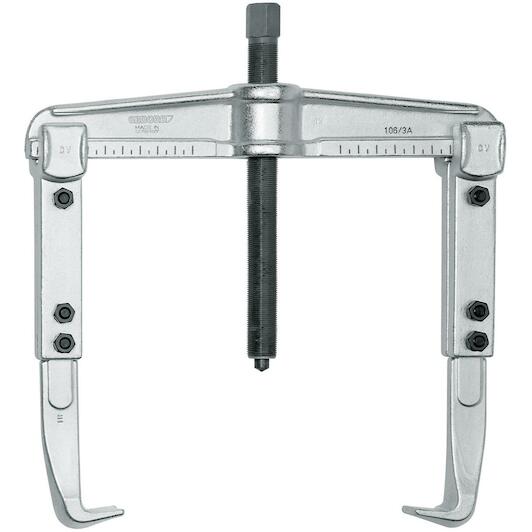

GEDORE 1.06/3A-4 universal puller 2-arm 350x400 mm - 8109160

Name: GEDORE 1.06/3A-4 universal puller 2-arm 350x400 mm - 8109160
Brand: GEDORE
SKU: 01040740
Price: 373.6 EUR
Availability: PreOrder

Supplier number: GEDORE 8109160 | EAN 4036976103472

Recommended Retail Price €625.35

373.60 tax incl.

€308.76 excl. VAT (incl. all environmental contributions)

On order: delivered from 03/11/2026

Ordered before 20:00 - delivered as of 03/11/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Heavy pulling reach with Gedore

Practical benefits

Deep reach for recessed parts: Extended arms with a 400 mm clamping reach allow you to effortlessly access deeply seated components.
Centered and balanced force: The integrated scale on the cross-beam helps you adjust the legs symmetrically for optimal pull alignment.
Versatile internal external pulling: By reversing the direction of the legs, you quickly convert between internal and external extraction tasks.

In a nutshell

The right choise for

With the Gedore 1.06/3A-4 2-arm universal puller, you remove tight pulleys, bearings, and gears safely and with full control. Featuring extended legs with a maximum clamping depth of 400 mm and a spread of up to 350 mm, it easily reaches deep-seated components on shafts. The integrated adjustment scale on the cross-beam ensures balanced, centered leg alignment, allowing you to apply up to 7.5 tonnes of pulling force with optimal stability. Reversing the legs instantly converts the tool between external and internal pulling tasks. For demanding heavy-duty jobs, this mechanical puller can also be retrofitted with an optional hydraulic spindle to keep your maintenance work running smoothly.

Product information FAQ

€373.60

tax incl.

Key features according to our expert

Max. width: 350 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 400 mm

Product description

Robust, die-forged design
The spindle can be replaced by a hydraulic spindle if required (see table)
Extended hooks
Adjustment scale for even setting of the hooks
Enables centric, force-optimised retraction even with very high retraction forces
Exchangeable hooks for different spindle depths are available as accessories
Suitable for use with a hydraulic spindle (see table)

All Features

Max. width: 350 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 400 mm
Spindle surface coating: Nitrocharacterised
Reversible arms available: Yes
Hooks parallel adjustable: Yes
Number of arms: 2
Spindle (usable) thread length [mm].: 280 mm
Hook foot width on the gripping surface c1 [mm]: 36 mm
Screws included: Yes
Suitable for use with a hydraulic spindle: Yes
Spindle take-up: G3/4"
Hydraulic spindle optional: 1.06/HSP2
Spindle spanner width: 27 mm
Hook foot depth usable d2 [mm]: 28 mm
Scale present: x
Overall length [mm]: 640 mm
Hook foot thickness at end e1 [mm]: 6.5 mm
Quick-release lever available: No
Clamping bracket available: No
Anti-slip protection on the spindle available: No
Drive hexagonal width: 27 mm
Spindle-slide protection: No
Implementation: 2-arm with extended hooks
Spindle-point interchangeable: No
Span when pulled externally (max) [mm].: 350 mm
Towing force (max.) [t]: 7,5
Span for internal pulling a2 (max.) [mm]: 420 mm
Span for internal pull a2 (min.) [mm]: 125 mm
Use/application: For removing drive pulleys, wheels, ball bearings, etc.
Load of the entire tractor (max.) [t].: 7,5 t
Hook brake available: No
Spindle print piece type: Spitze
Spindle thread size: G3/4x280mm
Clamping depth usable b [mm]: 400 mm

Brand GEDORE
01040740
EAN 4036976103472
Supplier number GEDORE 8109160

Frequently asked questions about this product

Answered by specialists

What is the maximum clamping capacity of this universal puller?: The puller provides a maximum clamping spread of 350 mm and a reach depth of 400 mm.
Can this puller be used for internal pulling?: Yes, reversing the legs allows you to use it for both internal and external pulling tasks.
Does this model come with a hydraulic spindle?: No, it features a mechanical spindle, but it can be retrofitted with an optional hydraulic spindle.
What is the maximum pulling force of this tool?: The maximum pulling capacity is 7.5 tonnes.
How do you adjust the puller legs evenly?: The cross-beam includes an adjustment scale for centered, uniform positioning of the legs.
