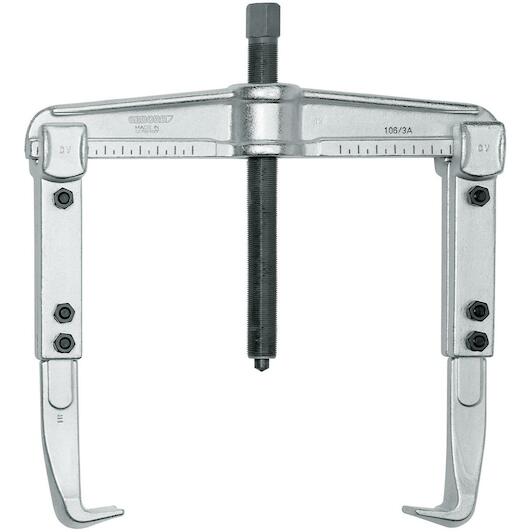

Product description
- Robust, die-forged design
- The spindle can be replaced by a hydraulic spindle if required (see table)
- Extended hooks
- Adjustment scale for even setting of the hooks
- Enables centric, force-optimised retraction even with very high retraction forces
- Exchangeable hooks for different spindle depths are available as accessories
- Suitable for use with a hydraulic spindle (see table)
Key features according to our expert
-
Max. width: 130 mm
-
Puller type: Universel puller
-
Number of hooks: 2
-
Hydraulical: No
-
Max. height: 200 mm
Specifications / All features
-
Brand:
GEDORE
-
01040710
-
EAN:
4036976103410
-
Supplier number:
GEDORE 8108430
- Max. width
- 130 mm
- Puller type
- Universel puller
- Number of hooks
- 2
- Hydraulical
- No
- Max. height
- 200 mm
- Spindle surface coating
- Nitrocharacterised
- Reversible arms available
- Yes
- Hooks parallel adjustable
- Yes
- Number of arms
- 2
- Spindle (usable) thread length [mm].
- 140 mm
- Hook foot width on the gripping surface c1 [mm]
- 22 mm
- Screws included
- Yes
- Suitable for use with a hydraulic spindle
- No
- Spindle take-up
- M14x1.5mm
- Spindle spanner width
- 17 mm
- Hook foot depth usable d2 [mm]
- 12 mm
- Scale present
- x
- Overall length [mm]
- 275 mm
- Hook foot thickness at end e1 [mm]
- 3.0 mm
- Quick-release lever available
- No
- Clamping bracket available
- No
- Anti-slip protection on the spindle available
- No
- Drive hexagonal width
- 17 mm
- Spindle-slide protection
- No
- Implementation
- 2-arm with extended hooks
- Spindle-point interchangeable
- No
- Span when pulled externally (max) [mm].
- 130 mm
- Towing force (max.) [t]
- 3
- Span for internal pulling a2 (max.) [mm]
- 180 mm
- Span for internal pull a2 (min.) [mm]
- 70 mm
- Use/application
- For removing drive pulleys, wheels, ball bearings, etc.
- Load of the entire tractor (max.) [t].
- 3 t
- Hook brake available
- No
- Spindle print piece type
- Spitze
- Spindle thread size
- M14x1.5x140mm
- Clamping depth usable b [mm]
- 200 mm
