FUTECH

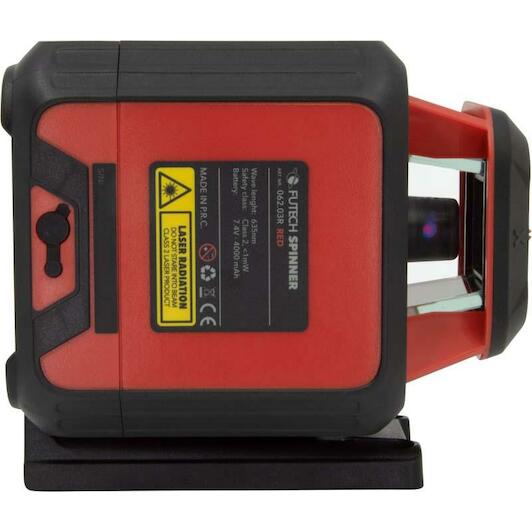

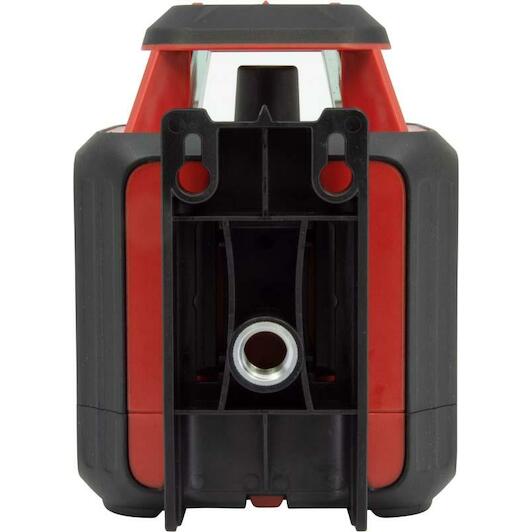

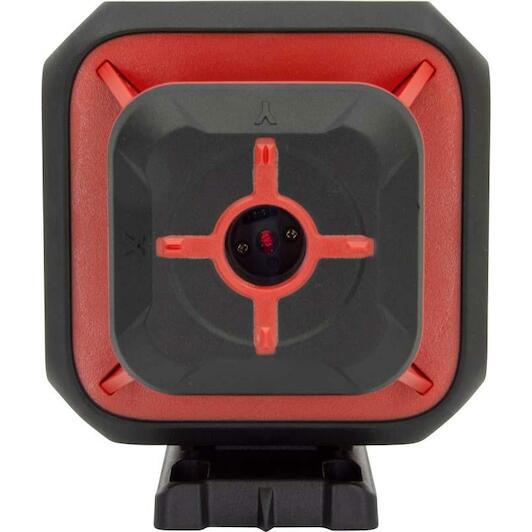

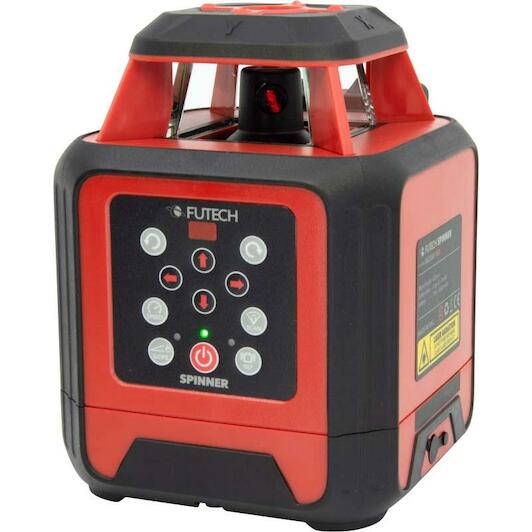

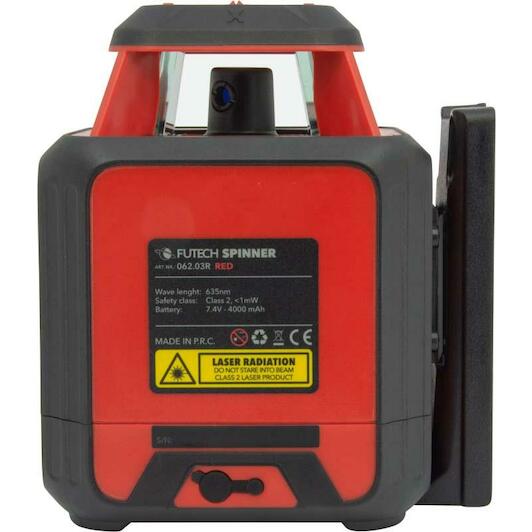

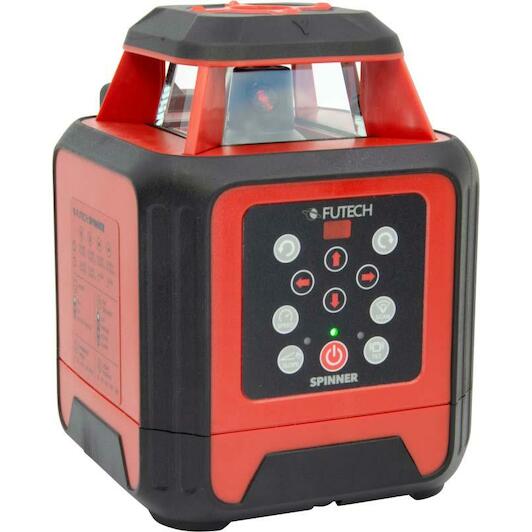

FUTECH SPINNER rotation laser red in case + Quattro MM receiver - 062.03R.4M.CS

Recommended Retail Price €1,069.12
882.36 tax incl.
€729.22 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/08/2026
set

  • Ordered before 20:00 - delivered as of 29/08/2026
  • Free shipping
  • Delivery by DHL

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

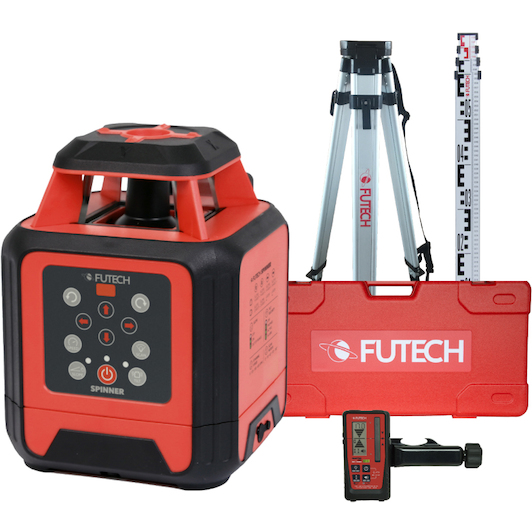

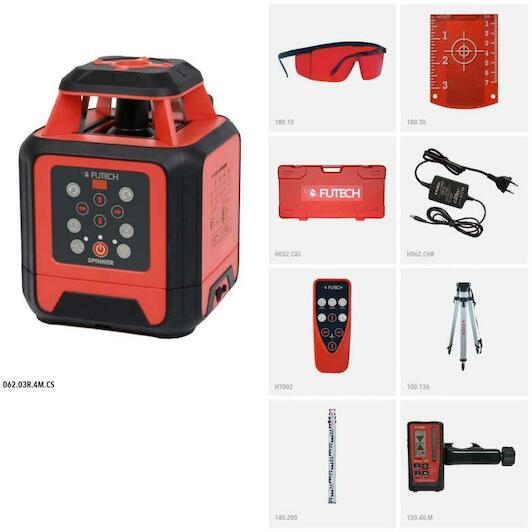

Scope of delivery

  • Rotation laser red
  • Red case for Para / Para DS / Para One (H052.CAS)
  • Remote control for Spinner (H7002)
  • Magnetic target plate red (180.30)
  • Laser glasses red (180.10)
  • Charger (H062.CHR)
  • Tripod aluminium 136cm 5/8" (100.136)
  • Telescopic staff 230cm (140.230)
  • Quattro MM receiver (150.40.M)

Product description

  • Accuracy: 1.5mm / 10m - Range (with receiver): 2x 250m - Dust and water resistance: IP55 - Battery: LI-ION 7.4V - 2x 4000mAh - Levelling: Motorised levelling
Key features according to our expert
  • Laser type: Rotating laser
  • Weight: 1,38 kg
  • With tripod: Yes
  • Projection (laser beams): circle horizontal or vertical
  • Self-levelling range: 5,0000 °
  • Number of points: 2
  • Tripod thread: 5/8"
  • Type of system case: Not applicable
  • Protection class IP: IP55
  • Laser class: Class 2
  • Accuracy: 0,15 mm/m
  • Colour (laser beams): Red
  • Max. range with receiver: 2x 250 m
  • Supplied in: Case
Specifications / All features
  • Brand: FUTECH
  • EAN: 5420073803875
  • Supplier number: FUTECH 062.03R.4M.CS
Laser type
Rotating laser
Weight
1,38 kg
With tripod
Yes
Projection (laser beams)
circle horizontal or vertical
Self-levelling range
5,0000 °
Number of points
2
Tripod thread
5/8"
Type of system case
Not applicable
Protection class ip
IP55
Laser class
Class 2
Accuracy
0,15 mm/m
Colour (laser beams)
Red
Max. range with receiver
2x 250 m
Supplied in
Case
Transport protection for the pendulum
Not applicable
Number of 90° angles
4
Number of vertical lines
Not applicable
Charger integrated in mains connection
Yes
Tilt function
Yes
Dust and water resistance
IP55
Range (with receiver)
2x 250m
Number of laser points per line
Not applicable
Leveling
Motor levelling
Number of laser diodes
2
Colour laser beams
Red
Maximum adjustable inclination (x-axis / y-axis)
±10%
Slope function
Manual + Electronic
Laser frequency (in receiver mode)
Not applicable
Mains connection
Yes
Remote control
Infrared
Pendulum lock (for manual ramps)
Not applicable
Plumb
Yes
Built-in screw for tripod
5/8"
Scan function
0°, 10°, 45°, 90°, 180°
Rotations per minute
0, 120, 300, 600 RPM
Number of horizontal lines
Not applicable
