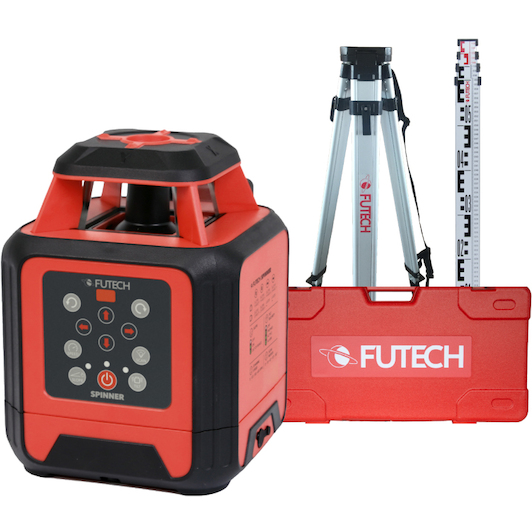

Scope of delivery
- 062.03R.CS - Spinner Red case set
- H052.CAS -Red case for Para / Para DS / Para One
- 180.30 -Magnetic target plate Red
- 180.10 -Laser glasses Red
- H062.CHR -Charger (Spinner)
- H7002 -Functional remote control for Spinner
- 100.136 -Stand Aluminium 136cm - 5/8
- 140.230 -Telescopic staff 230cm
Product description
- Accuracy: 1.5mm / 10m - Range (with receiver): 2x 250m - Dust and water resistance: IP55 - Battery: LI-ION 7.4V - 2x 4000mAh - Levelling: Motorised levelling
Key features according to our expert
-
Laser type: Rotating laser
-
Type of system case: Not applicable
-
Tripod thread: 5/8"
-
Projection (laser beams): circle horizontal or vertical
-
Self-levelling range: 5,0000 °
-
Weight: 1,38 kg
-
With tripod: Yes
-
Supplied in: Case
-
Laser class: Class 2
-
Accuracy: 0,15 mm/m
-
Colour (laser beams): Red
-
Max. range with receiver: 2x 250 m
-
Protection class IP: IP55
Specifications / All features
-
Brand:
FUTECH
-
08131928
-
EAN:
5420073803912
-
Supplier number:
FUTECH 062.03R.CS
- Laser type
- Rotating laser
- Type of system case
- Not applicable
- Tripod thread
- 5/8"
- Projection (laser beams)
- circle horizontal or vertical
- Self-levelling range
- 5,0000 °
- Weight
- 1,38 kg
- With tripod
- Yes
- Supplied in
- Case
- Laser class
- Class 2
- Accuracy
- 0,15 mm/m
- Colour (laser beams)
- Red
- Max. range with receiver
- 2x 250 m
- Protection class ip
- IP55
- Transport protection for the pendulum
- Not applicable
- Number of 90° angles
- 4
- Number of vertical lines
- Not applicable
- Charger integrated in mains connection
- Yes
- Tilt function
- Yes
- Dust and water resistance
- IP55
- Range (with receiver)
- 2x 250m
- Number of laser points per line
- Not applicable
- Leveling
- Motor levelling
- Colour laser beams
- Red
- Number of laser diodes
- 2
- Maximum adjustable inclination (x-axis / y-axis)
- ±10%
- Slope function
- Manual + Electronic
- Pendulum lock (for manual ramps)
- Not applicable
- Laser frequency (in receiver mode)
- Not applicable
- Mains connection
- Yes
- Remote control
- Infrared
- Plumb
- Yes
- Built-in screw for tripod
- 5/8"
- Scan function
- 0°, 10°, 45°, 90°, 180°
- Rotations per minute
- 0, 120, 300, 600 RPM
- Number of horizontal lines
- Not applicable
