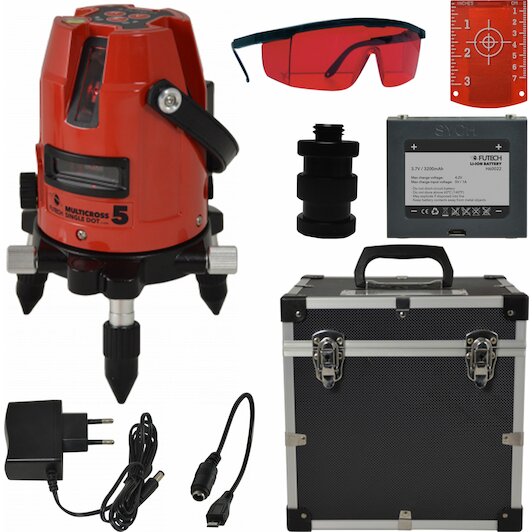

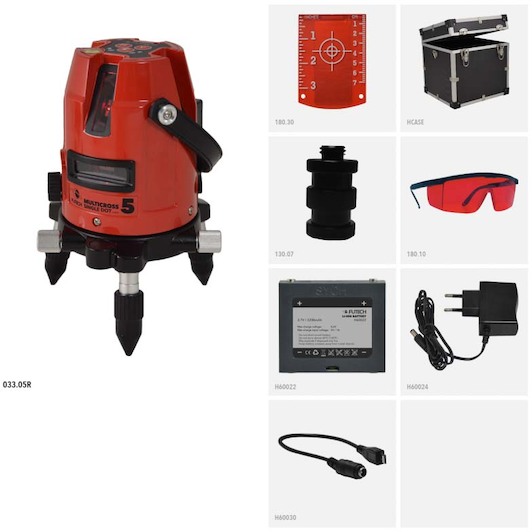

Scope of delivery
- 033.05R - Multicross 5 SD Red

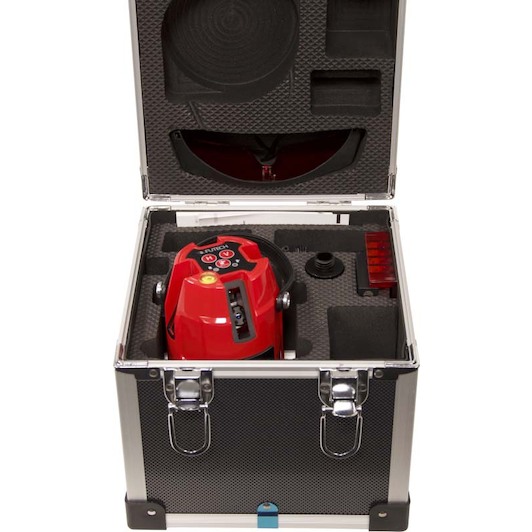

- HCASE -Small black case for cross line laser
- 180.30 -Magnetic target plate Red
- 180.10 -Laser glasses Red
- 130.07 -Tripod adapter 5/8
- H60024 -Adapter for MC3/MC5 SV - MC3/MC5 DL
- H60022 -Li-Ion battery 3.7V 3200mAh
- H60030 -Connector for charger H60024

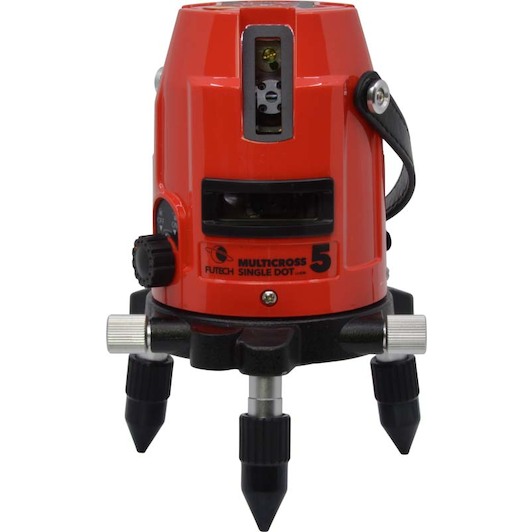

Product description

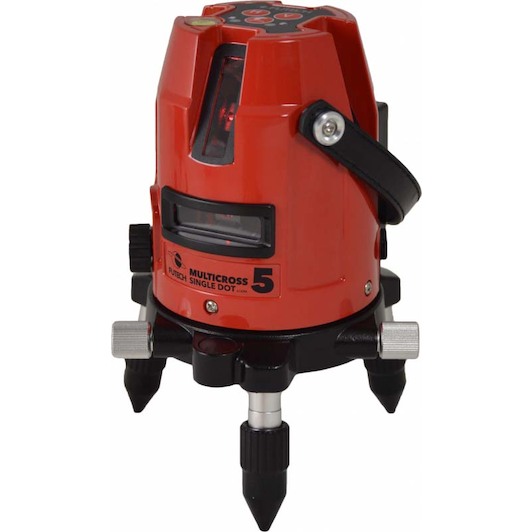

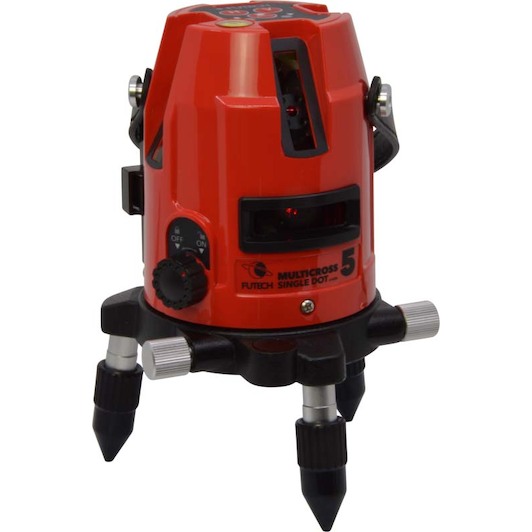

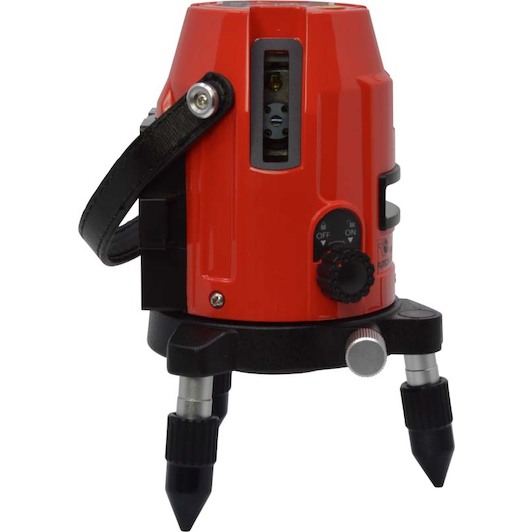

- Cross line laser with 1 red horizontal line and 4 vertical lines (= plumb above and below + 4 90° angles).
- Each line has 1 laser dot for better visibility even in high-light or outdoor environments.
- Pendulum levelling with 1.5mm/10m accuracy and range of 50m with receiver (optional).
- Fine adjustment rotates laser precisely around plumb.
- Mains adapter ensures unlimited autonomy.
Key features according to our expert
-
Laser type: Cross line laser
-
Type of system case: Not applicable
-
Tripod thread: 5/8"
-
Projection (laser beams): 2x 360°, 2 vertical + 1 line horizontal
-
Self-levelling range: 2,0000 °
-
Weight: 0,79 kg
-
With tripod: No
-
Supplied in: Case
-
Laser class: Class 3R
-
Accuracy: 0,15 mm/m
-
Colour (laser beams): Red
-
Max. range with receiver: 50 m
-
Protection class IP: IP54
Specifications / All features
-
Brand:
FUTECH
-
03066304
-
EAN:
5420073802571
-
Supplier number:
FUTECH 033.05R
- Laser type
- Cross line laser
- Type of system case
- Not applicable
- Tripod thread
- 5/8"
- Projection (laser beams)
- 2x 360°, 2 vertical + 1 line horizontal
- Self-levelling range
- 2,0000 °
- Weight
- 0,79 kg
- With tripod
- No
- Supplied in
- Case
- Laser class
- Class 3R
- Accuracy
- 0,15 mm/m
- Colour (laser beams)
- Red
- Max. range with receiver
- 50 m
- Protection class ip
- IP54
- Visibility
- 4
- Transport protection for the pendulum
- Yes
- Number of 90° angles
- 4
- Storage temperature
- -20°C - +60°C
- Number of vertical lines
- 4
- Charger integrated in mains connection
- Yes
- Tilt function
- No
- Dust and water resistance
- IP54
- Range (with receiver)
- 2x 50m
- Number of laser points per line
- 1
- Leveling
- Pendulum levelling
- Colour laser beams
- Red
- Number of laser diodes
- 5
- Maximum adjustable inclination (x-axis / y-axis)
- Not applicable
- Slope function
- No
- Pendulum lock (for manual ramps)
- No
- Laser frequency (in receiver mode)
- 10KHz
- Operating temperature
- -10°C - +50°C
- Batteries
- LI-ION (included) or 4x AA
- Remote control
- No
- Wind function
- No
- Plumb
- Yes
- Built-in screw for tripod
- 5/8"
- Scan function
- No
- Rotations per minute
- Not applicable
- Number of horizontal lines
- 1
