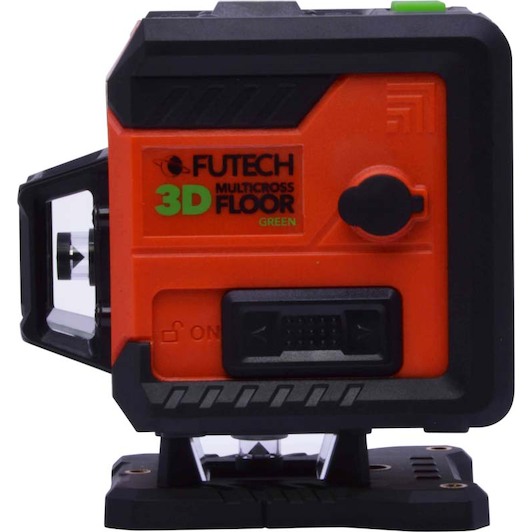

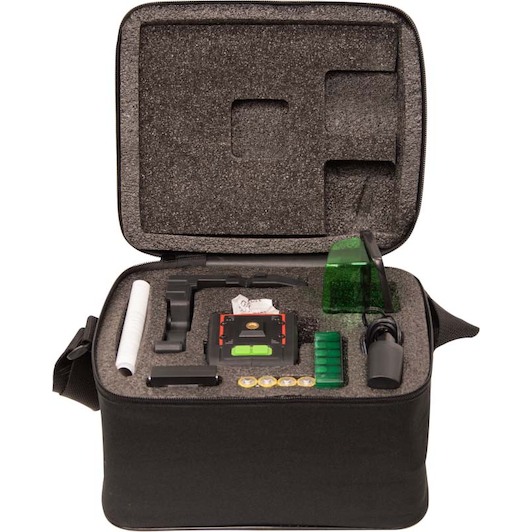

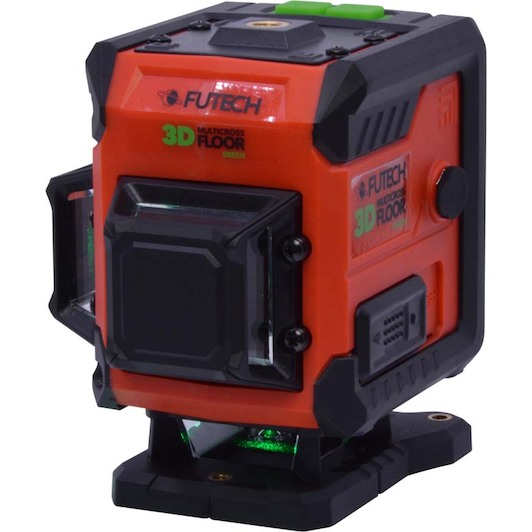

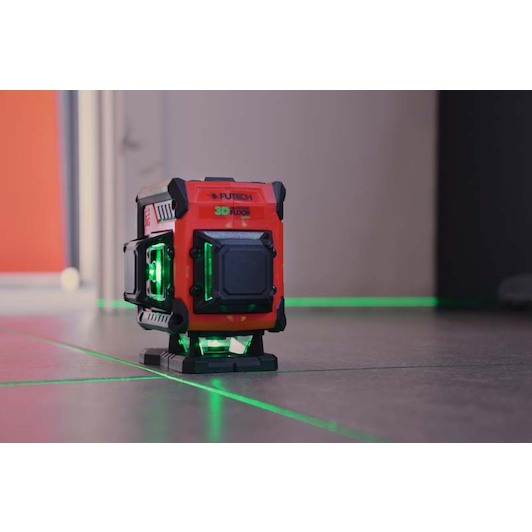

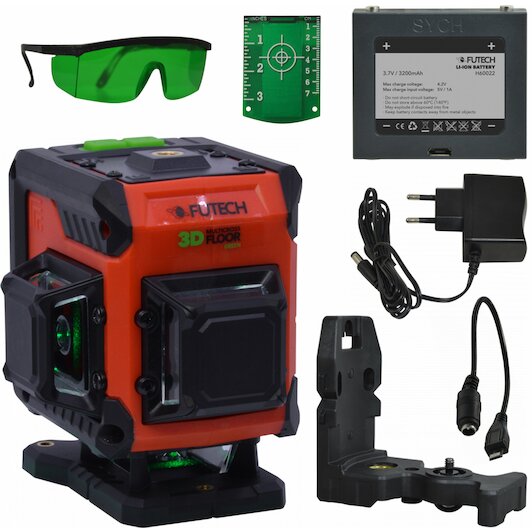

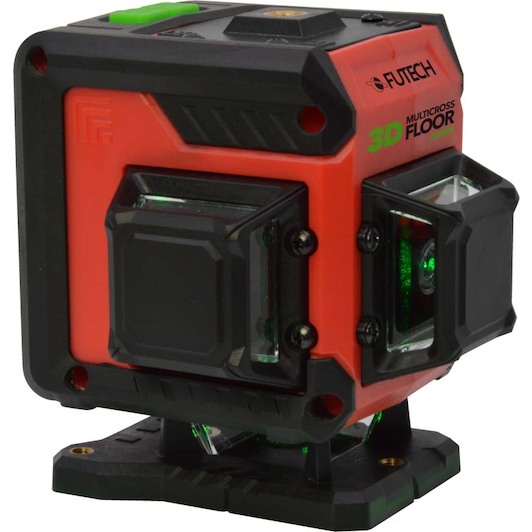

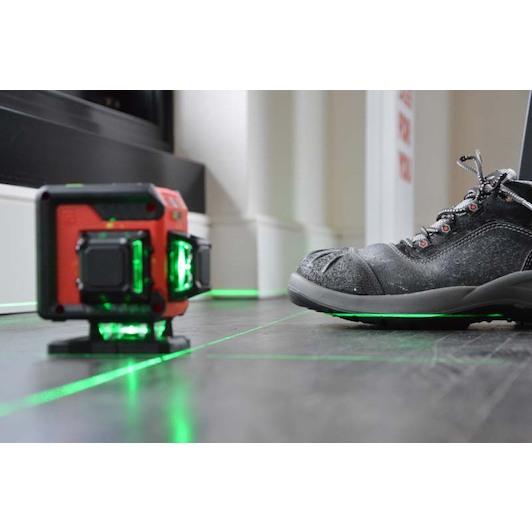

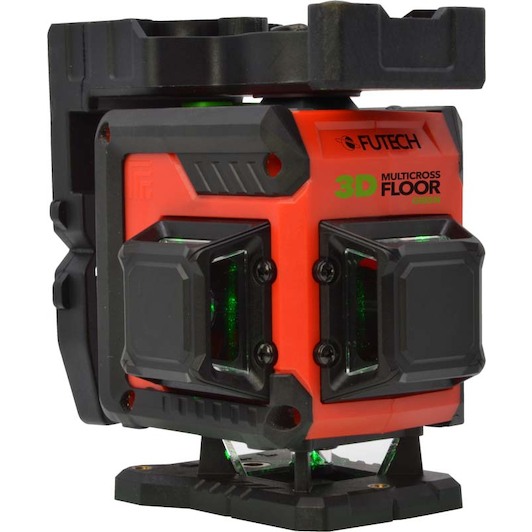

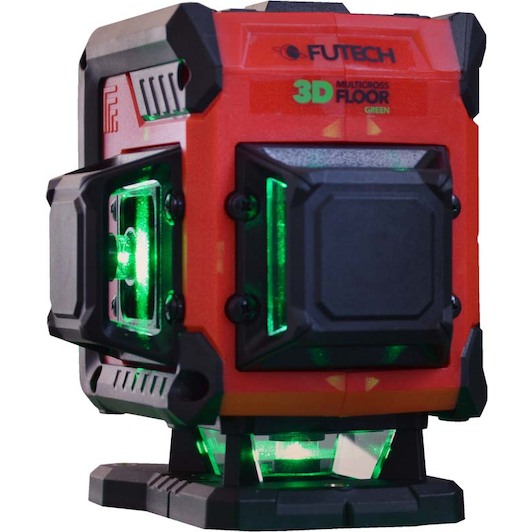

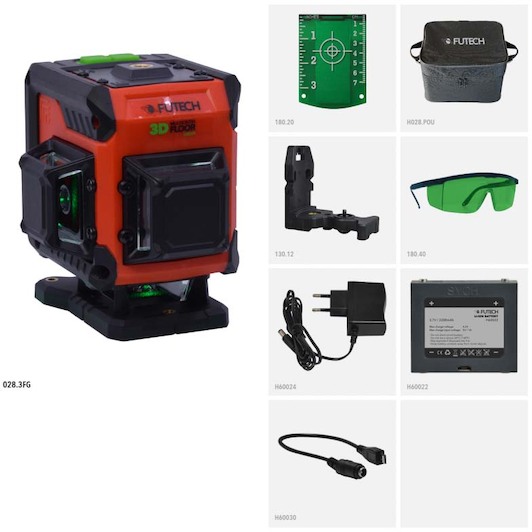

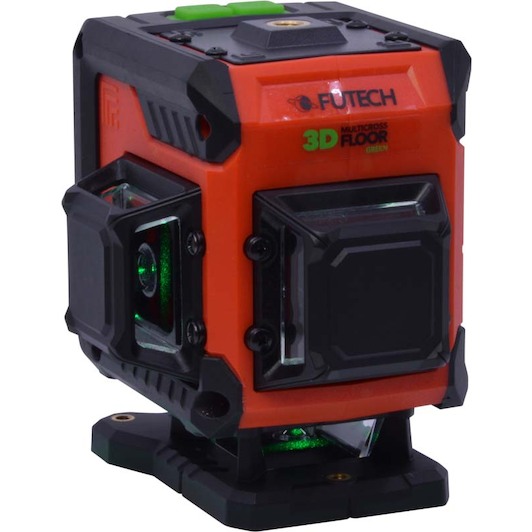

Scope of delivery 028.3FG - Multicross 3D Floor H028.POU -Bag small 180.20 -Magnetic target plate green 180.40 -Laser glasses green 130.12 -Small wall mount with magnet 1/4" H60022 -Li-Ion battery 3.7V 3200mAh H60024 -Adapter for MC3/MC5 SV - MC3/MC5 DL H60030 -Connector for charger H60024 Product description Small 3D Cross Line Laser with 1 green horizontal line all around - only 13mm above the ground - and 2 vertical lines all around ( plumb above and below and 4 90° angles). Pendulum levelling with accuracy of 2mm/10m and range of 2x 50m with (optional) receiver. Li-ion battery with mains adapter/charger.
Key features according to our expert
Laser type: Cross line laser
Type of system case: Not applicable
Tripod thread: 1/4"
Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
Self-levelling range: 3,0000 °
Weight: 0,39 kg
With tripod: No
Supplied in: Bag
Laser class: Class 2
Accuracy: 0,2 mm/m
Colour (laser beams): Green
Max. range with receiver: 50 m
Protection class IP: IP54
Specifications / All features
Brand:
FUTECH
03096298
EAN:
5420073802748
Supplier number:
FUTECH 028.3FG
Laser type
Cross line laser
Type of system case
Not applicable
Tripod thread
1/4"
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Self-levelling range
3,0000 °
Weight
0,39 kg
With tripod
No
Supplied in
Bag
Laser class
Class 2
Accuracy
0,2 mm/m
Colour (laser beams)
Green
Max. range with receiver
50 m
Protection class ip
IP54
Visibility
3
Transport protection for the pendulum
Yes
Number of 90° angles
4
Number of vertical lines
4
Charger integrated in mains connection
Yes
Tilt function
No
Range (with receiver)
2x 40m
Leveling
Pendulum levelling
Colour laser beams
Green
Number of laser diodes
3
Maximum adjustable inclination (x-axis / y-axis)
+/- 45°
Slope function
Manual
Pendulum lock (for manual ramps)
Yes
Laser frequency (in receiver mode)
10KHz
Remote control
No
Wind function
No
Plumb
Yes
Built-in screw for tripod
1/4"
Scan function
No
Rotations per minute
Not applicable
Number of horizontal lines
4
