FLUKE

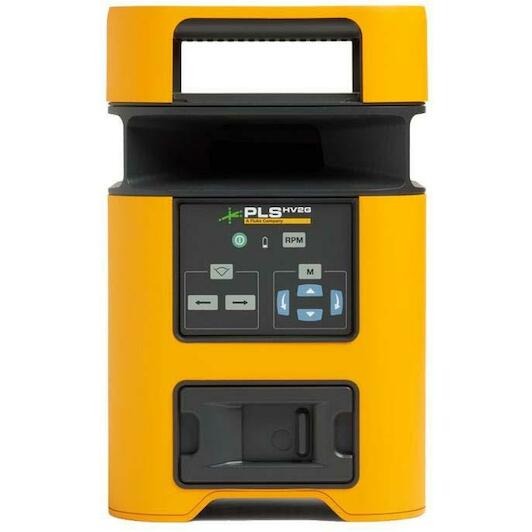

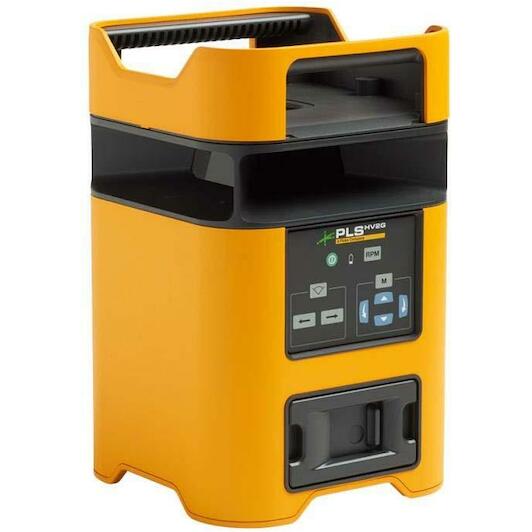

FLUKE PLS HV2G Z single rotary laser spirit level with green line in case - 5022535

This product has been discontinued.

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Scope of delivery

  • Compartment for alkaline batteries and 4 D batteries
  • Carrying case

Product description

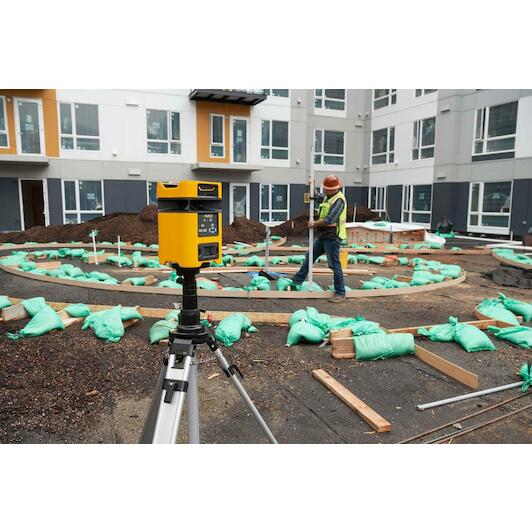

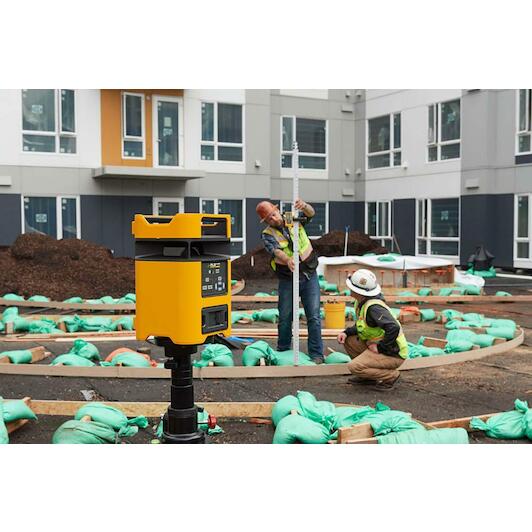

  • Designed for use on construction sites, with a robust, ergonomic design and simplified operation.
  • Emits a laser line in the horizontal or vertical plane. In the vertical position, the HV2G also emits a point laser.
  • Ideal for use by contractors, electricians, plumbers and landscapers, both indoors and outdoors.
  • Emits a self-levelling horizontal laser plane and can be used in vertical position to emit a vertical laser plane.

Key features

  • Accuracy: approx. 2.2 mm at 30 m
  • Laser axis: green horizontally and vertically
  • Working range: up to 30 m
  • Working range with XLD: up to 300 m
  • Drop test of 1 metre
  • IP67-certified protected against dust and immersion in water to a depth of up to 1 m (or 3.3 ft) for up to 30 minutes

Applications

  • Setting foundations and baseboards
  • Concrete pouring
  • Terracing plasterboard
  • Framing of contours
  • Installation of suspended ceilings
Key features according to our expert
  • Laser type: Rotating laser; Dot laser
  • Max. range with receiver: 2x 150 m
  • Colour (laser beams): Green
  • Accuracy: 0,07 mm/m
  • Laser class: Class 2
  • Protection class IP: IP67
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 3 kg
  • Max. range: 2x 15 m
  • Self-levelling range: 5,0000 °
  • Projection (laser beams): circle horizontal or vertical
  • Tripod thread: 5/8"
  • With tripod: No
Specifications / All features
  • Brand: FLUKE
  • EAN: 0095969878470
  • Supplier number: FLUKE 5022535
Laser type
Rotating laser; Dot laser
Max. range with receiver
2x 150 m
Colour (laser beams)
Green
Accuracy
0,07 mm/m
Laser class
Class 2
Protection class ip
IP67
Supplied in
Case
Type of system case
Not applicable
Weight
3 kg
Max. range
2x 15 m
Self-levelling range
5,0000 °
Projection (laser beams)
circle horizontal or vertical
Tripod thread
5/8"
With tripod
No
