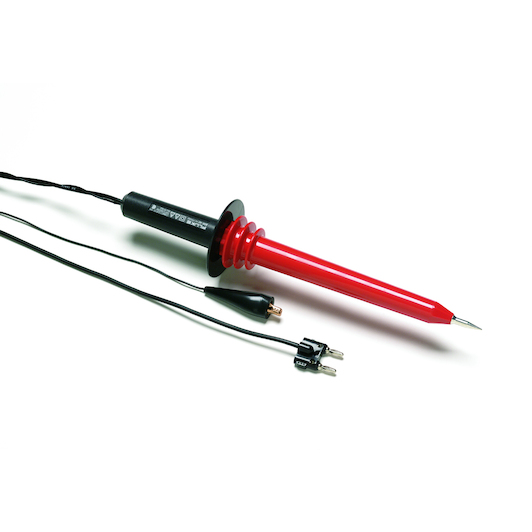

FLUKE 80K-15 high-voltage measuring probe - 618113

Product description:

• The 80K-15 is a high voltage measurement probe designed to extend the measurement capability of an AC/DC voltage meter to 15,000 volts peak AC or DC overvoltage category I.
• This means that the probe can only be used to make measurements on circuits with limited energy in the equipment.
• Examples include high voltage in televisions and photocopiers.
• DO NOT use this probe to measure high voltage at power distribution devices.
• The probe offers high accuracy when used with a voltage meter with 10 Megohm input impedance.

Key features

• Voltage range: 0 to 15 kV DC or peak AC, 10 kV RMS AC
• Basic accuracy: DC +/- 2% 60Hz: +/- 5%
• Distribution ratio: 1000:1
• Safety standards: IEC 1010-2-031:1993, Type B, 40 kV DC or peak AC, 28 kV RMS AC, Overvoltage Category I (voltage derived from limited power transformer).
• Input resistance: 1000 Megohm
• Required input resistance meter: 10 Megohm
