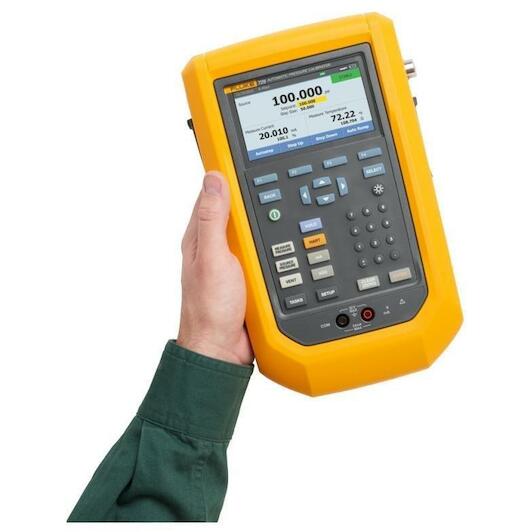

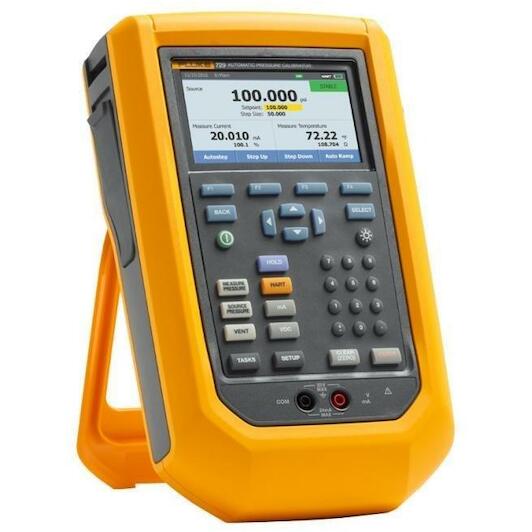

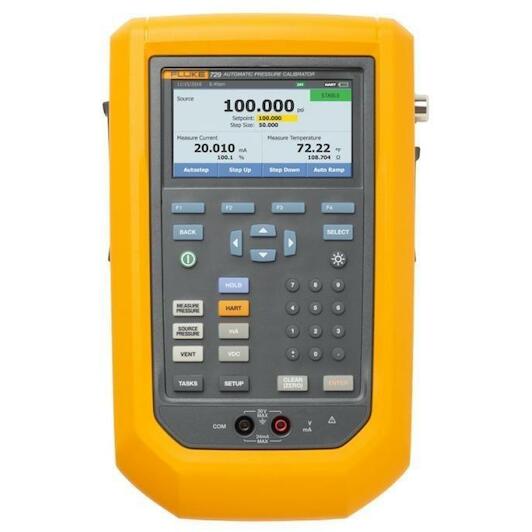

FLUKE 729 300G automatic pressure calibrator (20 bar) - 4856976

Product description:

• The Fluke 729 automatic pressure calibrator was designed specifically with process engineers in mind.
• This pressure calibrator simplifies the pressure calibration process and provides faster, more accurate test results.
• Technicians know that calibrating pressure can be a time-consuming task, but the 729 makes it easier than ever: with an electric pump that automatically builds and regulates pressure in one easy-to-use, rugged, portable package.
• The 729 is the ideal portable pressure calibrator, on which you simply type in a desired pressure value after which the calibrator automatically pumps until the desired set point is reached.
• Then the internal fine adjustment automatically stabilises the pressure to the requested value.
• The Fluke 729 can also automatically test multiple pressure measurement points and automatically document the results.
• Calibration is as simple as typing in the initial and final pressure, the number of measurement points and the tolerance level.
• The 729 does the rest.
• Built-in HART communication capabilities allow adjustment of mA settings of HART transmitters, light HART configurations and tuning to applied 0% and 100% values.
• Upload and manage documented calibration results with the DPCTrack2 calibration management software, making it easy to manage your instruments, create scheduled checks and reports, and manage calibration data.
• With a choice of three ranges, namely 30 psi (2 bar, 200 kPa), 150 psi (10 bar, 1 MPa) and 300 psi (20 bar, 2 MPa), the Fluke 729 automatic pressure calibrators are designed to perform when and where you need them.

Key features:

• Automatic pressure build-up and control up to 300 psi
• Easy process documentation with built-in test templates
• Automatic internal pressure fine-tuning
• Measure, generate and simulate signals from 4 to 20 mA
• 24V loop power supply for powering transmitters for tests
• Clear two/three-channel colour graphic display
• HART communication for testing smart HART transmitters
• Built-in leak test for checking test fixtures for leakage
• Rugged portable design with standard 3-year warranty
• Compatibility with the Fluke Connect app
• Temperature measurements with optional 720RTD thermocouple
• V DC measurement for testing transmitters with outputs from 1 V DC to 5 V DC
• Compatible with 700-series and 750-series pressure modules
• Uploading of documented test results to DPCTrack2 calibration management software
• Innovative semi-rigid carrying case specially designed for on-site work
• Automatic pressure generation and control up to 300 psi (20 bar, 2MPa) Enter a pressure and the 729 automatically pumps until the desired pressure is reached.
• Enter a test template and the 729 will automatically pump and document a multi-point pressure calibration test.
• Easy documentation of calibration using defined templates for transmitters and switches.
• Type in the start and end pressures and number of measurement points.
• The 729 does the rest by documenting the applied pressure, measured mA values and % error for each measurement point.
• The bright colour graphic display warns in red of test results that are out of tolerance.
• Automatic internal pressure fine-tuning helps compensate for small leaks in hoses and test settings.
• There is then no need to turn a fine regulator to compensate for leaks, eliminating the need for manual pumping and manual fine-tuning of test set-ups.
• HART communication allows adjustment of the mA output signal, of applied values and of the pressure zero point of HART pressure transmitters.
• You can perform light configuration tasks such as changing a transmitter tag, measurement units and range setting.
• Other supported HART tasks include setting fixed mA output signals for troubleshooting, reading equipment configuration and variables, and reading equipment diagnostic data.
• Measure mA signals on transmitter outputs, generate and simulate mA signals for testing I/Ps and other mA loop devices.
• andIncludes a 24V loop power supply for testing and powering transmitters during individual tests while the transmitters are disconnected from the control system.
• Rugged portable designWith [26]
• Fluke Connect compatibility lets a user perform remote monitoring tasks using the Fluke Connect mobile app, as well as manage and store pressure measurements and log events.
• Share measurements using ShareLive video calls and emails.
• Temperature measurements with optional 720RTD thermocouple to perform transfer calibrations.
• Pressure measurements with old 700-series and new 750-series pressure modules when different pressure measurement ranges or resolutions are desired.
• Support in different languages:: select a language in the instrument configuration programme.
• HART communication commands are limited to English, according to HART equipment descriptors and protocol.
• Semi-rigid carrying case is specially designed for on-site work, to store test hoses, fittings, test leads and small hand tools for on-site pressure calibrations.
