Scope of delivery
- Electrical pressure calibrator, 30 PSIG
- Test leads with alligator clips
- Printed version of user manual and user manual on CD-ROM in 14 languages
- Moisture separator
- Carrying case
- 1/4 inch NPT to 1/4 inch ISO adapter
- Accessory and hose set with (2) 1/8 inch quick-fit adapters and 1 metre hose
- Traceable calibration certificate
Product description:

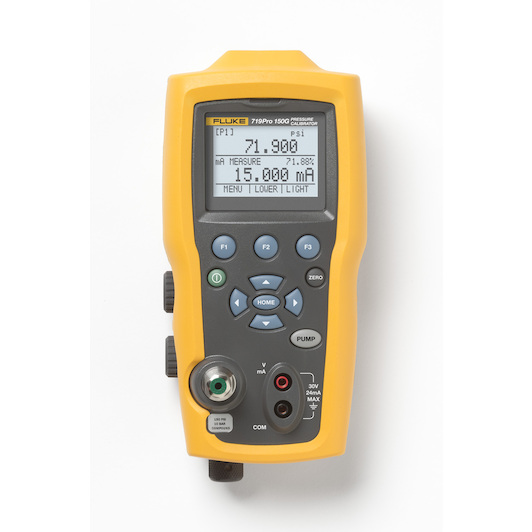

- The 719Pro includes a fully functional loop calibrator that generates, simulates and measures mA signals and more, making it the ideal measurement tool for calibrating high-precision transmitters, pressure switches and pressure gauges.
- Have the ultimate measurement flexibility with a large backlit screen displaying three parameters simultaneously:
- Pressure measurement from internal or external sensor
- Generated/simulated or measured mA values
- Temperature measured by optional RTD thermocouple
Key features
- Unique integrated electric pump for one-handed pressure calibration
- Easily test pressure switches using switch test function
- Fine regulator for precise pressure adjustment for easy and accurate pressure calibration
- Highly accurate, high performance (0.025 %) for calibration of reference pressure transmitters
- Pressure ranges of 30 PSI, 150 PSI and 300 PSI
- Programmable pump limit pressure calibrator:
- Prevents overpressure
- Allows user to set desired pressure values for pumping
- Expansion of pressure measuring range using one of 29 750P pressure modules
- Pump cleaning vents reduce pump failures caused by moisture and liquids
- Unit is equipped with a moisture separator to reduce the risk of liquid damage in high-risk applications
- Accurate temperature measurements with optional RTD thermocouple
