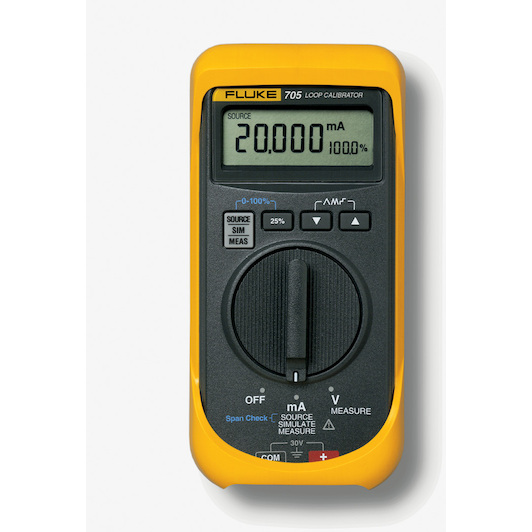

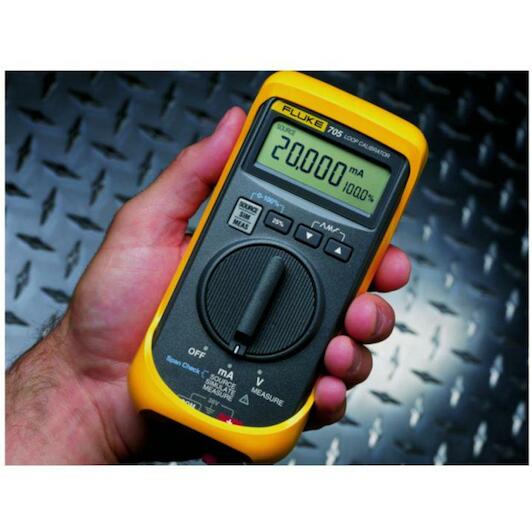

FLUKE 705 loop calibrator - 665091

Scope of delivery

• Fluke 705 Loop calibrator
• AC70A alligator clips
• C10 protective yellow holster with Flex-Stand
• Instruction sheet
• TL75 test lead kit designed to safety standards
• NIST traceable calibration report and data

Key features:

• Powerful loop calibrator offering a highly cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops.
• Provides simultaneous mA and % readout for fast, easy interpretation of readings.
• Delivers mA accuracy of 0.02%.
• Features push button with 25% steps for quick, easy linearity checks

Other features:

• mA sourcing, simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous display of mA and %
• Selectable step or ramp outputs
• 24 V loop power supply with mA measurement
• 0-28 VDC measurement to monitor loop voltage
• Easy battery replacement without opening the housing
• Includes "span check" for quick confirmation of zero and span.
• Provides selectable slow ramp, fast ramp and step to provide smooth outputs for valve rotation and loop functional testing.
• Includes a 24-volt internal loop power supply, allowing you to power and read a transmitter simultaneously without a digital multimeter.
• Operates on a single 9 V battery that can be easily replaced without breaking the calibration seal.
• Offers 0 - 20 mA or 4 - 20 mA standard start-up modes.
• Comes with a protective yellow holster with storage for test leads and a three-year warranty.
