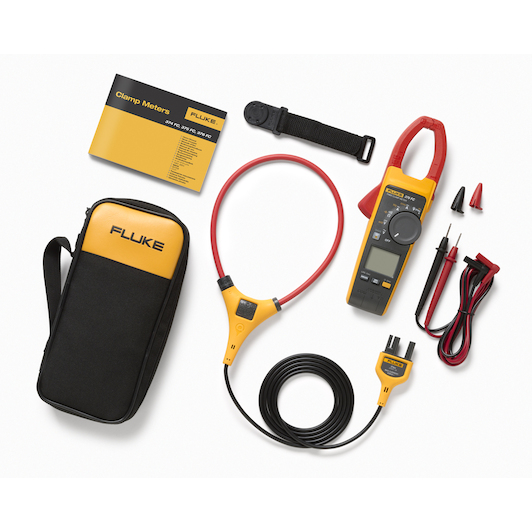

Scope of delivery
- iFlex flexible current clamp, 18 inch
- TPAK magnetic suspension strap
- Carrying case
- TL75 measuring leads
- Two AA alkaline batteries
- Laminated instruction card
- Safety data sheet
Product description
- Connect your meter to your smartphone, with Fluke Connect Measurements
- Read read readings from a safe distance on your phone, while wearing less personal protective equipment and your meter bears all the risk
- Store results directly on your phone and in the cloud
- Record intermittent faults while performing other tasks, thanks to the Fluke 376 FC's logging capabilities
- Create and share reports from location via email, or make real-time calls with the ShareLive video call feature

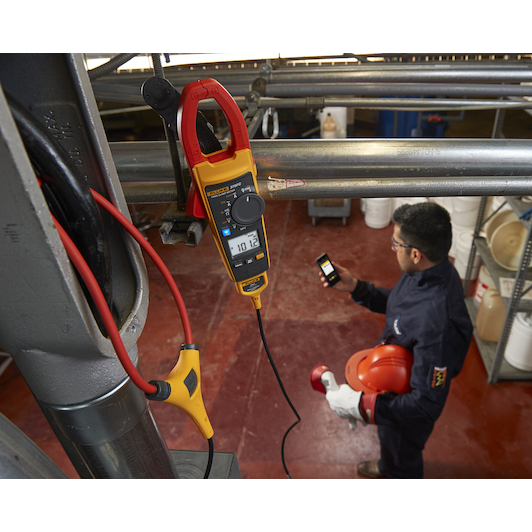

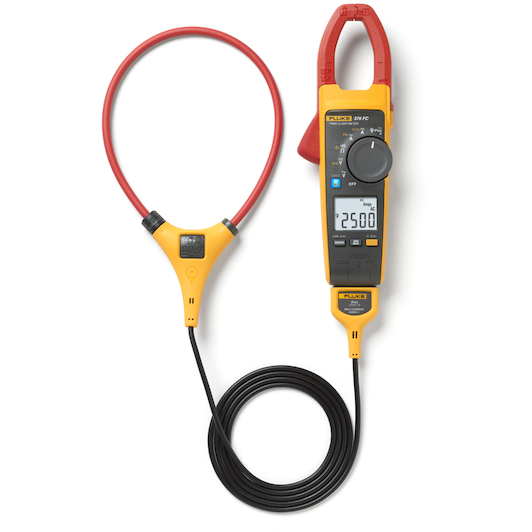

- The iFlex flexible current clamp extends the measurement range to 2500 A AC; it provides access to thick conductors in tight spaces (included)
- TPAK magnetic suspension strap (included)
- Integrated low-pass filter for frequency-controlled drives, for accurate measurements on motor drives
- Fluke proprietary inrush current measurement technology that filters noise from the circuit and records motor inrush current exactly as determined by the circuit protection.
- Safety class CAT IV 600 V, CAT III 1000 V
- Three-year warranty
Key features
- 1000 A AC and DC current measurement
- 2500 A AC current measurement with the iFlex flexible current clamp
- 1000 V AC and DC voltage measurement
- True-RMS voltage and current for accurate measurements on non-linear signals
- Frequency measurement up to 500 Hz with both jaws and iFlex
- Resistance measurement up to 60 kOhm with through-bell test
- Min/Max/Average recording and inrush current measurement for automatic recording of variations
- Measurement range of 500 mV DC for use with other accessories
- 1000µF capacitance measurement
