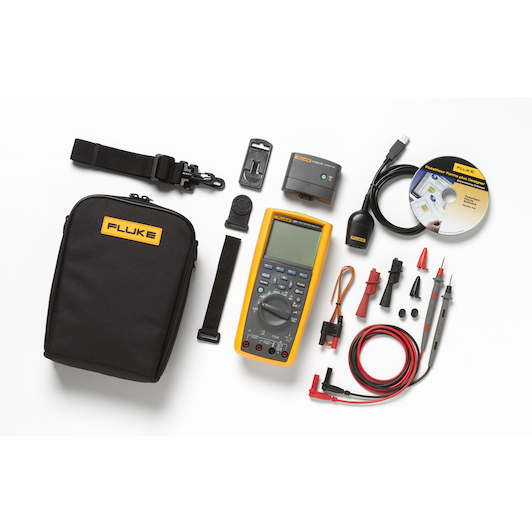

Scope of delivery
- Fluke-289 True-RMS electronic multimeter with logging function and TrendCapture
- FlukeView Forms software and cable
- 80BK-A thermocouple probe
- CAT III 1000 V 10 A modular test leads (red and black)
- CAT II 1000 V 10 A modular measuring probes (red and black) and caps
- CAT III 1000 V 10 A crocodile clips (red and black)
- C280 carrying case to protect the instrument and store accessories
- Set of banana plugs
- TPAK magnet pendant for hands-free use
- Fluke ir3000 FC infrared connector for Fluke Connect communication
Product description:
- Achieve maximum productivity with the combination kit of the Fluke 289 and FlukeView Forms software.
- The Fluke 289 with its built-in data logger and TrendCapture feature lets you detect hard-to-find, intermittent faults by monitoring certain equipment functions while performing other work in the meantime.
- With the FlukeView Forms software, you can overlay data from six different meters or time periods to demonstrate cause-and-effect relationships or for condition monitoring purposes.
- Turn your data into clear graphs and tables, for professional reporting or for analysing individual readings or series of readings.
- The 289 is compatible with the Fluke ir3000 FC infrared connector, so you can share live measurements on your iOS or Android device using the Fluke Connect Mobile App.
- The 289/FVF combination kit, which now includes the ir3000 FC connector, gives you a practical and affordable option of performing predictive maintenance.
Key features:
- NEW ? Now compatible with Fluke Connect Mobile App and all Fluke FC-enabled measuring instruments thanks to the included ir3000 FC infrared connector.
- NEW ? Show your team what you see immediately with the ShareLive video call feature using the Fluke Connect Mobile App and the ir3000 FC wireless connector.
- TrendCapture graphically displays a logged data session to quickly determine if anomalies have occurred.
- Zooming in on trends offers unprecedented possibilities for viewing and analysing TrendCapture data; up to 14 times zoom in.
- The selectable AC filter (smoothing mode) allows a more stable reading to be displayed when the input signal changes rapidly or contains a lot of noise.
- Adjustable recording thresholds and Auto Hold by defining a percentage change for measurements at the start of a new event.

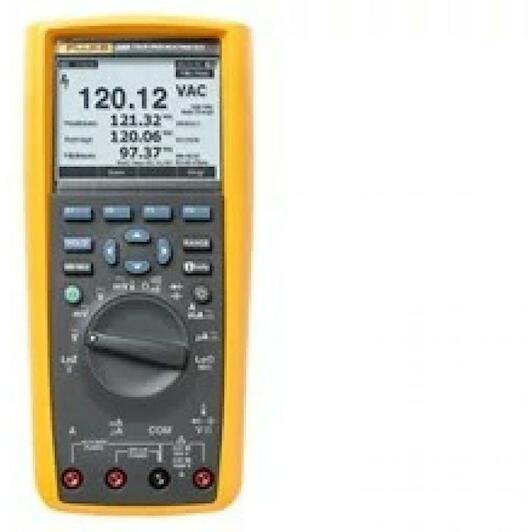

- Large dot matrix display, 1/4 VGA, up to 50,000 counts and with white backlight.
- Log function with extended memory for independent monitoring of signals for a defined period of time.
- With the integrated TrendCapture function, you can view a graphical display of recorded measurement values without a PC.
- Store up to as many as 15,000 recorded events.
- Multiple log sessions can be saved before downloading to a PC.
- Two connections for 50-ohm range with 1 milliohm resolution and 10 mA source current.
- Useful for measuring the resistance of motor windings and comparing differences in them or for measuring contact resistance.
- Low-pass filter for accurate simultaneous voltage and frequency measurements in frequency-controlled drives and other devices that cause electrical disturbances.
- LoZ Volts.
- Low input impedance, prevents erroneous readings due to 'phantom voltage'.
- Also recommended for testing for presence or absence of (mains) voltage.
- Internal auxiliary screens for measurement functions.
- Uncertain about a function? Go to that function and press the 'i' key.
Other features
- Real-time clock for automatic timing of stored measurement values.
- Relative mode for eliminating test lead resistance when measuring low-resistance or capacitance values.
- True-RMS AC voltage and current for accurate measurements on non-linear signals.
- Measures up to 10 A (20 A for 30 seconds).
- Capacitance range 100 mF.
- Peak recording for recording transients at speeds up to 250 ?s.
- Premium measuring leads and crocodile clips included.
- Banana plugs included.
- Optional magnetic hanging clip for easy attachment and reading while leaving your hands free for other tasks.
- FlukeView Forms software lets you document, store and analyse individual readings or a range of readings, then turn them into professional-looking documents.
- Limited lifetime warranty.
