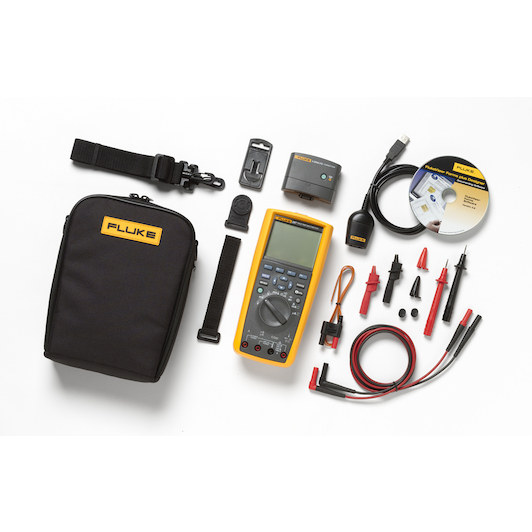

Scope of delivery

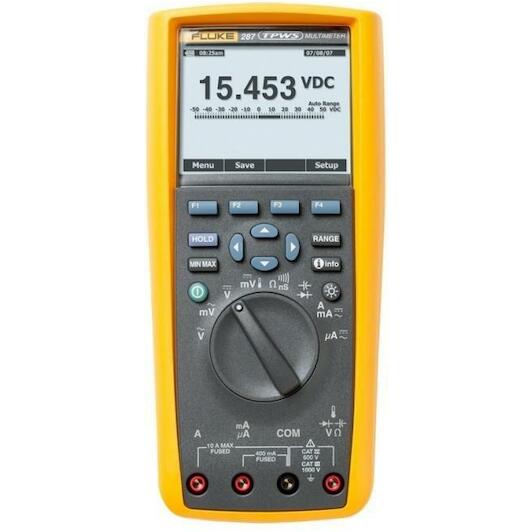

- Fluke-287 True-RMS electronic multimeter with logging function and TrendCapture
- FlukeView Forms software and cable
- 80BK-A thermocouple probe
- CAT III 1000 V 10 A modular test leads (red and black)
- CAT II 1000 V 10 A modular measuring probes (red and black) and caps
- CAT III 1000 V 10 A crocodile clips (red and black)
- C280 carrying case to protect the instrument and store accessories
- Set of banana plugs
- TPAK magnet pendant for hands-free use
- Fluke ir3000 FC infrared connector for Fluke Connect communication
Product description:
- Achieve maximum productivity with the combination kit of the Fluke 287 and FlukeView Forms software.
- The Fluke 287 with its built-in data logger and TrendCapture feature lets you detect hard-to-find, intermittent faults by monitoring certain equipment functions while performing other work in the meantime.
- With the FlukeView Forms software, you can overlay data from six different meters or time periods to demonstrate cause-and-effect relationships or for condition monitoring purposes.
- Turn your data into clear graphs and tables, for professional reporting or for analysing individual readings or series of readings.The 287 is compatible with the Fluke ir3000 FC infrared connector, so you can share live readings on your iOS or Android device using the Fluke Connect Mobile App.
- The 287/FVF combination kit, which now includes the ir3000 FC connector, gives you a practical and affordable option of performing predictive maintenance.
Key features:
- NEW ? Now compatible with Fluke Connect Mobile App and all Fluke FC-enabled measuring instruments with optional ir3000 FC infrared connector (sold separately).
- NEW ? Instantly show your team what you see, with the ShareLive video call feature (Fluke Connect Mobile App and ir3000 FC wireless connector required).
- TrendCapture quickly graphically displays a logged data session to quickly determine if anomalies have occurred.
- Zooming in on trends offers unprecedented possibilities for viewing and analysing TrendCapture data; up to 14 times zoom in.
- The selectable AC filter (smoothing mode) allows a more stable reading to be displayed when the input signal changes rapidly or contains a lot of noise.
- Adjustable recording thresholds and Auto Hold by defining a percentage change for measurements at the start of a new event.
- Large 1/4 VGA display up to 50,000 counts, with white backlight.
- Multiple sets of measurement information can be displayed simultaneously.
- Log function with extended memory for independent monitoring of signals for a defined period of time.
- With the integrated TrendCapture function, you can view a graphical display of captured measurement values without a PC.
- Store up to as many as 15,000 recorded events.
Further features
- Internal help screens for measurement functions.
- You can store and name measured values on site and recall them later.
- Multilingual interface.
- Multiple logging sessions possible without downloading.
- DC base accuracy of 0.025%.
- AC voltage bandwidth 100 kHz.
- Real-time clock for automatic time stamping of stored measured values.
- True-RMS AC voltage and current for accurate measurements for complex signals or non-linear loads.
- AC bandwidth specified up to 100 kHz.
- Measures up to 10 A (20 A for 30 seconds).
- Capacitance range 100 mF.
- Temperature function.
- Relative mode for eliminating test lead resistance when measuring low-resistance or capacitance values.
- Peak recording for recording transients at rates up to 250 ?s.
- Premium measurement leads and crocodile clips included.
- Banana plugs included.
- With the FlukeView Forms software, you can document, store and analyse individual readings or a series of readings, then turn them into professional-looking documents.
- With the optional magnetic hanging clip, you can hang the meter so you can easily view it while keeping your hands free for work.
