Scope of delivery
- Internal Flash memory 2 GB
- PQ Analyze software on CD-ROM
- Ethernet cable for network connection (1)
- Crosslink Ethernet cable for direct connection to PC (1)
- Power supply cable (1)
- Operating manuals
- Carrying case
- Fast transient analysis up to 10 MHz
Product description
- Fully Class A compliant: perform tests in accordance with the strict international standard IEC 61000-4-30 Class A
- GPS time synchronisation: Accurately correlate data with events or data sets from other instruments
- Flexible and fully configurable thresholds and scaling factors: Allows the user to pinpoint specific problems by defining very detailed fault detection and recording criteria.
- Uninterrupted power supply (40 minutes): Never miss important events - additionally records the beginning and end of interruptions to identify the cause
- Registration waveforms of 10 MHz, 6000 Vpk: Delivers a detailed image of even the shortest event
- 2 GB data memory: Detailed, simultaneous recording of multiple power parameters for long periods of time
- Includes comprehensive software: Provides trend graphs to analyse the actual cause, and for statistical summaries, reporting and real-time data monitoring when used online
- Connect and ready: Quick to install with automatic sensor detection. The sensors are powered by the instrument. So you do not need batteries.
- Robust field design: Insulated housing and a solid-state design without rotating components allow reliable testing in almost all conditions
Meets Class A requirements for the most demanding mains power test

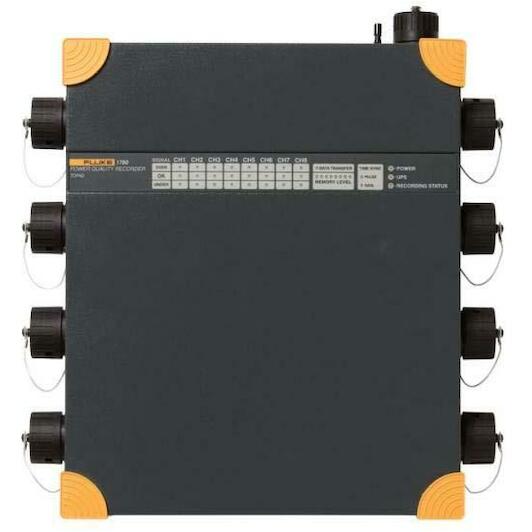

The Fluke 1760 three-phase Power Quality Recorder is fully compliant with IEC 61000-4-30 Class A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium- and high-voltage networks, this power quality tester offers the flexibility to customise thresholds, algorithms and measurement settings. The Fluke 1760 power quality recorder records the most comprehensive details on user-selected parameters.
Applications
- Comprehensive fault analysis - Perform rapid transient analysis and determine the actual cause of equipment failures, to prevent them in the future and for predictive maintenance. Fast transient analysis with a measurement range of6000 V allows recording of very short impulses, e.g. lightning strikes.
- Class A service quality compliance - Validating incoming mains power quality at the service input. Because the Fluke 1760 is Class A compliant, verification results are absolutely reliable.
- Correlate events at multiple locations - Using GPS time synchronisation, users can quickly determine where a fault first occurred, inside or outside the plant.

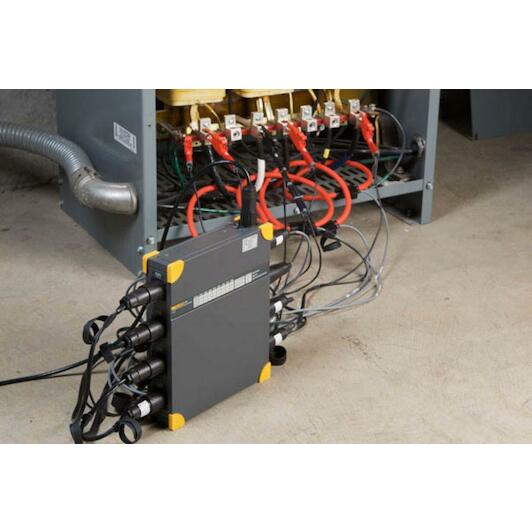

- Galvanic isolation and DC coupling - Allows complete measurements to be made on disparate power systems. For example, locating problems in UPS systems by simultaneously measuring battery voltage and delivered power.
- Assess mains power quality and power loads - Assess basic mains power quality to validate compatibility with critical systems before installation, and check electrical system capacity before adding loads.
