Advanced diagnostics with Fluke precision
- Two versatile tools combined: You combine a digital insulation tester with a full-featured multimeter in a single handheld unit for comprehensive maintenance tasks.
- Live circuit protection built-in: The unit prevents insulation testing automatically whenever a circuit voltage higher than 30V is detected during operation.
- Accurate variable drive testing: An integrated low-pass filter allows you to capture precise voltage and frequency measurements on variable frequency motor drives.

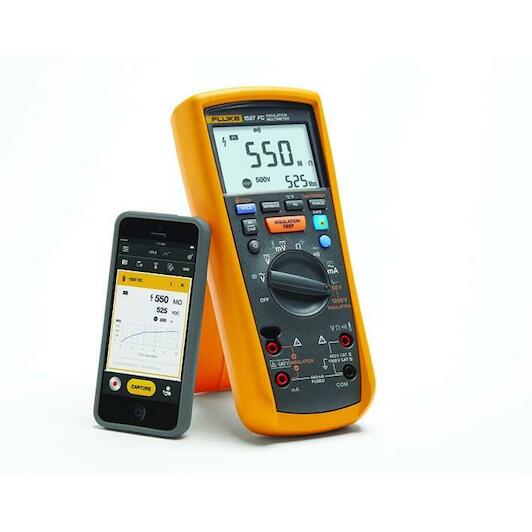

With the Fluke 1587 FC, you combine a full-featured True-RMS digital multimeter and a professional insulation tester in a single compact tool. This allows you to troubleshoot insulation breakdown in motors, generators, and switchgear without carrying multiple instruments. Featuring test voltages from 50 V to 1000 V and a range up to 2 GΩ, it delivers precise diagnostic results. The built-in low-pass filter enables accurate measurements on variable frequency motor drives, while live circuit detection above 30 V and cat III 1000 V / cat IV 600 V ratings ensure dependable protection. With the Fluke Connect app, you can easily log and track measurement trends wirelessly on your smartphone.
Product description:
- The high-performance 2-in-1 insulation DMM
- The Fluke 1587 FC insulation multimeters combine a digital insulation tester with a full-fledged digital true-RMS multimeter in one compact and portable device for optimum versatility in both troubleshooting and preventive maintenance.
- The Fluke 1587 FC insulation multimeter adds four powerful new diagnostic features with the Fluke Connect Measurements app:
- Timed PI/DAR ratio tests with TrendIt graphs identify moisture and contaminated insulation problems faster
- Memory storage via Fluke Connect, eliminating the need to write down results, reducing errors and saving data for later tracking over time
- Temperature compensation via the app for establishing accurate baselines and relevant historical comparisons
- Historical tracking of equipment and recording of trends reveals equipment deterioration over time and enables real-time on-site decisions with Fluke Connect Assets
- Product features
- Timed PI/DAR ratio tests
- Detection of live circuits prevents, for added user safety, insulation tests at voltages > 30 V
- Low-pass filter for frequency-controlled drives, for accurate measurements on motor drives
- Automatic discharge of capacitive voltages for additional user safety
- Insulation test (1587 FC: 0.01 MOhm to 2 GOhm)
- Insulation test voltages (1587 FC: 50 V, 100 V, 250 V, 500 V, 1000 V) for many applications
- AC/DC voltage, DC in millivolts, AC/DC in milliamps, resistance (Ohm), continuity
- Capacitance, diode test, temperature, min/max, frequency (Hz)
- Automatic switch-off for longer battery life
- Measurement category CAT III 1000 V, CAT IV 600 V
- Large backlit display
- Rugged carrying case allows you to carry everything you need for work
- Accessories included: remote probe, test leads and probes, alligator clips, type K thermocouple
- Compatible with the optional Fluke TPAK magnetic meter hang clip for convenient hands-free work
- 3-year standard warranty, extendable to 5 years by registering the product within 45 days of purchase
Key features:
- PI/DAR measurements with TrendIt graphs
- Memory storage via the Fluke Connect Measurements app
- Temperature compensation via the Fluke Connect Measurements app
- Low-pass filter for frequency controlled drives, for accurate measurements on motor drives
- Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
- Insulation test: 0.01 MOhm to 2.0 GOhm
- Automatic discharge of capacitive voltages
- Smoothed reading of insulation test values
- Frequency
- Capacitance
- Diode test
- Temperature
- Min/Max
- AC/DC voltage
- DC in millivolts
- AC/DC in milliamps
- Resistance (0.1 Ohm to 50 MOhm)
- Pass through
- Three-year warranty
- External probe, test leads, alligator clips
- Thermocouple type K
- Robust carrying case
- Automatic switch-off
