Product description:
- Now compatible with Fluke Connect Mobile App
- Evaluate trends, remove doubts

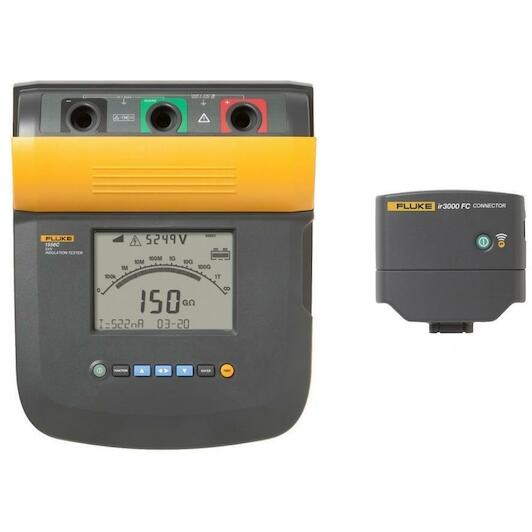

- The Fluke 1555 insulation resistance tester enables digital insulation testing up to 10 kV.
- This makes this instrument ideal for testing a wide variety of high-voltage equipment, including switchgear, motors, generators and cables.
- Fluke's insulation testers now cover the entire IEEE 43-2000 test voltage range, with a 3-year warranty, the longest in this class, and the CAT IV 600 V safety specification.
- With its measured value memory and PC interface, the 1555 is the perfect tool for preventive and predictive maintenance programmes, designed to detect potential faults before they actually occur.
- Built with Fluke Connect.
- View.
- Save.
- Share.

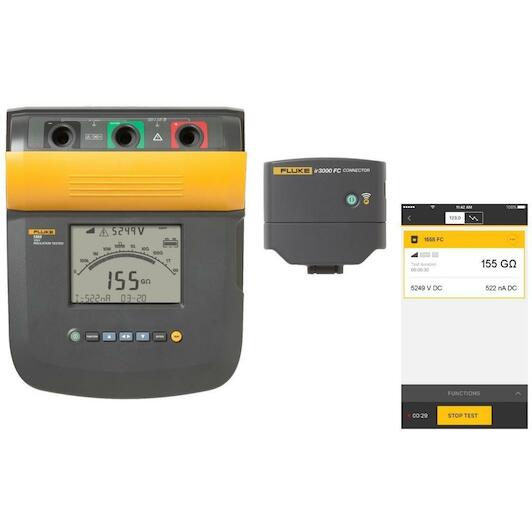

- The Fluke Connect Mobile App saves time and increases productivity when using your 1555 insulation tester.
- Record readings up to 15 metres away on your smartphone, then use the ShareLive video call feature to share readings in real time with team members anywhere in the world.
- Graph readings over time to establish baseline guidelines and record intermittent events.
- Add notes in written form and/or as spoken text while recording readings, images and notes directly in or copying from work orders.
Key features:
- Features include:
- Measuring voltages up to 10 kV
- Safety specification CAT III 1000 V, CAT IV 600 V
- A voltage warning signal lets the user know that voltage is present and displays voltage values up to 600 V AC or DC, for increased user safety
- Selectable test voltages in 50 V increments between 250 V and 1000 V and in 100 V increments above 1000 V
- Measurements can be stored in 99 memory locations, each assigned to a unique user-defined label for easy recall
- Long battery life allows the user to perform over 750 tests before recharging is required
- Automatic calculation of dielectric absorption and polarisation index without additional setting operations
- Protection system eliminates the effect of creeping current when measuring high resistances
- Large digital/analogue LCD display for easy reading
- Measurement of capacitance and leakage current
- Rise function for breakdown tests
- Resistance measurements up to 2 TOhm
- Timer setting up to 99 minutes for time-controlled tests
- 3-year warranty
