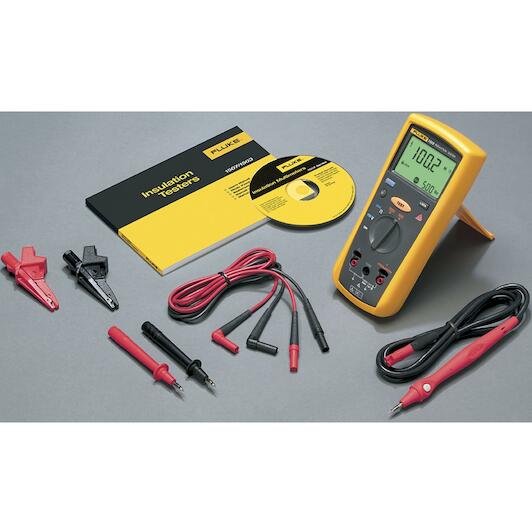

Scope of delivery
- Probe with remote control
- Measuring leads
- Measuring probes
- Alligator clips
- Holster
- User manual
Product description:

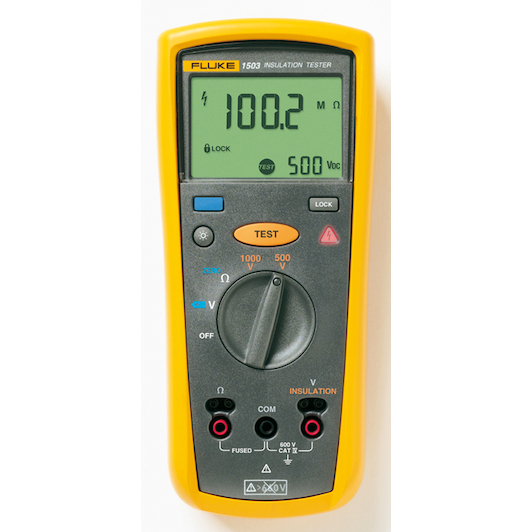

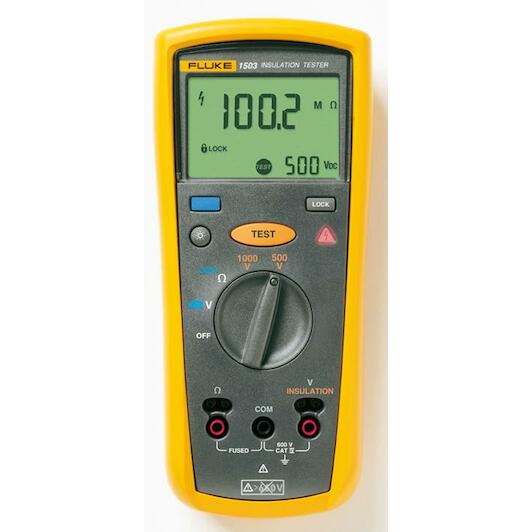

- The Fluke 1503 insulation tester is compact, robust, reliable and easy to use.
- Thanks to different test voltages, they are ideal for many troubleshooting, commissioning and preventive maintenance applications.
- Additional features, such as the remote probe of these instruments, save both time and money when performing tests.
Key features
- Performing repeated tests or tests in hard-to-reach places is easy with the remote probe.
- Detection of live circuits prevents, for added user safety, insulation testing at voltages > 30 V
- Automatic discharge of capacitive voltages for extra user safety
- AC/DC voltage: 0.1 V to 600 V
- Continuity test: 200 mA
- Resistance: 0.01 ? to 20.00 k?
- Longer battery life thanks to automatic switch-off
- Easy to read measured values thanks to large, illuminated display
- Overvoltage category CAT IV 600 V for additional user protection
- A remote probe, test leads, probes and crocodile clips are supplied with each tester
- Suitable for optional Fluke TPAK magnetic pendant system leaving your hands free for other work
- Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
- One year warranty
Insulation test range
- 0.1 M? to 2000 M?
Insulation test voltages
- 500 V, 1000 V
