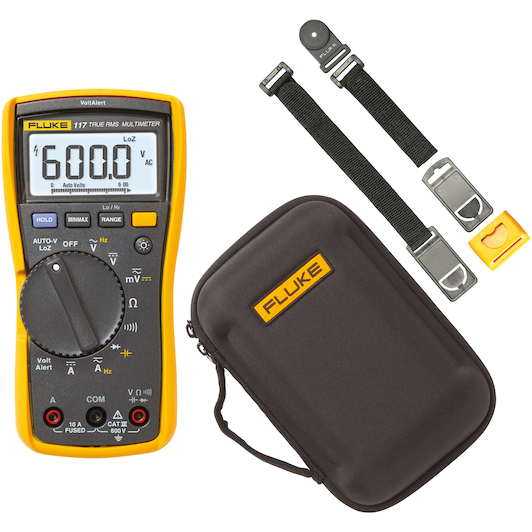

Scope of delivery
- 117 multimeter
- C11XT protective EVA tool bag
- TPAK magnetic hanging clip
Product description
- Multimeter with non-contact voltage detector for electricians
- Designed by electricians. Manufactured by Fluke.
- Compact True-RMS meter for commercial applications.
- The ideal meter for high-demand buildings such as commercial premises, hospitals and schools.
- Non-contact voltage detection function for faster work.
Key features
- VoltAlert technology for non-contact voltage detection
- AutoVolt automatic selection of AC/DC voltage
- Low input impedance: helps prevent erroneous readings due to phantom voltage
- Large display with white LED backlight for use in dimly lit environments
- True-rms for accurate measurements at non-linear loads
- Measures 20 A (momentary up to 30 seconds, 10 A continuous)
- Resistance, continuity, frequency and capacitance
- Provides Min/Max/Average for recording signal fluctuations
- Compact ergonomic design for one-handed operation.
- Suitable for the optional magnetic suspension system (ToolPak) for hands-free use
- Safety specification CAT III 600 V
Key features according to our expert
-
Max. voltage AC/DC: 600 V
-
Measurement temperature: No
-
Digital: Yes
-
Battery type: E
-
Low battery message: Yes
-
Automatic shut-off: Yes
-
With current clamp: No
-
Diode test: Yes
-
Max. current AC/DC: 10 A
-
Measurement Lo-Z: Yes
-
Continuity test: Yes
-
Measurement of noise: No
-
Measurement of electrical capacity: Yes
-
Measurement frequency: Yes
-
Measurement resistance: Yes
-
Current measurement: Yes
-
Measurement voltage: Yes
-
Max. electrical capacity: 9999 µF
-
Max. frequency: 100 kHz
-
Max. resistance: 40 MOhm
Specifications / All features
-
Brand:
FLUKE
-
03342477
-
EAN:
0195112129104
-
Supplier number:
FLUKE 6016671
- Max. voltage ac/dc
- 600 V
- Measurement temperature
- No
- Digital
- Yes
- Battery type
- E
- Low battery message
- Yes
- Automatic shut-off
- Yes
- With current clamp
- No
- Diode test
- Yes
- Max. current ac/dc
- 10 A
- Measurement lo-z
- Yes
- Continuity test
- Yes
- Measurement of noise
- No
- Measurement of electrical capacity
- Yes
- Measurement frequency
- Yes
- Measurement resistance
- Yes
- Current measurement
- Yes
- Measurement voltage
- Yes
- Max. electrical capacity
- 9999 µF
- Max. frequency
- 100 kHz
- Max. resistance
- 40 MOhm
