Product description
The installation-friendly internal thread anchor with screw for fixings in non-cracked concrete.

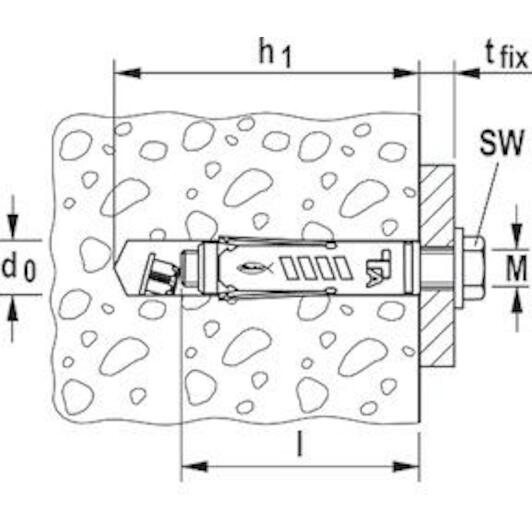

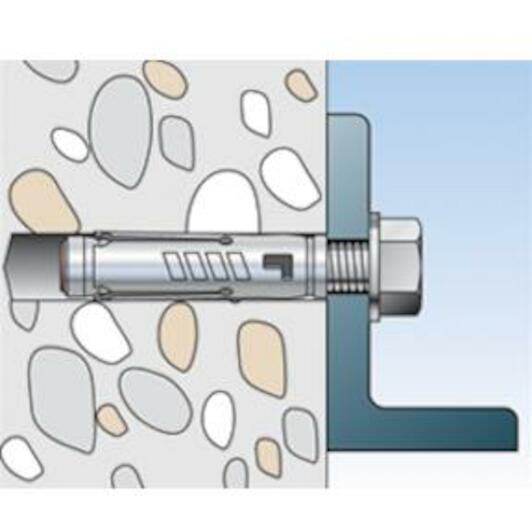

The fischer heavy-duty anchor TA M-S is an internal threaded anchor for pre-positioned installation made of zinc-plated steel. During installation the cone is pulled into the expansion sleeve and expands it against the hole wall. The plastic cover protects the thread from dirt. This ensures that it remains functional. The heavy-duty anchor is ideal for fixing fall protection devices, systems, and machines in non-cracked concrete.
- Simple assembly due to low setting energy
- Low axial and edge distances due to uniform load introduction
- Surface flush installation due to detachable screw connections
- ETA approval for non-cracked concrete
- The optimised geometry minimises setting energy and allows for use in extremely narrow spaces. This allows for user-friendly installation
- The three-part expansion sleeve creates even load distribution, thus allowing small edge and axial spacing. Thus the TA M is extremely flexible
- The metric internal thread allows to use standard screws or threaded rods for the ideal adaptation to suit the intended use
- The red plastic cap protects against soiling and thus ensures free-running of the thread
Suitable for

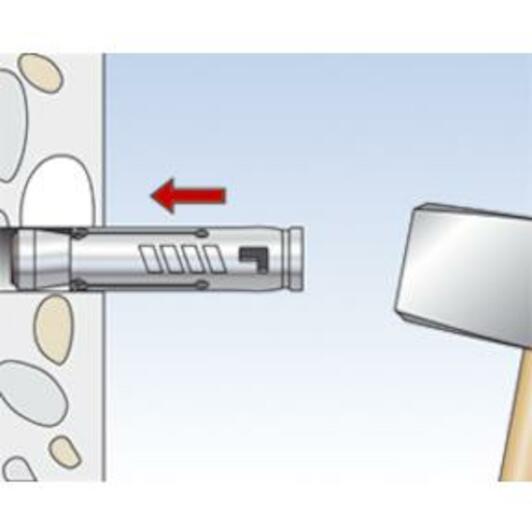

- The TAM is suitable for pre-positioned installation

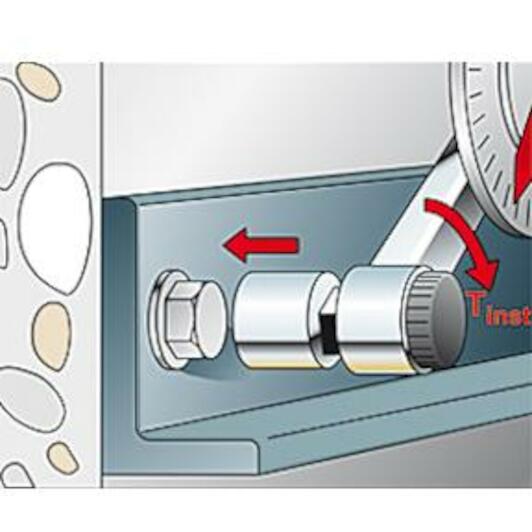

- When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall

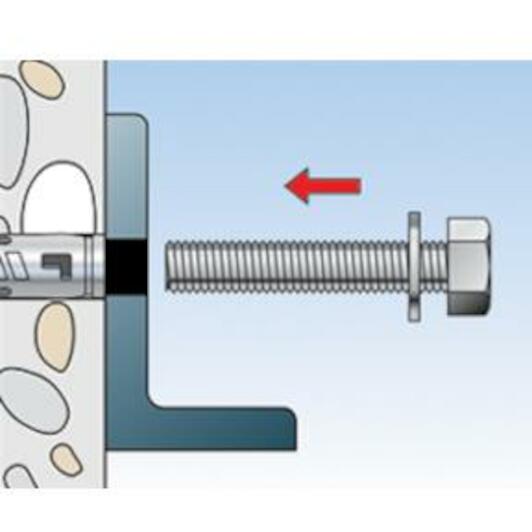

- For correct installation, it must be ensured that the pre-positioned anchor TA M can be supported on the attachment, or that the threaded rod is countered
Building materials
Approved for:
- Concrete C20/25 to C50/60, non-cracked
Also suitable for:
- Concrete C12/15
- Natural stone with dense structure
Application
- Steel constructions
- Handrails
- Consoles
- Ladders
- Cable trays
- Machines
- Staircases
- Gates
- Façades
- Stand-off installations
