Product description
The cost-effective hammerset anchor without approval for multiple fixings in non-structural systems

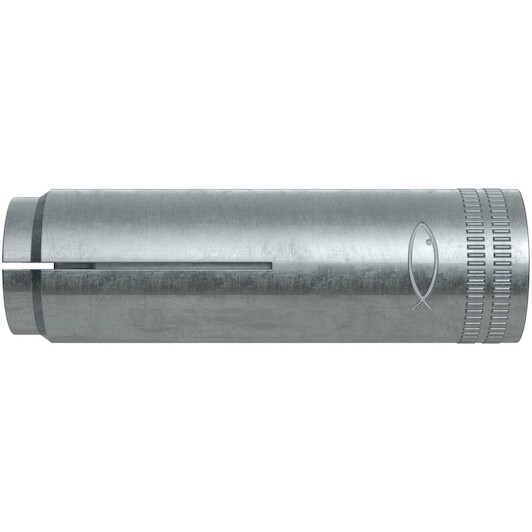

The fischer hammerset anchor EA N is an internal thread anchor made from zinc-plated and stainless steel. The hammerset anchor is ideal for the multiple fixation of non-structural systems that do not require approved anchorage. The assembly of the internal thread anchor is extremely cost-effective thanks to the low embedment depth, fast hammerset installation, and direction-controlled screwing process. The EA N is mounted with the hammer flush to the base material. With the setting tool EA-ST, the sleeve is expanded and braced against the drill hole wall through the driving in of the internal pin. No torque should be applied to the screw to enable correct expansion.
- Simple hammerset installation
- The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use
- The hand setting tool EA-ST facilitates fast installation
- Simple hammerset installation
- The metric internal thread allows for the use of standard screws or threaded rods for ideal adaptation in line with the intended use
- The hand setting tool EA-ST facilitates fast installation
Suitable for
- The EA N is suitable for pre-positioned installation

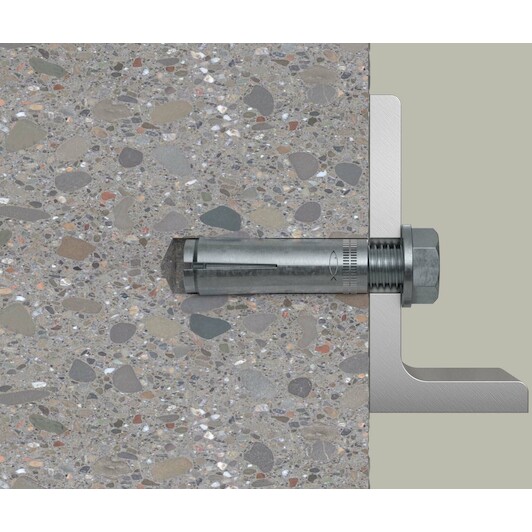

- Position the hammerset anchor in the drill hole and drive in flush to the surface of the base material using the hammer
- The setting tool EA-ST is then used to expand the sleeve against the drill hole wall by driving in the internal pin
- The setting tools must sit on the edge of the anchor to ensure correct expansion
Building materials
- Concrete C12/15, non-cracked
- Concrete C20/25, non-cracked
Application

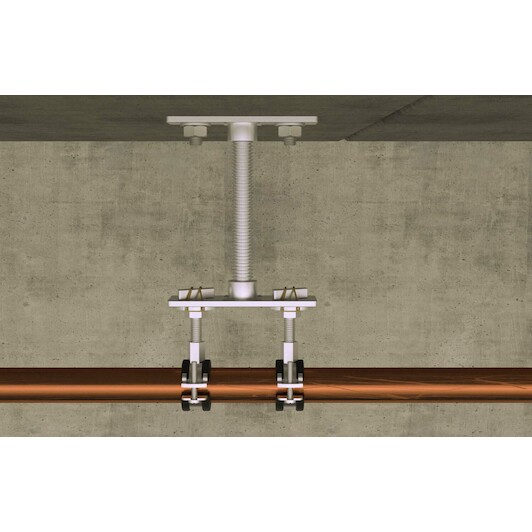

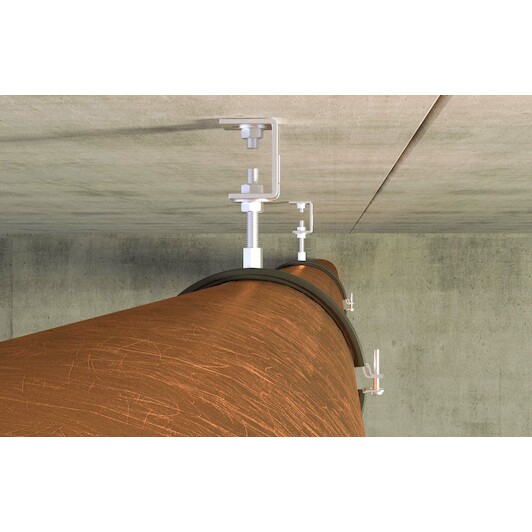

- Pipelines
- Cable trays
- Consoles
