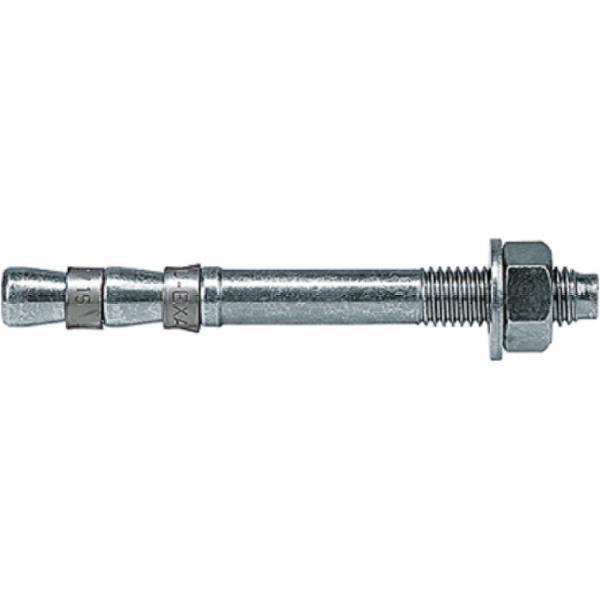

FISCHER 97742 express anchor EXA 12/5 (12x80) electrolytically galvanised steel

Name: FISCHER 97742 express anchor EXA 12/5 (12x80) electrolytically galvanised steel
Brand: FISCHER
SKU: 87051188
Price: 2.67 EUR
Availability: PreOrder

This article is not available

Successor to this product

FISCHER 564586 Piercing anchor FAZ II Plus 12/10 EV...

View product

Product information

Product description:

The installation-friendly fixing for non-cracked concrete.

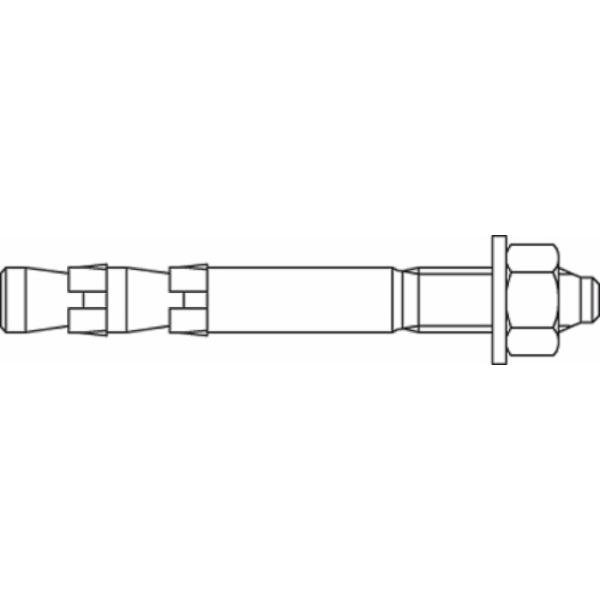

The fischer bolt anchor EXA is a particularly installation-friendly steel anchor for anchorings in non-cracked concrete.
In the zinc-plated steel design, the bolt anchor is suitable for the anchoring of railings, cantilevers, and cable trays inside.
The two expansion clips increase the expansion range and reduce the torque slippage.
This saves time during the installation process.
The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.

Top Features

The bolt anchor with the two expansion clips: fast, simple fixing.
Less assembly time due to lower torque slippage.
When hammering in, the drive-in pin protects the thread from damage. This saves time during installation and removal.

Advantages

The two clips increase the expansion range and reduce the torque slippage. This allows for a fast and simple installation.
The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.
The short version EXA K*) can be used in thinner components due to the low anchorage depth.

Applications

Steel constructions

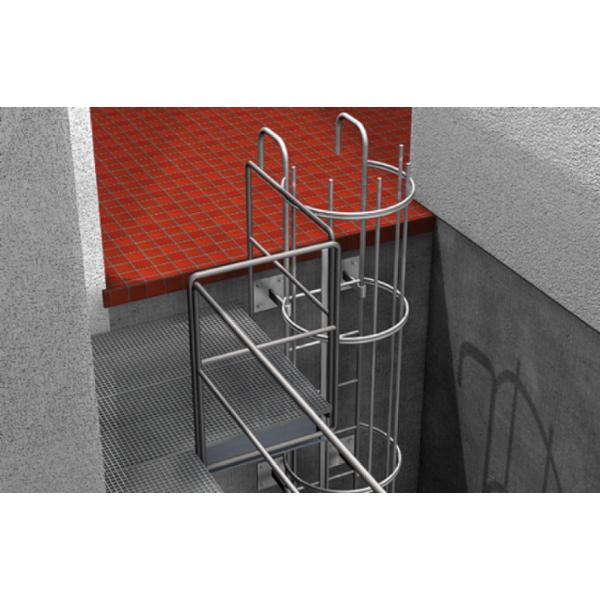

Guard rails
Consoles
Ladders
Cable trays

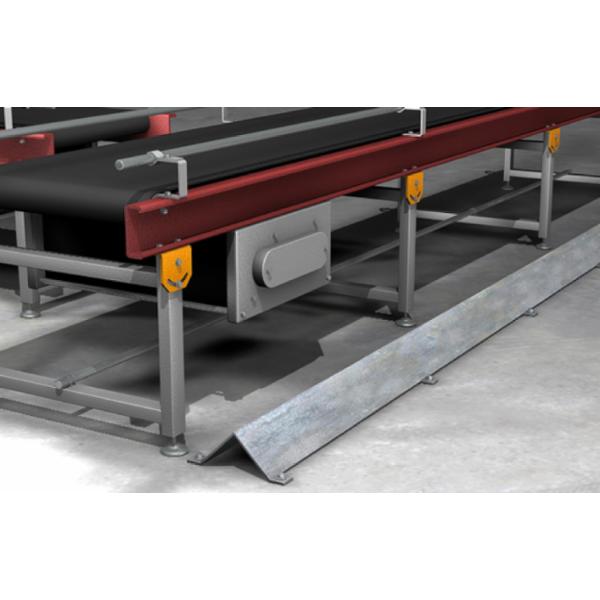

Machines
Staircases
Gates
Façades

Versions

Zinc-plated steel

Building materials

Approved for:
- Concrete C20/25 to C50/60, non-cracked
Also suitable for:
- Concrete C12/15
- Natural stone with dense structure

Functioning

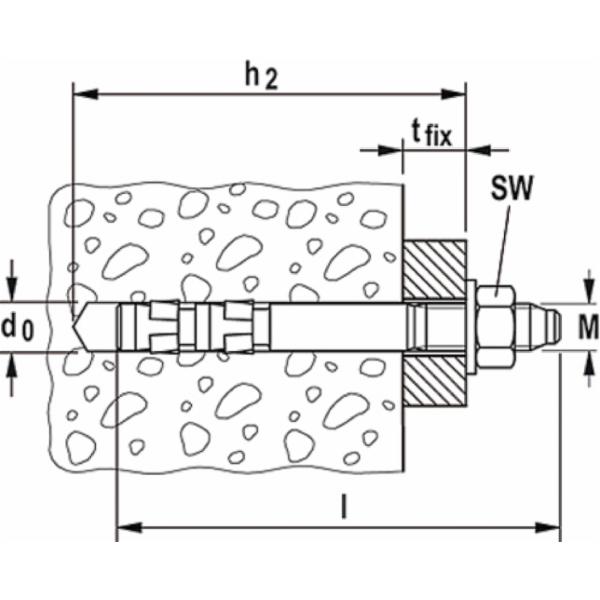

The EXA is suitable for pre-positioned and push-through installation.
Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
When applying the torque, the cone bolt is pulled into the expansion clips and expands these against the drill hole wall.
In the case of series installation, we recommend using the FABS bolt anchor setting tool.
