Product description:
The installation-friendly fixing for non-cracked concrete.

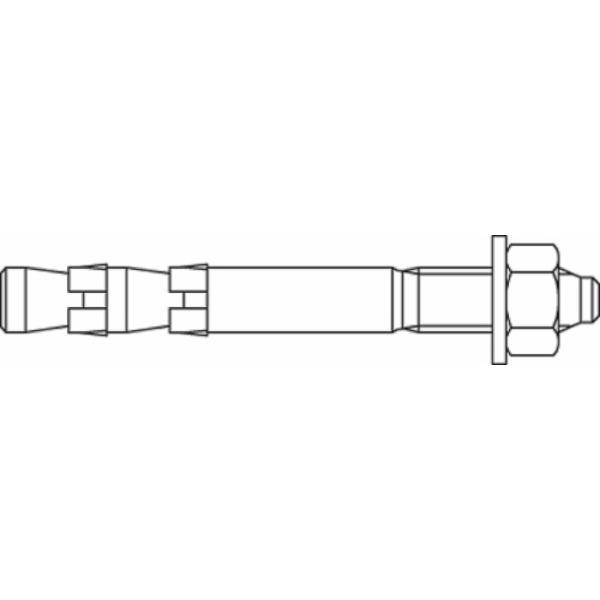

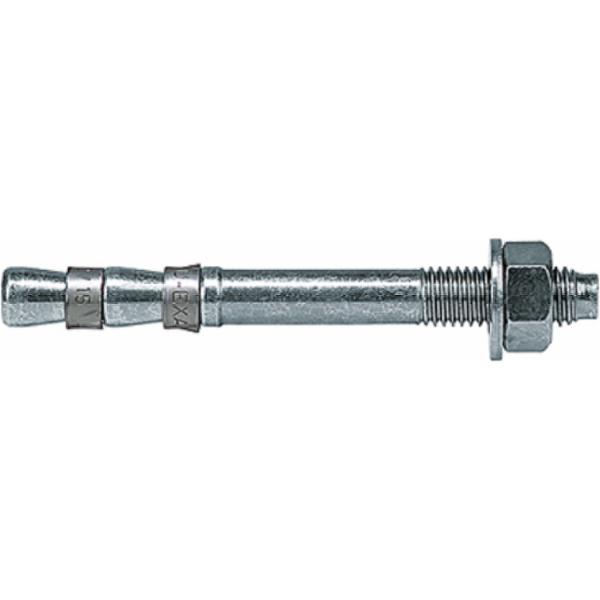

- The fischer bolt anchor EXA is a particularly installation-friendly steel anchor for anchorings in non-cracked concrete.
- In the zinc-plated steel design, the bolt anchor is suitable for the anchoring of railings, cantilevers, and cable trays inside.
- The two expansion clips increase the expansion range and reduce the torque slippage.
- This saves time during the installation process.
- The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.
Top Features
- The bolt anchor with the two expansion clips: fast, simple fixing.
- Less assembly time due to lower torque slippage.
- When hammering in, the drive-in pin protects the thread from damage. This saves time during installation and removal.
Advantages
- The two clips increase the expansion range and reduce the torque slippage. This allows for a fast and simple installation.
- The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.
- The short version EXA K*) can be used in thinner components due to the low anchorage depth.
Applications
- Steel constructions
- Guard rails
- Consoles
- Ladders
- Cable trays
- Machines
- Staircases
- Gates
- Façades
Versions
Building materials
- Approved for:
- Concrete C20/25 to C50/60, non-cracked
- Also suitable for:
- Concrete C12/15
- Natural stone with dense structure
Functioning

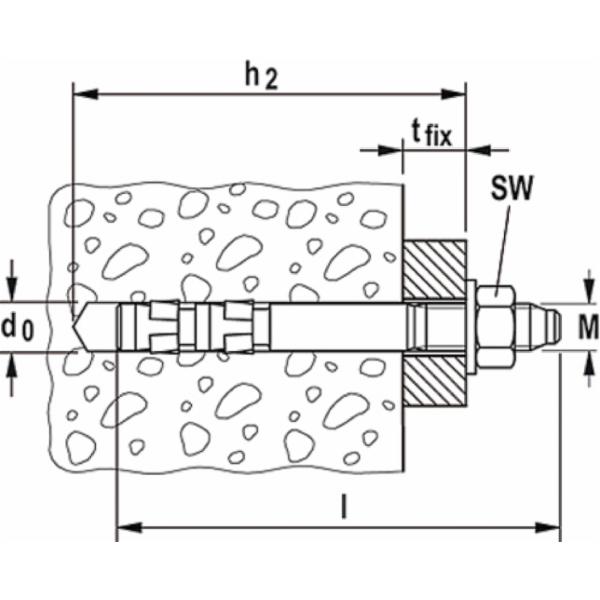

- The EXA is suitable for pre-positioned and push-through installation.
- Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
- When applying the torque, the cone bolt is pulled into the expansion clips and expands these against the drill hole wall.
- In the case of series installation, we recommend using the FABS bolt anchor setting tool.
