FISCHER

FISCHER 60724 zykon anchor FZA 22 x 100 M16/60 electrolytically galvanised

24.82 tax incl.
€20.51 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

The minimum purchase order quantity for the product is 10.

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

The fixing system with the highest safety in cracked concrete.

The fischer ZYKON bolt anchor is an anchor made of zinc-plated steel. The special drill bit FZUB is used to create the undercut drill hole in a single work step. The undercut anchor is set in the pre-positioned installation. The expansion sleeve is driven above the cone with the setting tool FZE Plus and fills the undercut drill hole with a positive fit. The fischer ZYKON bolt anchor FZA is ideal for fixing steel constructions, railings, and machines within internal areas in cracked concrete.

  • Maximum safety due to a positive fit connection
  • Low axial and edge distances due to expansion pressure-free installation
  • Fast installation, no exchanging tools. This saves time and costs
  • Power-saving installation with low setting energy
  • ETA approval for cracked concrete and fire resistance class R 120
  • The special ZYKON undercut technology allows for a positive fit connection and ensures maximum safety, even in large cracks
  • The almost expansion-free installation of the anchor allows small edge distances and axial spacing, and thereby enables flexible use
  • The FZUB special drill allows for a fast installation by creating the undercut without having to change tools
  • The drill hole geometry allows for a very low setting energy, thus reducing the energy required for installation

Suitable for

  • The FZA is suitable for pre-positioned installation
  • The undercut drill hole is created using the special FZUB drill
  • Once the anchor has been placed in the drill hole, the expansion sleeve is driven over the cone using the FZE Plus setting tool, and the undercut drill hole is filled with a positive fit

Building materials

Approved for:

  • Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

  • Concrete C12/15
  • Natural stone with dense structure

Application

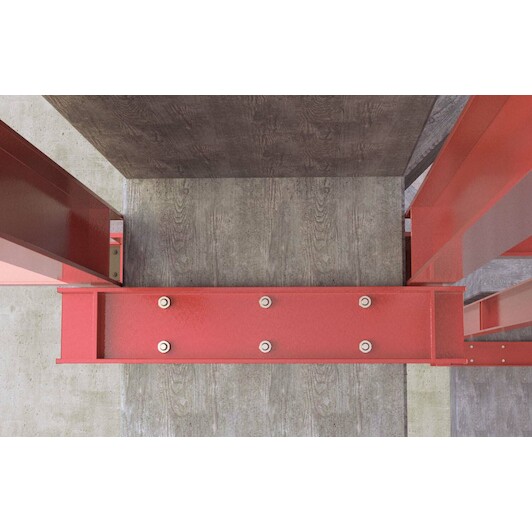

  • Steelwork constructions
  • Guard rails
  • Consoles
  • Ladders

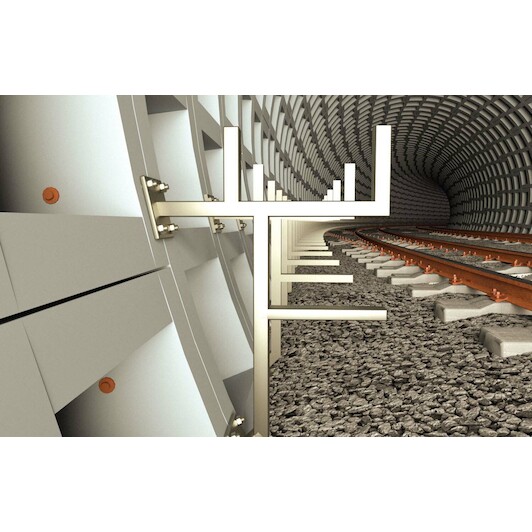

  • Cable trays
  • Machines
  • Staircases
  • Gates
  • Façades
Key features according to our expert
  • Drilling diameter: 22 mm
  • Effective length: 60 mm
  • Overall length: 184 mm
  • Material (bolt): Steel
  • Surface treatment (bolt): Zinc plated
  • Thread dimension: M16
Specifications / All features
  • Brand: FISCHER
  • EAN: 4006209607244
  • Supplier number: FISCHER 60724
Drilling diameter
22 mm
Effective length
60 mm
Overall length
184 mm
Material (bolt)
Steel
Surface treatment (bolt)
Zinc plated
Thread dimension
M16
Anchoring depth
100 mm
Seismic approval
C1 / C2
Required drill fzub
22 x 100
Max. attachment thickness
60 mm
Remote mounting
No
Thread size (metric)
16 mm
Front mounting
Yes
Pad (outer diameter x thickness)
30 x 3 mm
Pierce fitting
No
Material
electrolytically galvanised steel
Drill diameter
22 mm
Anchor length
184 mm
Key width
24 mm
Wire
M16
Useful length
60 mm
Mounting aid required
FZE 22 plus
