Product description
The spacing screw for flexible positioning and alignment of wooden fixtures

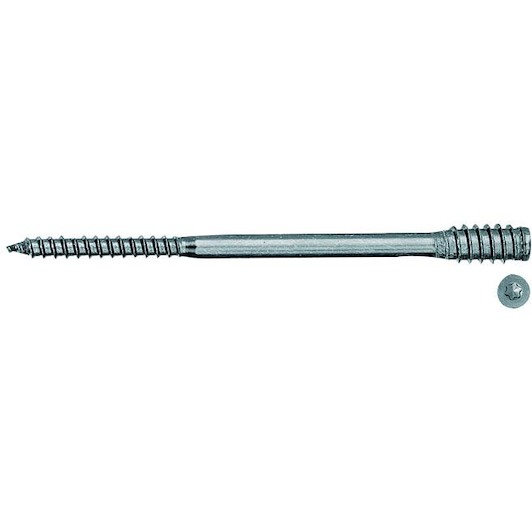

The fischer spacing screw ASL is a special screw made of zinc-plated steel with two coordinated threads at the same pitch, allowing for precise and time-saving stand-off installation. The special screw is used in through-type installation. When driving in the screw, the external thread cuts into the pre-drilled fixture, and fixes it. If the screw is driven in at an angle of 15 - 30° then higher shear loads can be carried. The fischer spacing screw ASL is ideal for fixing timber window and door frames, cladding, and sub-constructions without plugs in wood and wood materials.
- Exact mounting even with attachments mounted at an angle
- Simple stand-off installation with two threads with the same pitch
- Fixing in solid building materials with fischer expansion plug SX Plus and in hollow building materials with fischer universal plug UX
- Flexible usage in wooden materials and wooden panels, as well as in solid mineral building materials and hollow mineral building materials
- The coordinated threads with the same pitch allow for the pin-point positioning and alignment of the fixture, which can even be mounted at an angle to the screw. This allows for an exact and flexible fixing

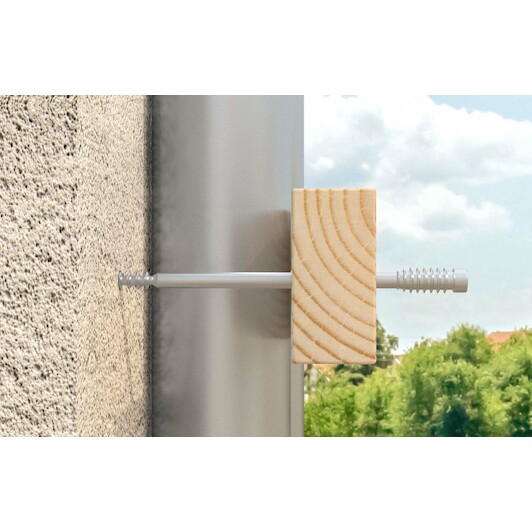

- During the installation, the fixture is not pulled onto the substrate, instead it is brought directly to the desired distance and position. This allows for a simple and exact installation
- When combined with SX Plus 8 and UX 8 plugs, it can be used in almost all wall materials, guaranteeing a secure fixing
Suitable for
- The ASL is suitable for push-through installation
- Pre-drill the fixture at the desired angle in order to achieve the correct positioning and alignment
- When screwing in the screw, the external thread cuts into the pre-drilled fixture, and fixes it into the stipulated position

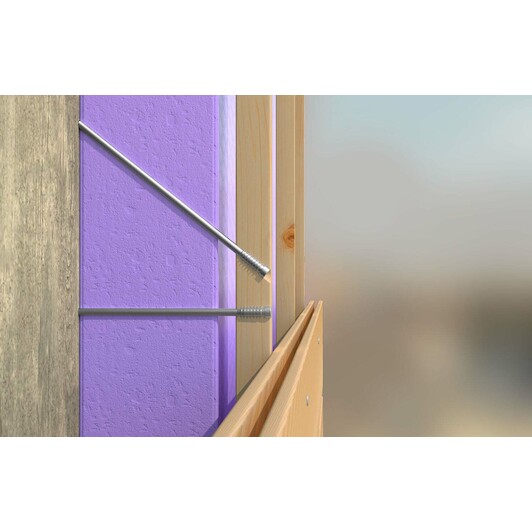

- The angled position of the screws (15° - 30°) allows high shear loads to be supported
Building materials
- Without plug: suitable for wooden materials and wooden panels
- With SX Plus or UX pluall concrete and masonry materials
Application
- Window frames
- Door frames
- Squared timbers
- Claddings
- Substructures made of wood
