Product description
With large washer. For highest demands. Powerful and flexible.

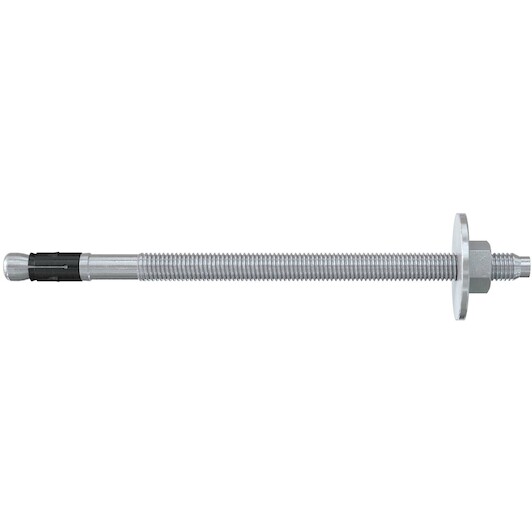

The fischer bolt anchor FAZ II Plus GS with a large washer is the steel anchor for the most demanding requirements. Heavy loads are fixed into cracked concrete with the zinc-plated steel anchor. Due to the variable anchorage depths and simple mounting, the FAZ II Plus GS can be used in a particularly flexible manner. The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties.
- Pre-assembled washer for components with slots. This simplifies alignment and saves time during installation
- Quick and easy assembly without the need for drill hole cleaning (M8-M24)
- Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs
- Highest durability over a service life of 120 years is confirmed by the external test certificate of the FAZ II Plus (M10-M16)
- Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD
- Millimeter accurate adjustment to the loads due to the variable anchoring depths
- The FAZ II Plus GS are suitable for fixing steel fixtures with long holes thanks to the special washer, and help to reduce installation effort
- The significantly larger outer diameter of the washers for FAZ II Plus 16 GS ensures a larger supporting surface, and as such allows for use in wood construction
- Quick and easier assembly without the need for drill hole cleaning (M8-M24)
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use
- With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire
- An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16)
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads
Suitable for
- The FAZ II Plus GS is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions
- When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall
- The anchor is set in line with the approval once the preset installation torque is achieved
Building materials
Approved for:
- Beton C20/25 bis C50/60, gerissen und ungerissen
Also suitable for:
- Concrete C12/15 (classification available)
- Concrete C80/95 (classification available)
- Steel fiber concrete (classification available)
- Solid sand-lime brick (classification available)
Application

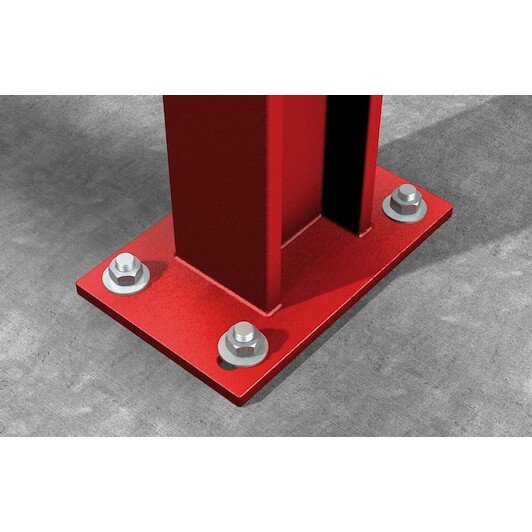

- Anchor plates with slotted holes

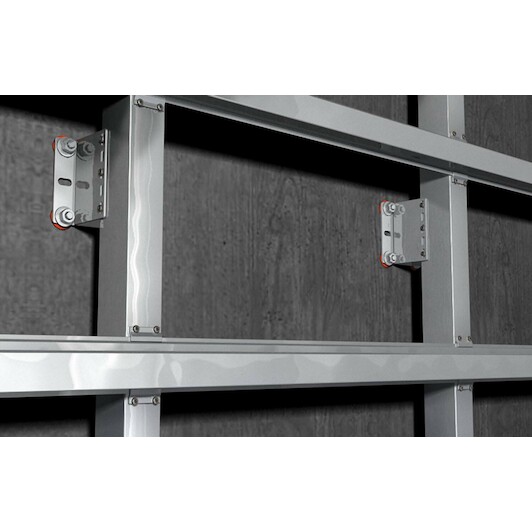

- Façade sub-structures with slotted holes

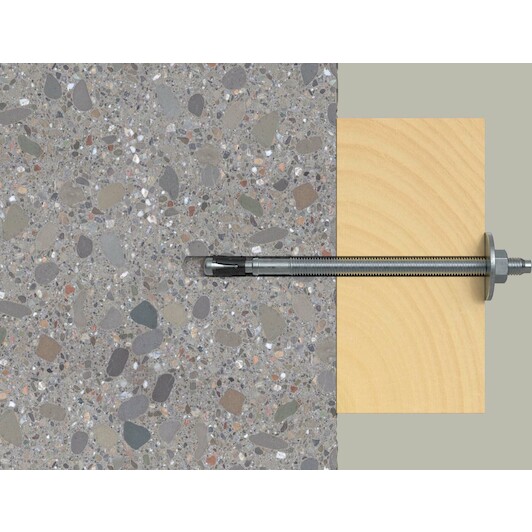

- Timber constructions
- Tension anchor
- Anchoring of wooden beams
