Product description
For highest demands. Powerful and flexible

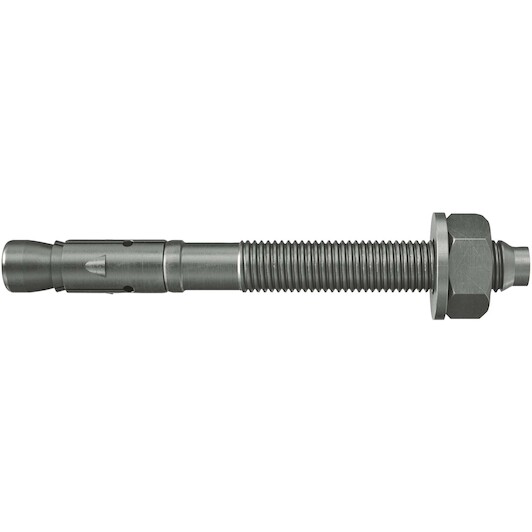

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands, now with even higher tensile strengths. Heavy loads can be secured in cracked concrete using the steel anchor. The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.
- Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs
- Stainless steel: maximum safety for outdoor use
- Millimeter accurate adjustment to the loads due to the variable anchoring depths
- The first bolt anchor M6 with ETA evaluation option 1: for safe approved anchorages
- The tried-and-tested expansion clip ensures highest load capacity even with size M6
- Quick and easier assembly without the need for drill hole cleaning (M8-M24)
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use
- With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required
- The new ETA confirms the use of the FAZ II Plus for dynamic loads for diameters M16-M24
- The fast installation process of the FAZ II Plus provides an efficient fixing solution for dynamic applications with low load cycles (M16-24) with an immediately loadable fixing point
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire
- An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16)
- The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads
- The first bolt anchor M6 with ETA evaluation option 1 ensures a safe and approved anchorage
Suitable for
- The FAZ II Plus is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread

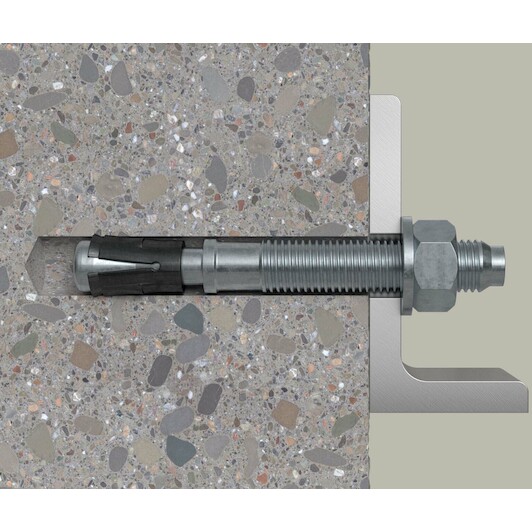

- When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall
- The anchor is set in line with the approval once the preset installation torque is achieved
- In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools
- In case of seismic demands, the annular gap can be filled using the filling disc FFD
- For dynamic loads, an additional "dynamic set" is used, which is filled with injection mortar (compressive strength >= 50 N/mm² e. g. : FIS V Plus, FIS EM Plus, FIS HB or FIS SB) after installation
Building materials
Approved for:
- Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
- Concrete C12/15 (classification available)
- Concrete C80/95 (classification available)
- Steel fiber concrete (classification available)
- Solid sand-lime brick (classification available)
Application
- Steel constructions

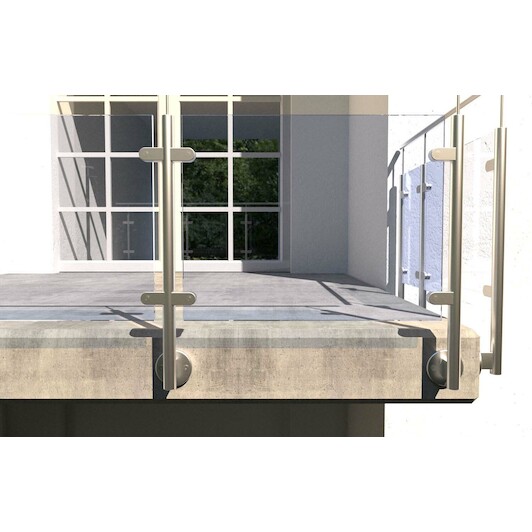

- Guard rails
- Consoles
- Tunnels
- Lifts
- Lifting platforms

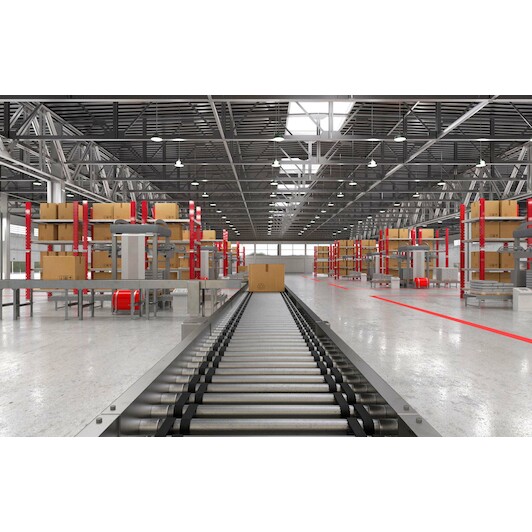

- Conveyor belts
- Pumps
- Ladders
- Cable trays
- Machines
- Staircases
- Façades
- Timber constructions
